• Guaranteed On-Resistance

  48Ω (TYP) with +5V Supply

• Guaranteed On-Resistance Match Between Channels

• Low Off-Leakage Current 1nA (TYP) at +25℃

• Low On-Leakage Current 1nA (TYP) at +25℃

• Optimized Rise Time and Fall Time of A, B Control Pins

  to Reduce Clock Feedthrough Effect

• 2.5V to 5.5V Single-Supply Operation

• 1.8V Logic Compatible

• Low Distortion: 0.7% (RL = 600Ω, f = 20Hz to 20kHz)

• High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)

• Low Crosstalk: -110dB (f = 1MHz)

• -40℃ to +85℃ Operating Temperature Range

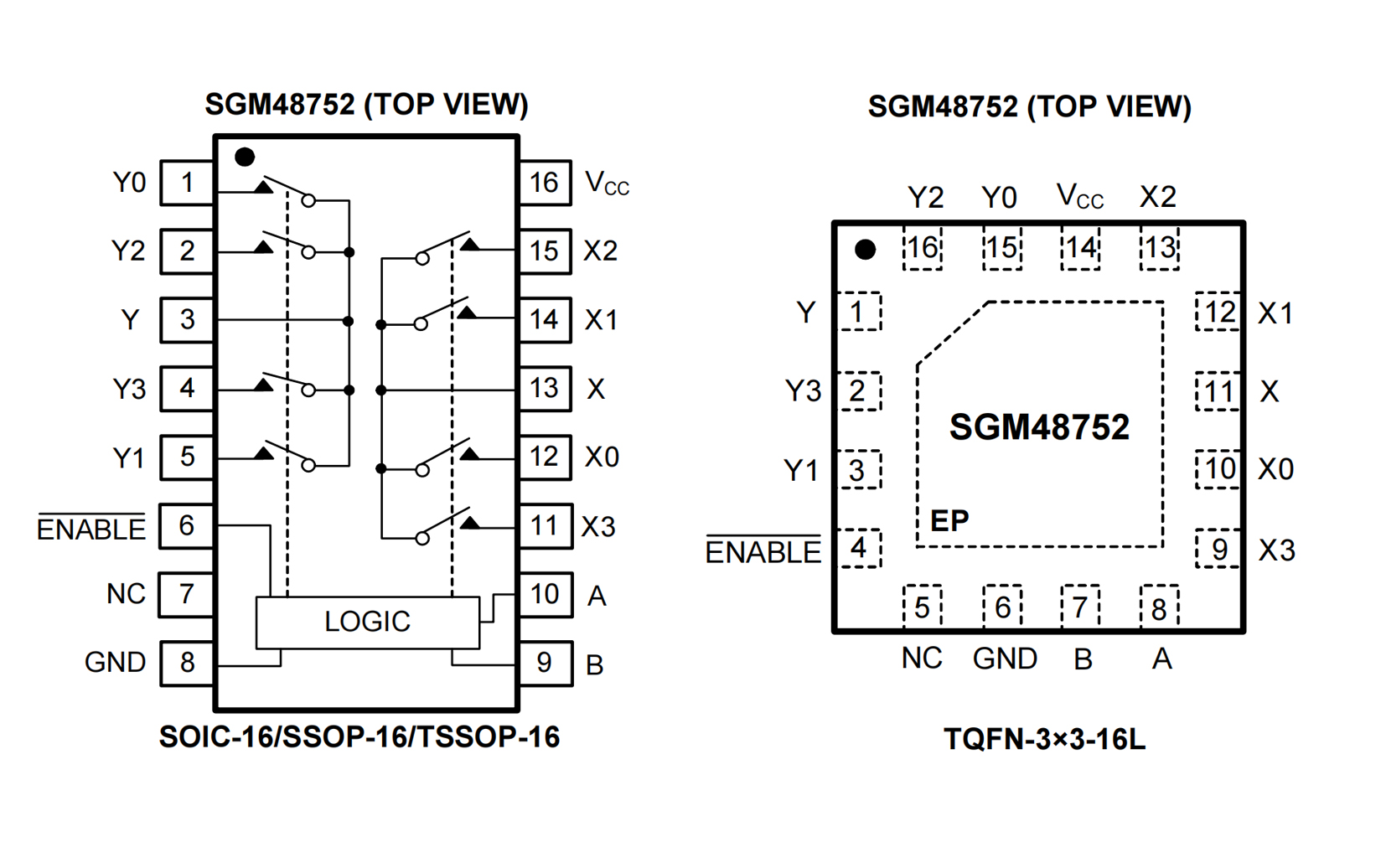

• Available in Green SOIC-16, SSOP-16, TSSOP-16 and

  TQFN-3×3-16L Packages

The SGM48752 is a CMOS analog IC configured as two 4-channel multiplexers. This CMOS device can operate from 2.5V to 5.5V single supplies. Each switch can handle rail-to-rail analog signals. The off-leakage current is only 1nA (TYP) at +25℃.

All digital inputs can support 1.8V logic control I/O.

The SGM48752 is available in Green SOIC-16, SSOP-16, TSSOP-16 and TQFN-3×3-16L packages. It operates over an ambient temperature range of -40℃ to +85℃.
