16-Bit, Serial Input, Voltage-Output Digital-to-Analog Converter.
SGM5353-16
SGM5353-16.pdf
SGM5353-16.pdf
No.14057
FEATURES
• 16-Bit DAC, Monotonicity Guaranteed by Design
• Single-Supply Operation: 3V and 5V
• Settling Time: 1.5μs (TYP)
• Support Unbuffered Voltage-Output Capability
• Power-On Reset to Zero-Scale
• Low Power Consumption: 0.39mW (TYP)
• Low Glitch Impulse: 1.2nV-s
• SPI-Compatible Serial Interface
• Available in a Green SOIC-8 Package
DESCRIPTION
The SGM5353-16 is a 16-bit, single channel, serial input, voltage-output DAC. It operates from a 2.7V to 5.5V supply. The DAC output range is from 0V to VREF.
The SGM5353-16 output is monotonic and is 1LSB integral nonlinearity (INL) in the whole working temperature range.
The SGM5353-16 features a low noise and fast setting time output (setting to 0.5LSB of full-scale output within 1.5μs).
The SGM5353-16 uses a 3-wire serial SPI-compatible interface.
The SGM5353-16 is available in a Green SOIC-8 package. It operates over an ambient temperature range of -40℃ to +125℃.

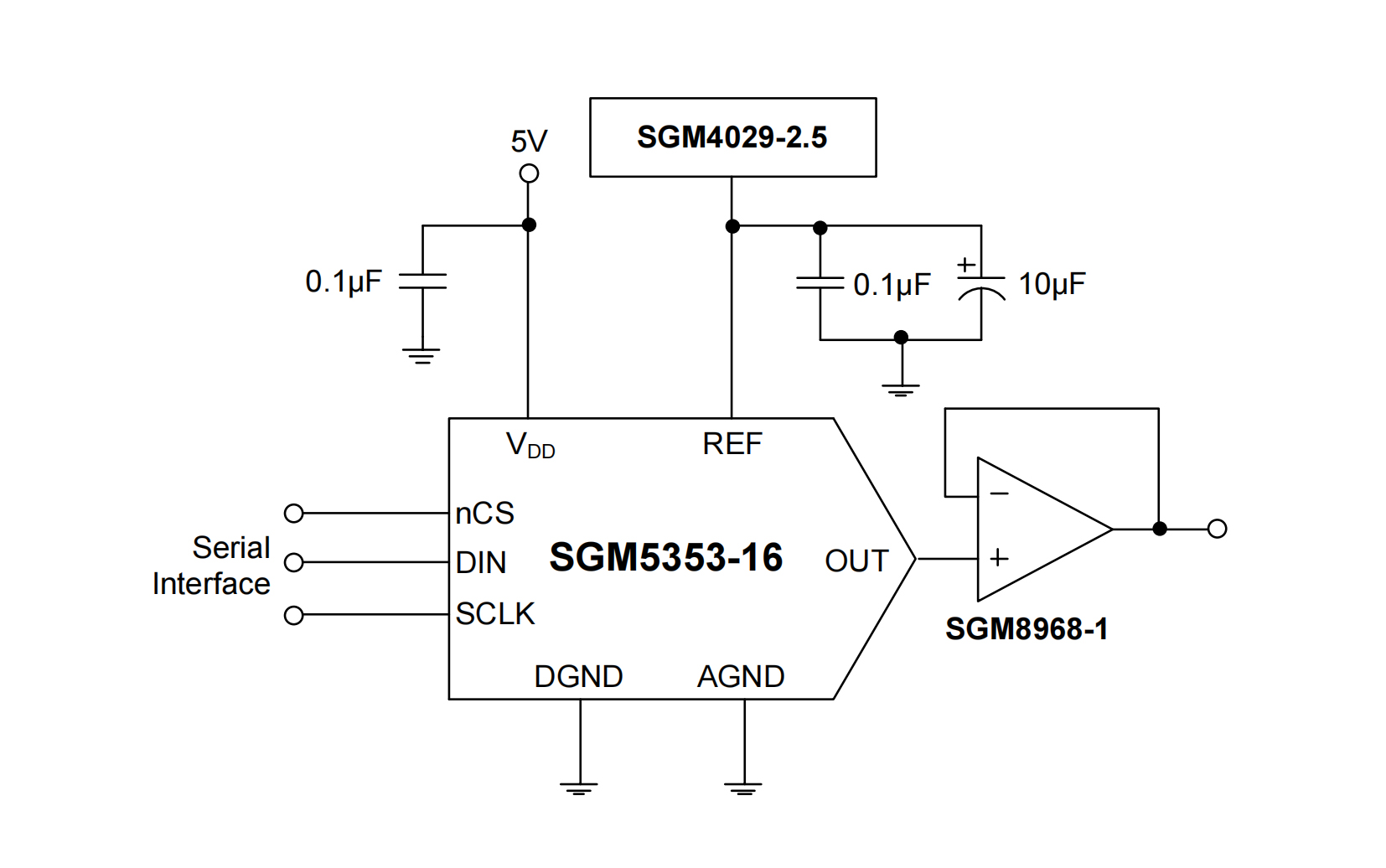

APPLICATION CIRCUIT

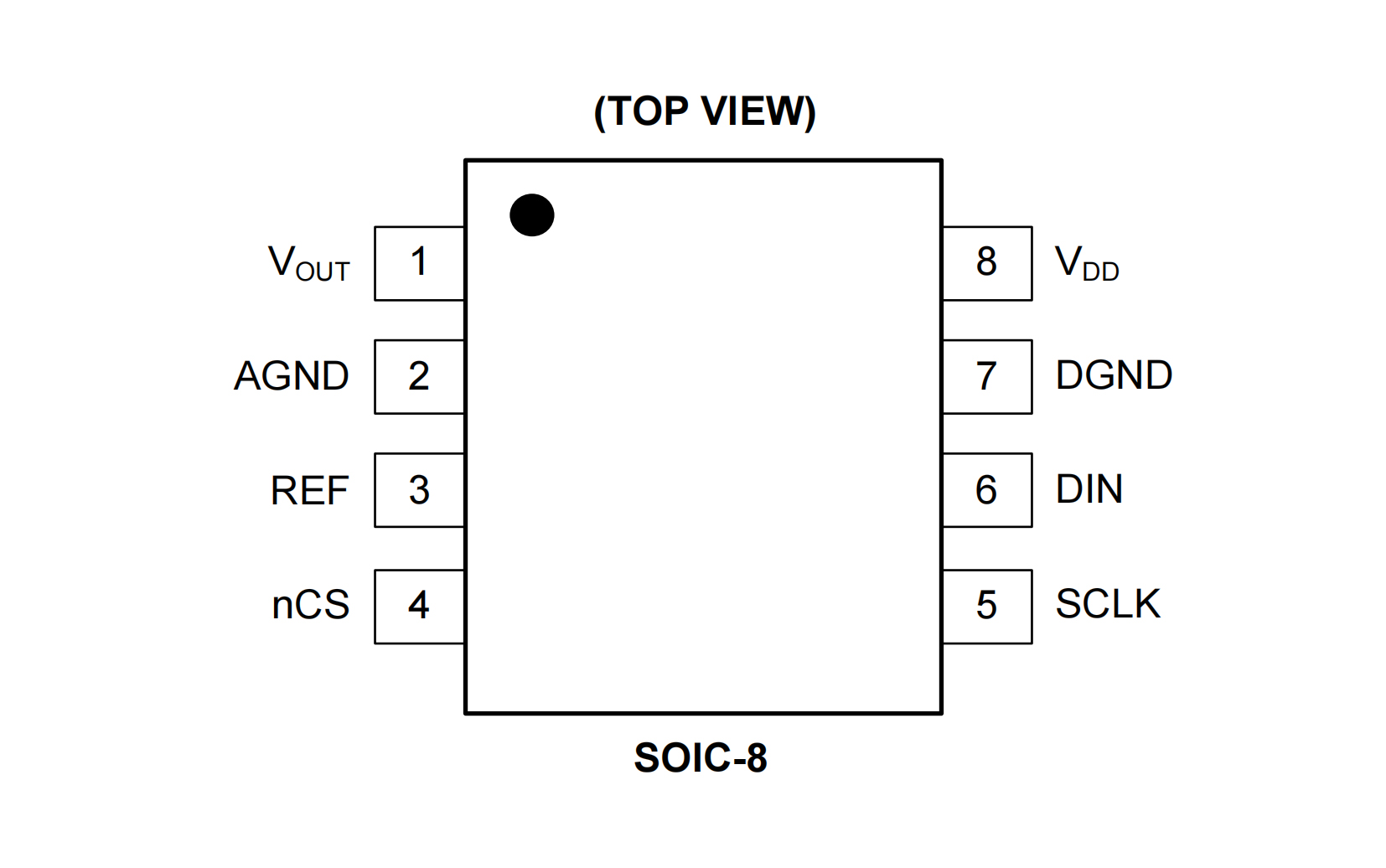

PIN CONFIGUTION
