● Low Voltage Operation: 1.8V to 5.5V

● Low On Capacitance: 12pF

● Low On Resistance: 12Ω

● High -3dB Bandwidth: 400MHz

● Rail-to-Rail Input and Output Operation

● High Off-Isolation: -75dB at 1MHz

● Low Crosstalk: -80dB at 1MHz

● Power Supply Current: < 10μA

● TTL/CMOS Compatible

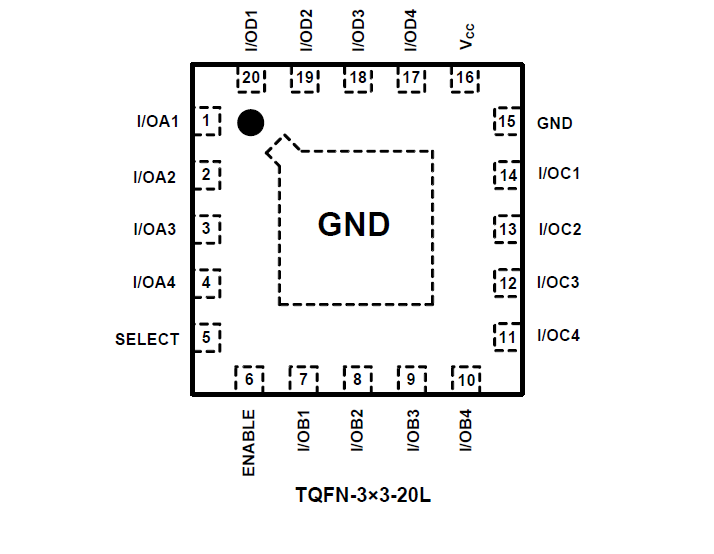

● Available in Green TQFN-3×3-20L Package

● Extended Industrial Temperature Range: -40℃ to +85℃

The SGM6504 is a high-speed, quad, 2×2 crosspoint switch which is designed to operate from a single 1.8V to 5.5V power supply. It features high-bandwidth (400MHz).

SGM6504 is available in Green TQFN-3×3-20L package.
