● Voltage Operation: 1.8V to 4.2V

● Low On-Resistance: 4Ω (TYP) at 4.2V

● Low On-Resistance Flatness

● -3dB Bandwidth: 150MHz

● Fast Switching Times (+4.2V)

   tON 17ns

   tOFF 9ns

● Low Crosstalk: -92dB at 10MHz

● Rail-to-Rail Input and Output Operation

● Typical Power Consumption (< 0.01μW)

● TTL/CMOS Compatible

● Break-Before-Make Switching

● Extended Industrial Temperature Range: -40℃ to +85℃

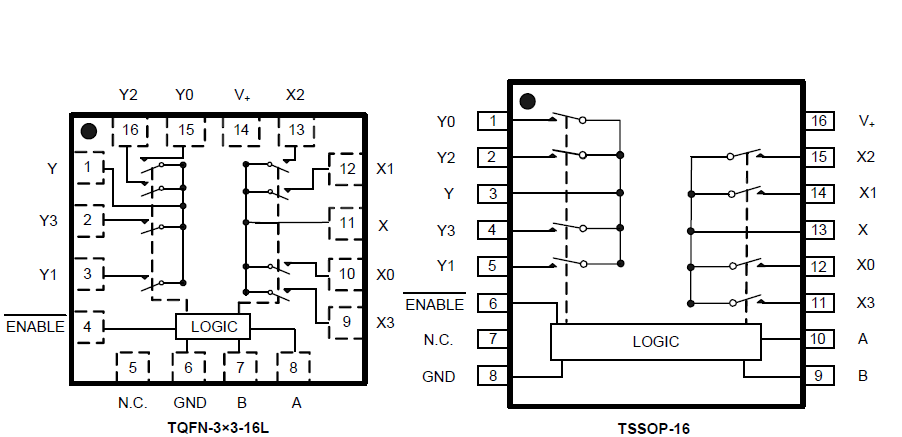

● Available in Green TQFN-3×3-16L and TSSOP-16 Packages

The SGM84782 is high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that configured as two 4-channel multiplexers. It operates from a single +1.8V to +4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (4Ω) and fast switching speeds (tON = 17ns, tOFF = 9ns).

The SGM84782 can handle rail-to-rail analog signals and is available in Green TQFN-3×3-16L and TSSOP-16 packages.
