• Three 6th-Order 1080i High Definition Filters

• One 6th-Order Standard Definition Filter

• Clamp or Bias Mode Active with AC-Coupled Inputs

• Clamp or Bias Mode Inactive with DC-Coupled Inputs

• AC- or DC-Coupled Outputs

• DC-Coupled Output Eliminates AC Coupling Capacitor

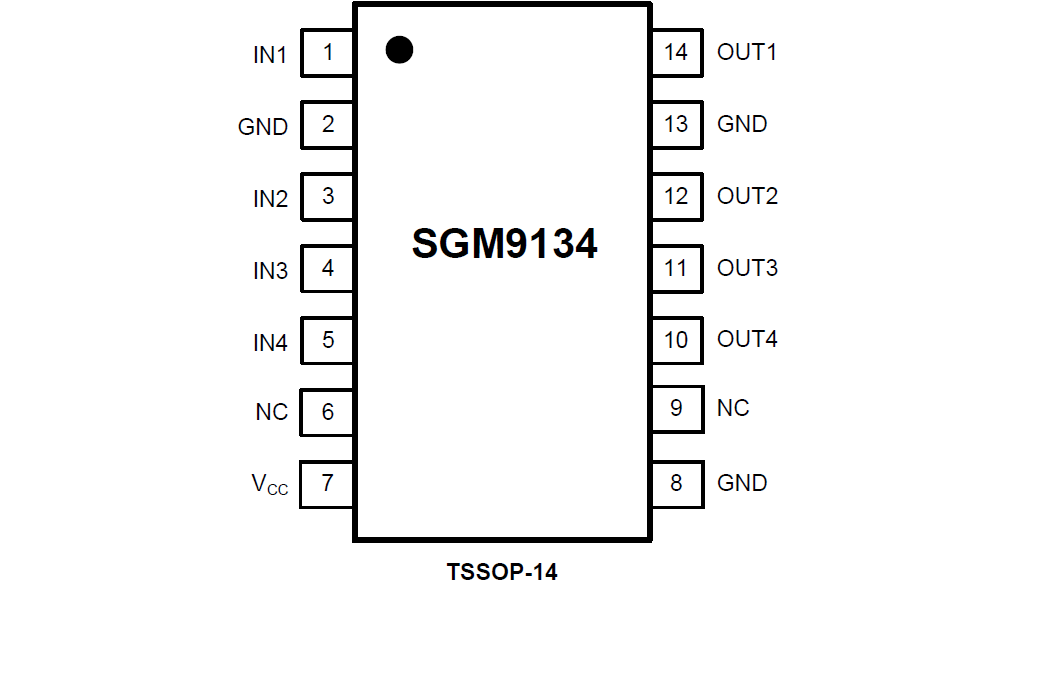

• Available in Green TSSOP-14 Package

• -40°C to +85°C Operating Temperature Range

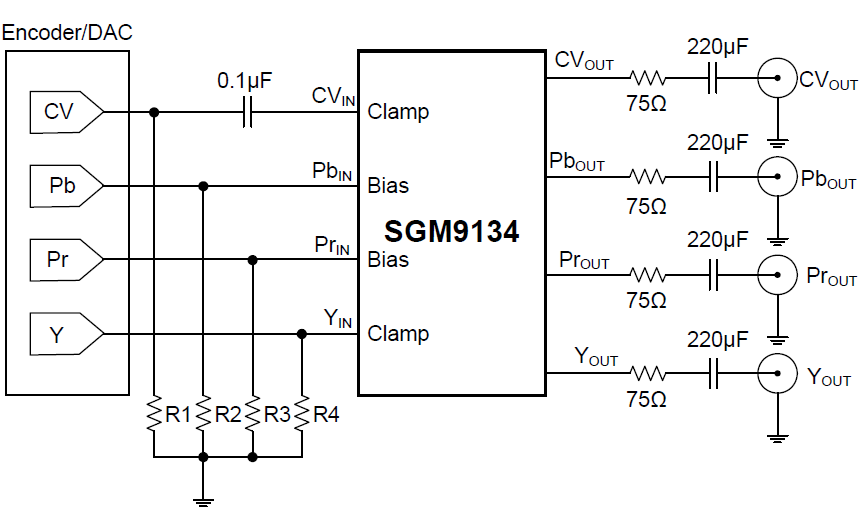

The SGM9134 video filter is intended to replace passive LC filters and drivers with an integrated device. One 6th-order channel offers Standard Definition (SD) filter while the other three channels are High Definition (HDi) filters. The SGM9134 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal clamp and bias circuitry may be used if AC-coupled inputs are required.

The outputs can be AC- or DC-coupled. DC coupling the outputs removes the need for large output coupling capacitors.

The SGM9134 is available in Green TSSOP-14 package. It operates over an ambient temperature range of -40℃ to +85℃.
