Bus Buffer/Line Driver with 3-State Output,74LVC1G125 Replace SN74LV1T125DCKR.
74LVC1G125 74LVC1G125.pdf
FEATURES

• Wide Supply Voltage Range: 1.65V to 5.5V

• High Noise Immunity

• ±24mA Output Drive at VCC = 3.0V

• CMOS Low Power Consumption

• Inputs Accept Voltages Up to 5V

• Direct Interface with TTL Levels

• -40℃ to +125℃ Operating Temperature Range

• Available in a Green SC70-5 Package

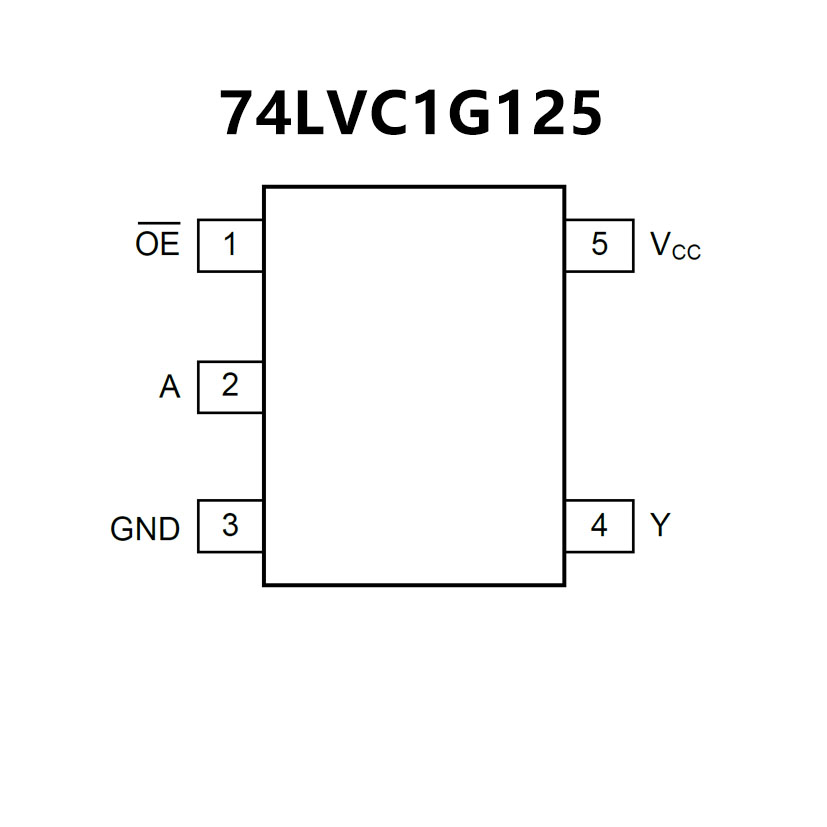

PIN CONFIGUTION
优势替代
SN74LV1T125 SN74LV1T125.pdf

No.12684

FEATURES

• Single-Supply Voltage Trans1ator at

  5.0/3.3/2.5/1.8v vcc

• Operating Range of 1.8v to 5.5vUp Trans1ation

  1.2V(1) to 1.8V at 1.8v Vcc

  1.5V(1) to 2.5V at 2.5v vcc

  1.8V(1) to 3.3V at 3.3v vcc

  3.3V to 5.0v at 5.ovvcc.

• Down Trans1ation

   3.3v to 1.8v at 1.8v vcc

   3.3 V to 2.5v at 2.5v vcc

   5.0v to 3.3v at 3.3v vcc.

• Logic Output is Referenced to vcc. output Drive

   8.0mA Output Drive at 5.ov

   7.0mA Output Drive at 3.3 v

   3.0mA Output Drive at 1.8v

• Characterized up to 50MHz at 3.3v vcc

• 5.0V Tolerance on Input Pins

• -40°C to 125C Operating Temperature Range

• Latch-Up Performance Exceeds 250mA

  Per JESD 17

• ESD Performance Tested Per JESD 22

  200o-V Human-Body Mode1

  (A114-B,C1ass II)

  200-V Machine Mode1 (A115-A)

  1000-v Charged-Device Mode1 (C101)

 Supports Standard Logic Pinouts

• CMos Output B Compatib1e with AUP1G and

  LVC1G Families

  (1)Refer to the VIH/VILand output

  drive for lower vCC condition

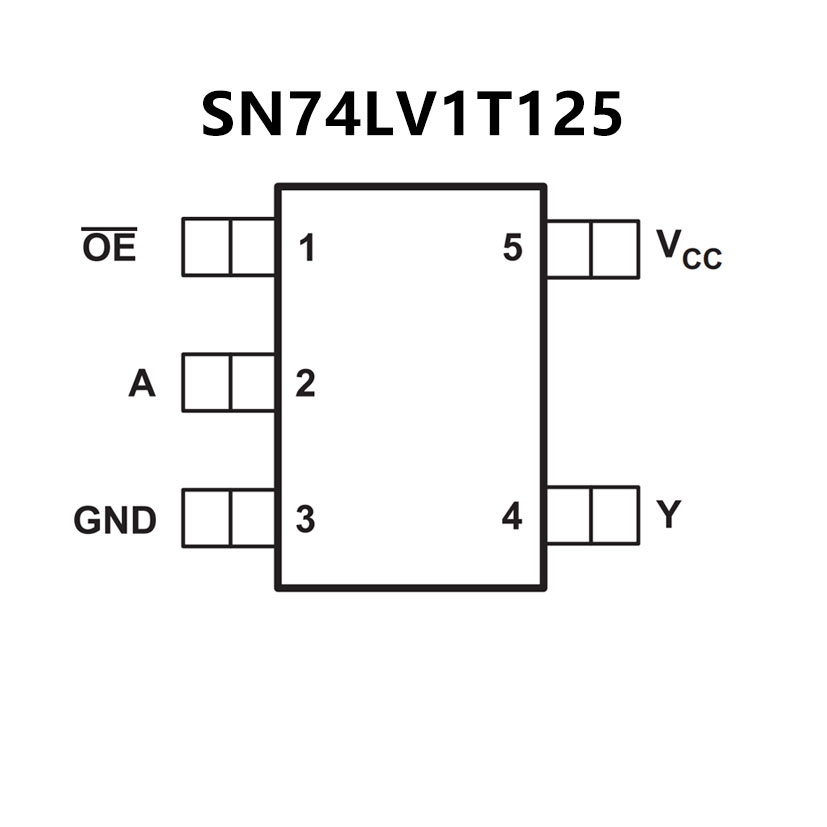

PIN CONFIGUTION
