Single 2 input OR gate,Replace 74LVC1G32GV
74LVC1G32XN5G 74LVC1G32XN5G.pdf
FEATURES

 Wide Supply Voltage Range: 1.65V to 5.5V

 High Noise Immunity

 ±24mA Output Drive at VCC = 3.0V

 CMOS Low Power Consumption

 Direct Interface with TTL Levels

 Inputs Accept Voltages up to 5V

 -40℃ to +125℃ Operating Temperature Range

 Available in a Green SC70-5 Package

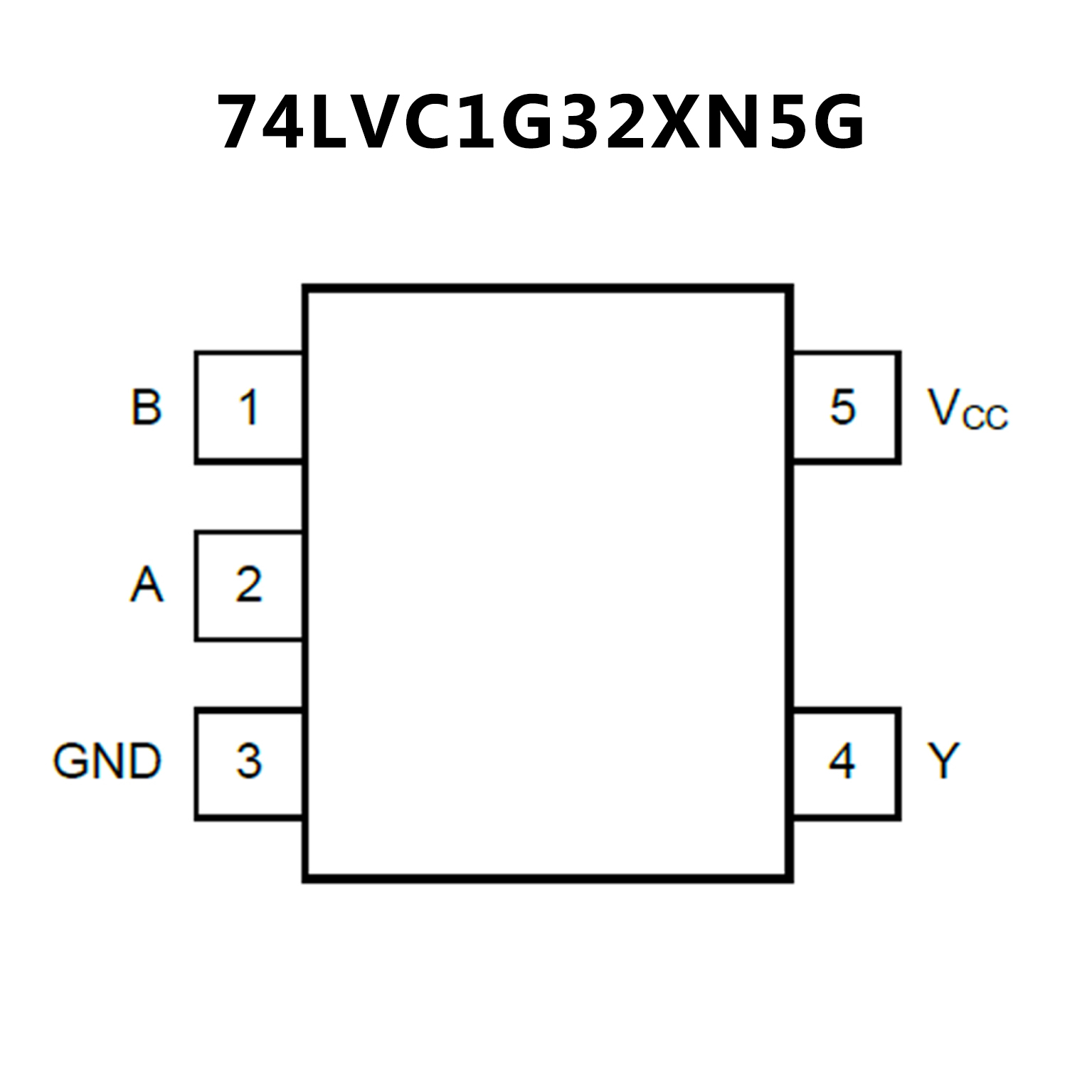

PIN CONFIGUTION
优势替代
74LVC1G32GV 74LVC1G32GV.pdf

No.13665

FEATURES

 Wide supply voltage range from 1.65 V to 5.5 V

 Overvoltage tolerant inputs to 5.5 V

 High noise immunity

 CMOS low power dissipation

 IOFF circuitry provides partial Power-down mode operation

 ±24 mA output drive (VCC = 3.0 V)

 Latch-up performance exceeds 250 mA

 Direct interface with TTL levels

 Complies with JEDEC standard:

 JESD8-7 (1.65 V to 1.95 V)

 JESD8-5 (2.3 V to 2.7 V)

 JESD8-B/JESD36 (2.7 V to 3.6 V)

 ESD protection:

 HBM JESD22-A114F exceeds 2000 V

 MM JESD22-A115-A exceeds 200 V

 Multiple package options

 Specified from -40 °C to +85 °C and -40 °C to +125 °C.

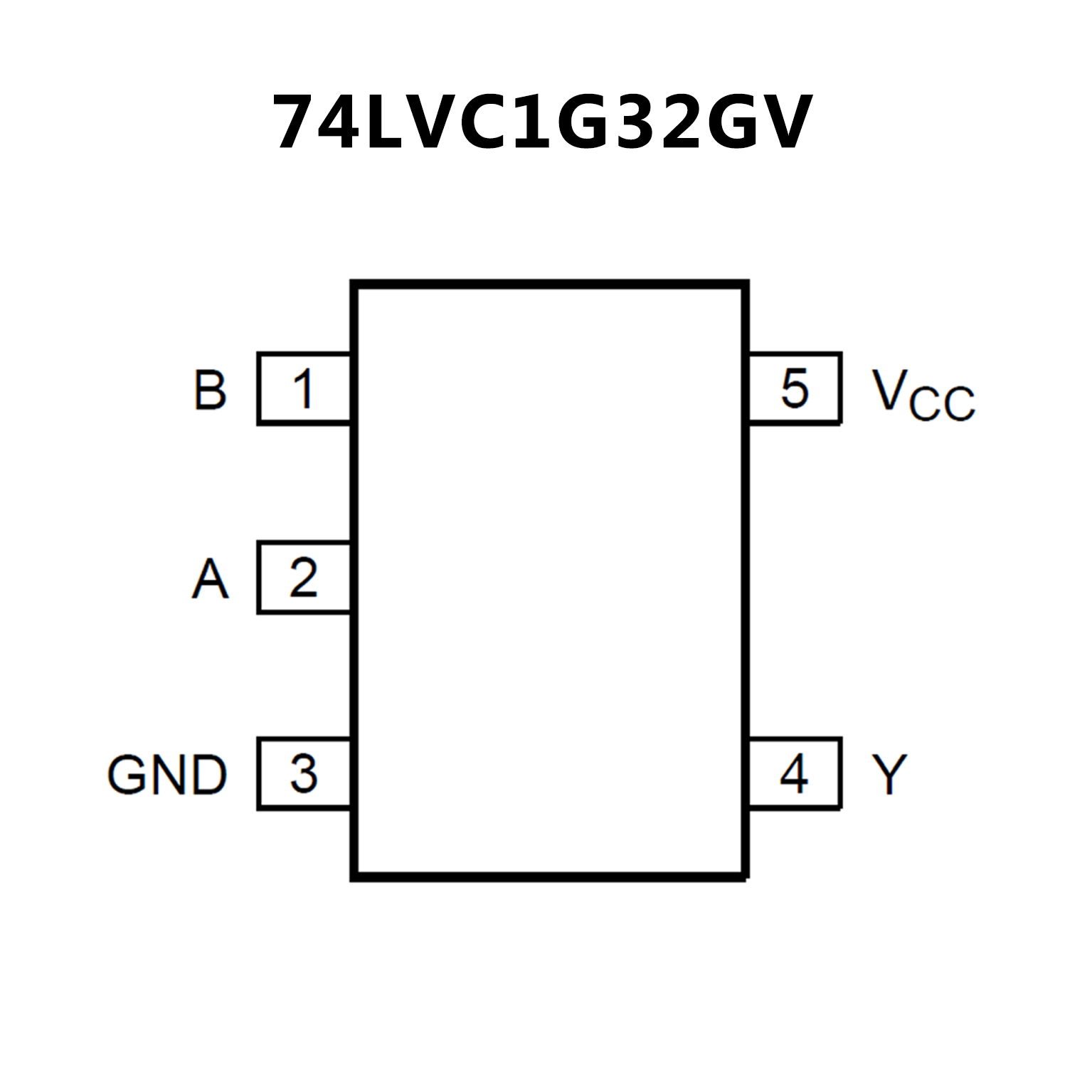

PIN CONFIGUTION
