1.36W Mono Fully Differential Audio Power Amplifier, EUA6204 Replace APA0713.
EUA6204
EUA6204.pdf
EUA6204.pdfFEATURES
• Supply Voltage 2.5V to 5.5V
• 1.36W into 8Ω from a 5-V Supply at THD=1% (typ)
• Low Supply Current: 4mA typ at 5V
• Shutdown Current: 0.01µA typ
• Fast Startup with Minimal Pop
• Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling
Capacitors
• RoHS Compliant and 100% Lead (Pb)-Free

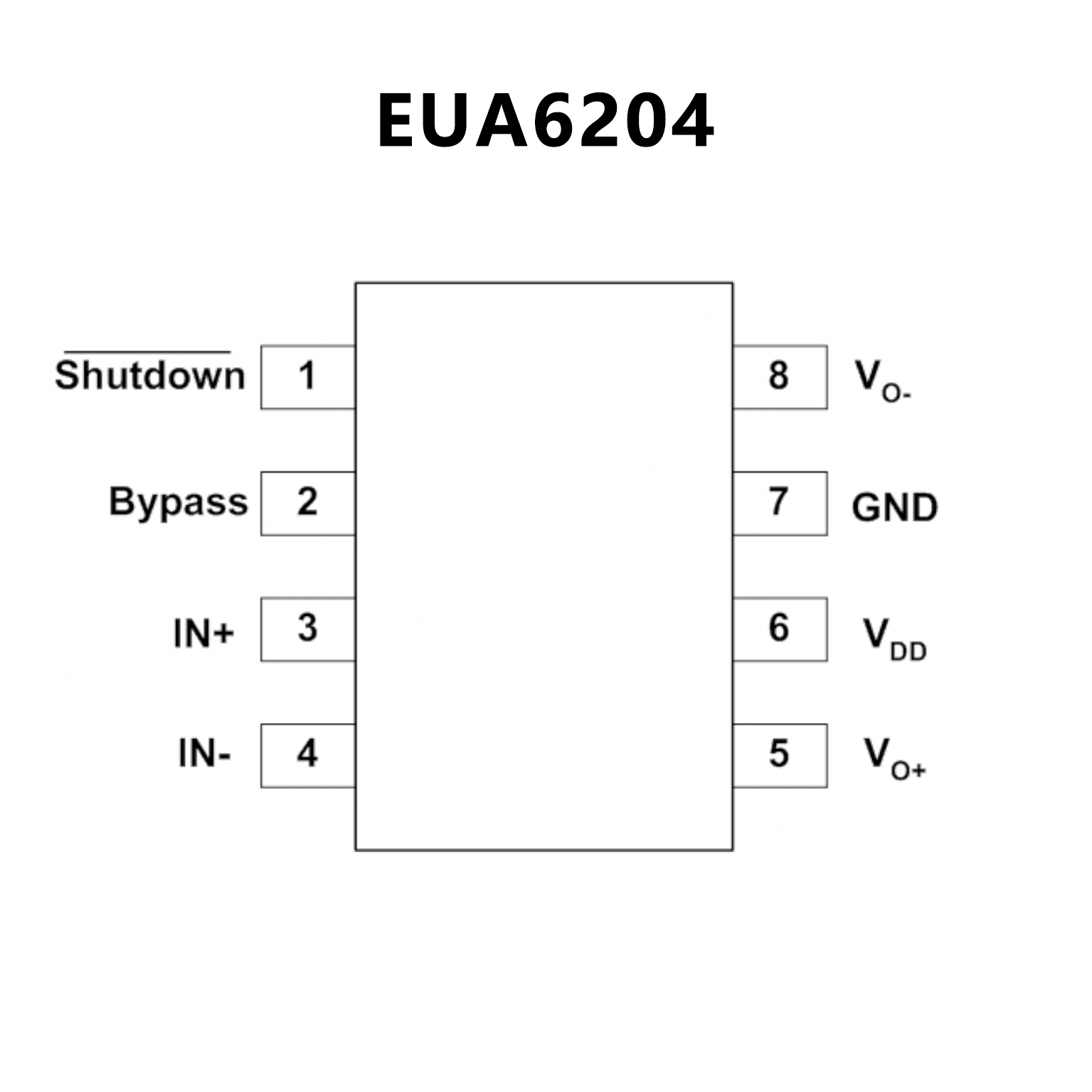

PIN CONFIGUTION
优势替代
FEATURES
• Operating Voltage : 2.6V-5.5V
• APA0713 Compatible with TPA751
• Supply Current
– IDD=1.3mA at VDD=5V ,BTL mode
– IDD=0.9mA at VDD=3.3V ,BTL mode
• Low Shutdown Current
– IDD=0.1mA
• Low Distortion
– 630mW, at VDD=5V, BTL, RL=8W
THD+N=0.15%
– 280mW, at VDD=3.3V, BTL, RL=8W
THD+N=0.15%
• Output Power at 1% THD+N
– 900mW, at VDD=5V, BTL, RL=8W
– 400mW, at VDD=3.3V, BTL, RL=8W
at 10% THD+N
– 1.1W at VDD=5V, BTL, RL=8W
– 480mW at VDD=3.3V, BTL, RL=8W
• Depop Circuitry Integrated
• Thermal Shutdown Protection and Over Current
Protection Circuitry
• High supply voltage ripple rejection
• Surface-Mount Packaging
– 8 pin SOP
• Lead Free Available (RoHS Compliant)

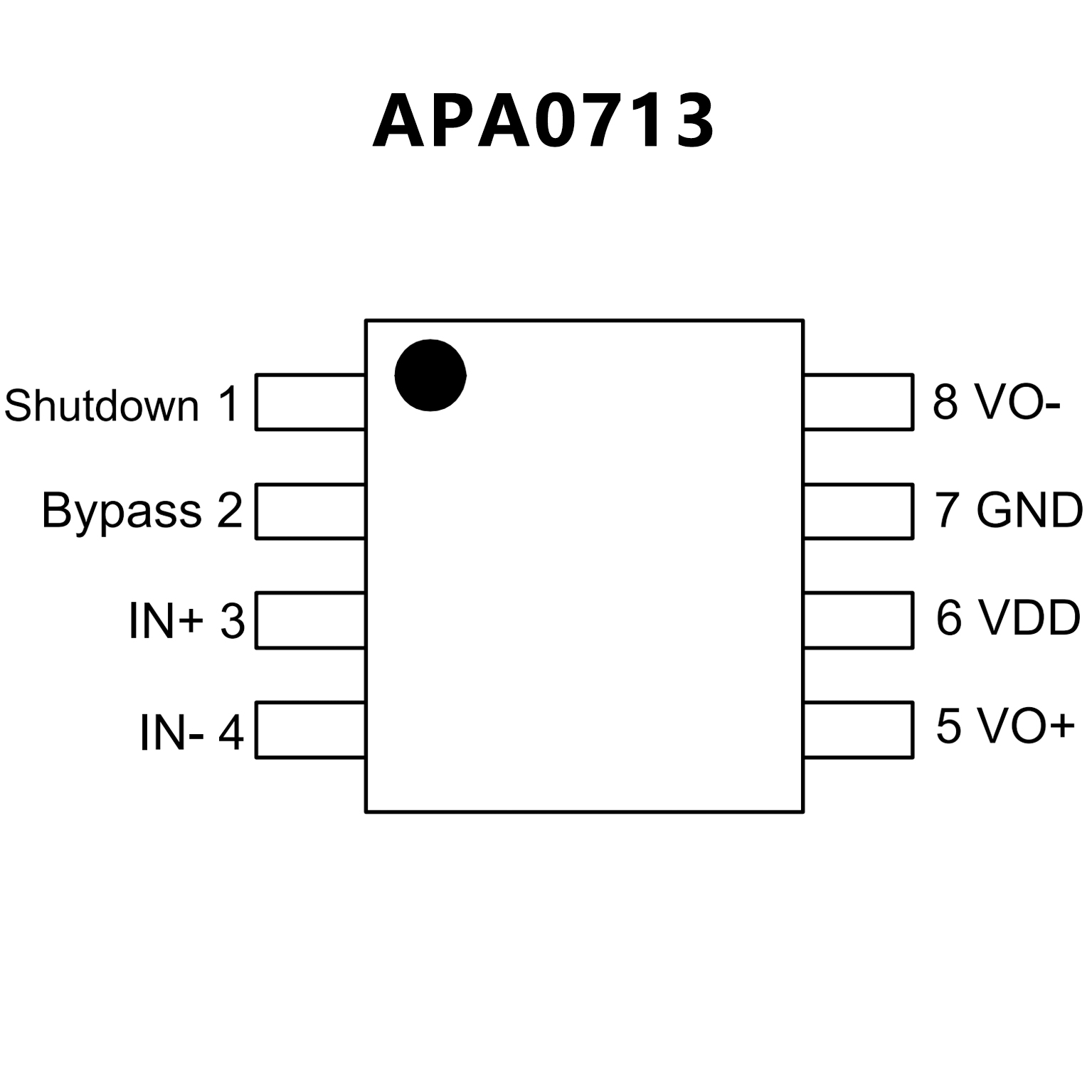

PIN CONFIGUTION
