High Efficiency 10A Synchronous Buck Converter, EUP3288 Replace G5335.
EUP3288
EUP3288.pdf
EUP3288.pdfFEATURES
• Wide Input Voltage Range: 4.5V to 30V
• 8A Output Current
• Excellent Line and Load Transient Responses
• Integrated 23mΩ N-Channel MOSFET for
High Side
• Integrated 13mΩ N-Channel MOSFET for
Low Side
• Programmable PWM Frequency from
100KHz to 1MHz
• Internal Soft-Start
• Selectable Forced PWM or Automatic
PFM/PWM Mode
• Power Good Monitoring
• Under-Voltage Protection
• Over-Voltage Protection
• Cycle-by-Cycle Current Limit
• Over-Temperature Protection
• Available in TQFN-23 4mmx4mm Package
• RoHS Compliant and Halogen-Free

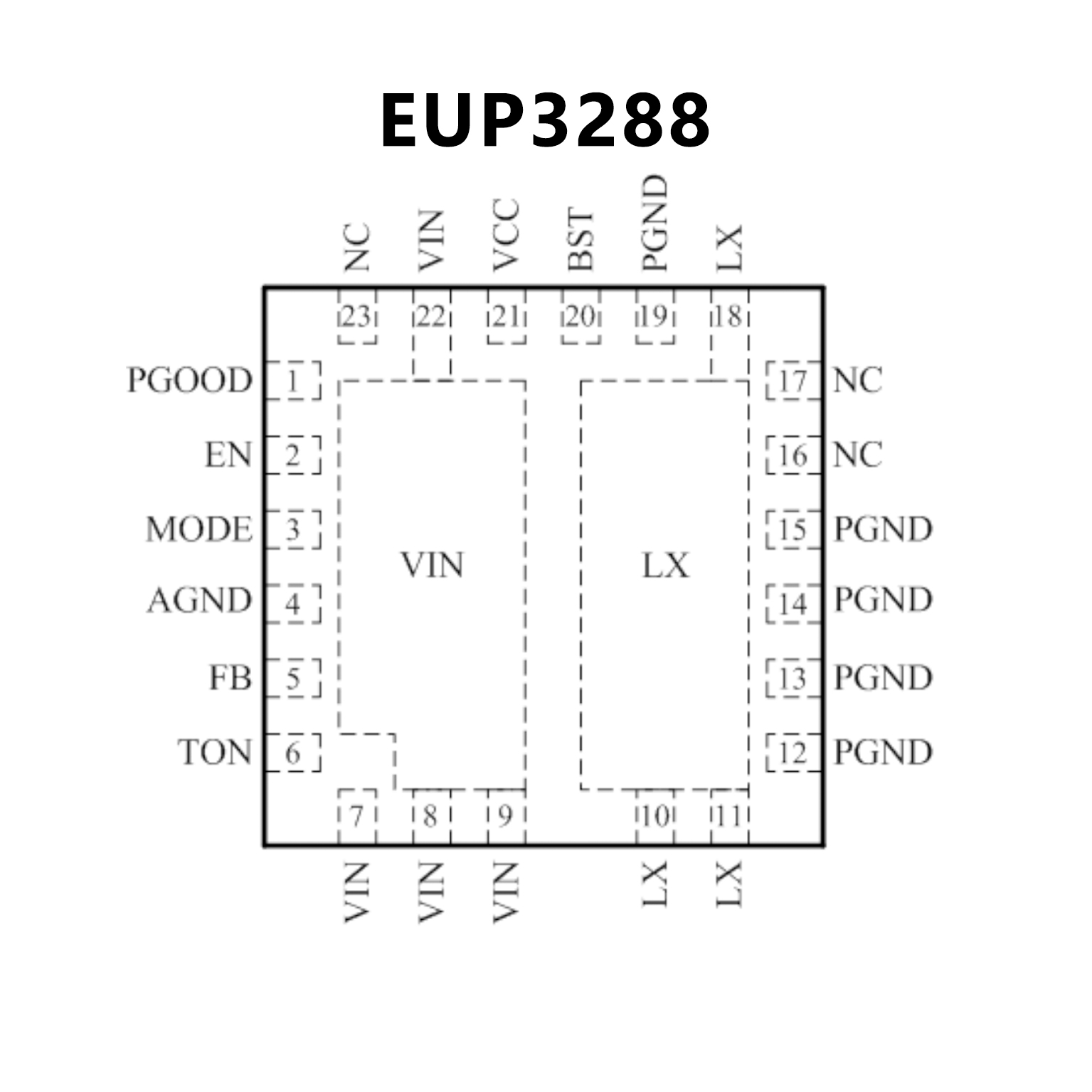

PIN CONFIGUTION
优势替代
FEATURES
• Ultra-High Efficiency
• Integrated 8.5mΩ at VCC=5V N-Channel
MOSFET for Low Side
• Integrated 20mΩ at VCC=5V N-Channel
MOSFET for High Side
• No Current-Sense Resistor (Lossless ILIMIT)
• Quasi-PWM with 100ns Load-Step Response
• 1% VOUT Accuracy Over Line and Load
• Programmable Switching Frequency
• Adjustable Output Range from 0.8V
• 4.5V to 28V Adapter or Battery Input Range
• Integrated Boost Switch
• OVP & UVP
• Over Temperature Protection (non-latch)
• Adjustable Soft-Start
• Power-Good Indicator

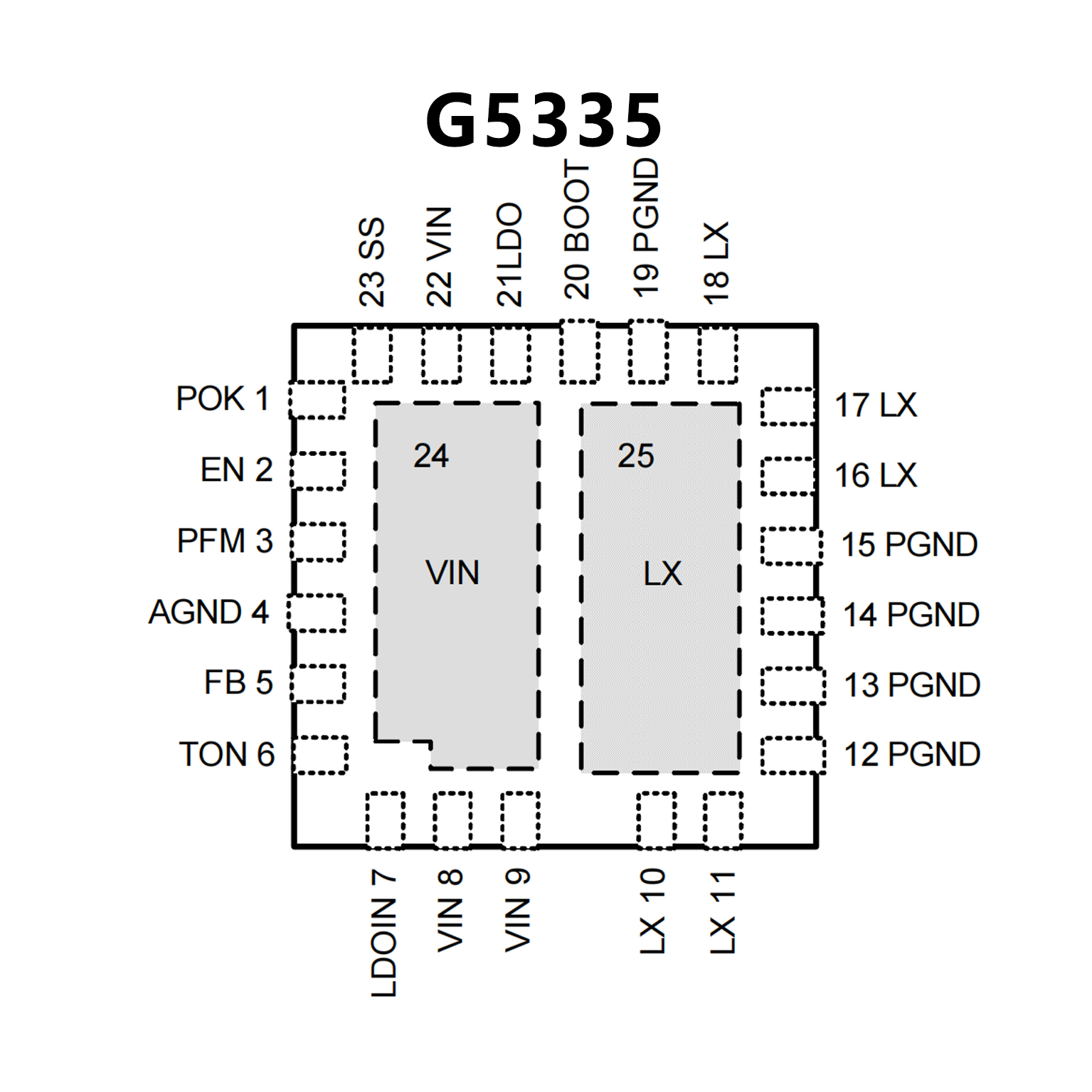

PIN CONFIGUTION
