2A Line Switch with Low On-Resistance, EUP3512A Replace APL3512A.
EUP3512A
EUP3512A.pdf
EUP3512A.pdfFEATURES
• 80mΩ(typ.) Power MOSFET
• Operating Range : 2.7V to 5.5V
• Deliver Current up to 2A
• Under Voltage Lockout
• 24µA Quiescent Current
• 1µA Maximum Shutdown Current
• No Reverse Current when Power Off
• Soft_Start Time Programmable by External capacitor
• Output Shutdown Pull-low Resistor
• Enable Active-High
• Available in SOT23-5
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

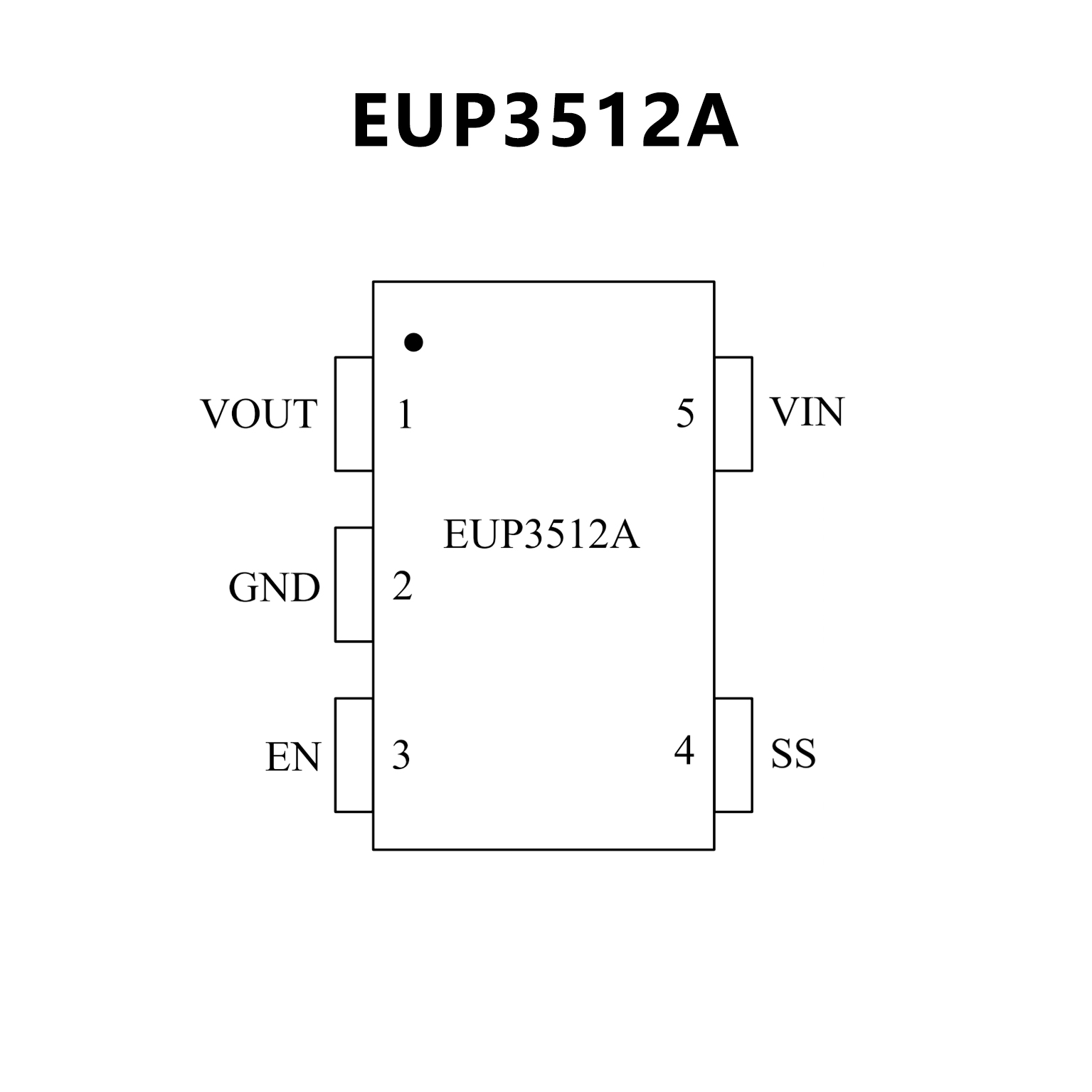

PIN CONFIGUTION
优势替代
FEATURES
• 90mW High Side MOSFET
• 2A Continuous Current
• Soft-Start Time Programmable by External
Capacitor
• Wide Supply Voltage Range: 2.7V to 5.5V
• Current-Limit and Short-Circuit Protections
• Under-Voltage Lockout Protection
• Reverse Current Blocking when Switch Disabled
• Over-Temperature Protection
• Logic Level Enable Input
APL3512A: Active High
APL3512B: Active Low
• Lead Free and Green Devices Available
(RoHS Compliant)

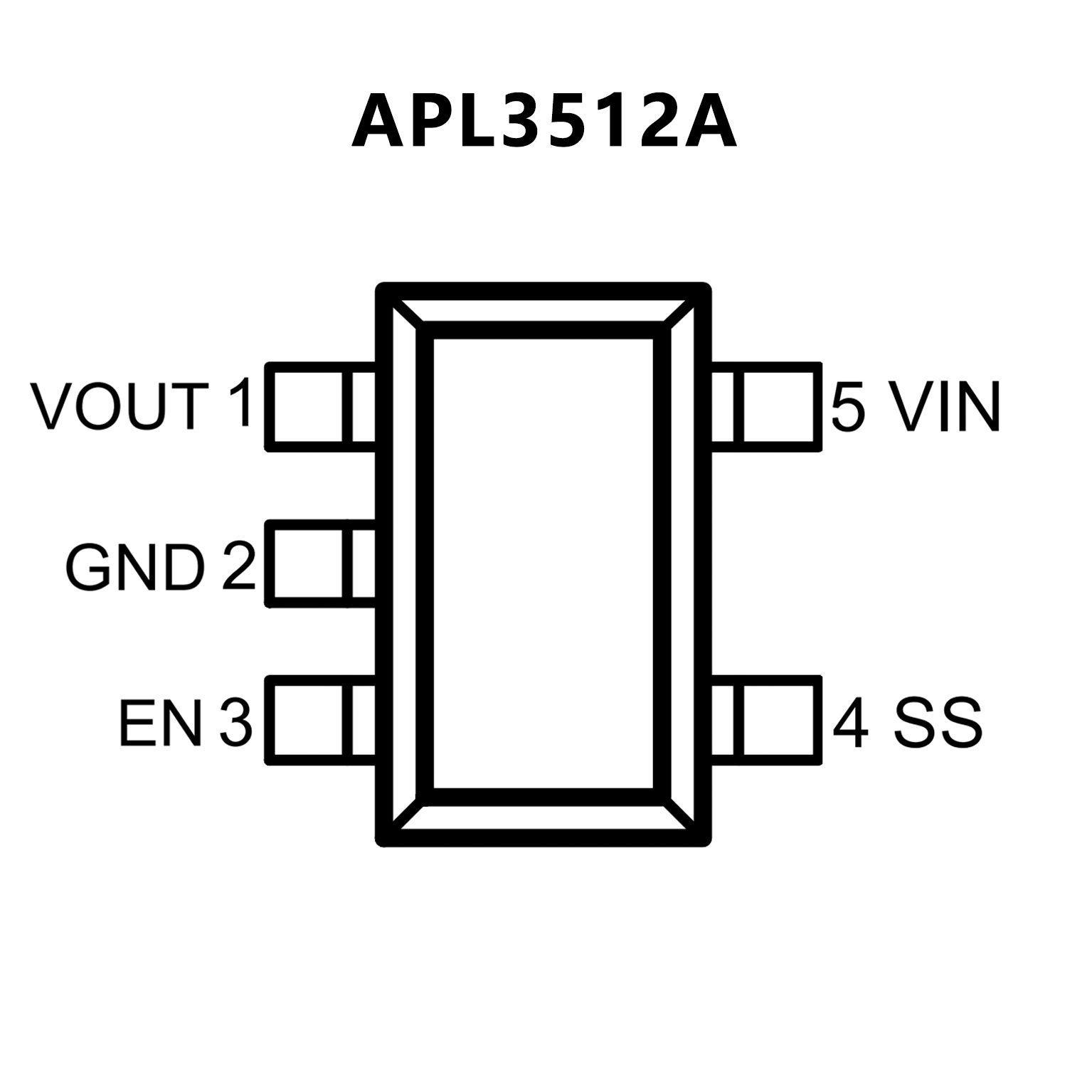

PIN CONFIGUTION
