USB Power-Distribution Switch with Fault Blanking, EUP3550 Replace G524.
EUP3550
EUP3550.pdf
EUP3550.pdfFEATURES
• 70mΩ(typ.) Power MOSFET
• Operating Range : 2.7V to 5.5V
• Under Voltage Lockout
• 17µA Quiescent Current
• 1µA Maximum Shutdown Shutdown Current
• No Reverse Current when Power Off
• Fault Blanking Open-Drain Over-Current Flag
Output OCB
• Output Shutdown Pull-low Resistor
• Available with 3 Versions of Current Limits with
Foldback.
• Enable Active-High or Active-Low
• Available in SOT23-5 and MSOP-8 Packages
• RoHS Compliant and 100% Lead(Pb)-Free
Halogen-Free

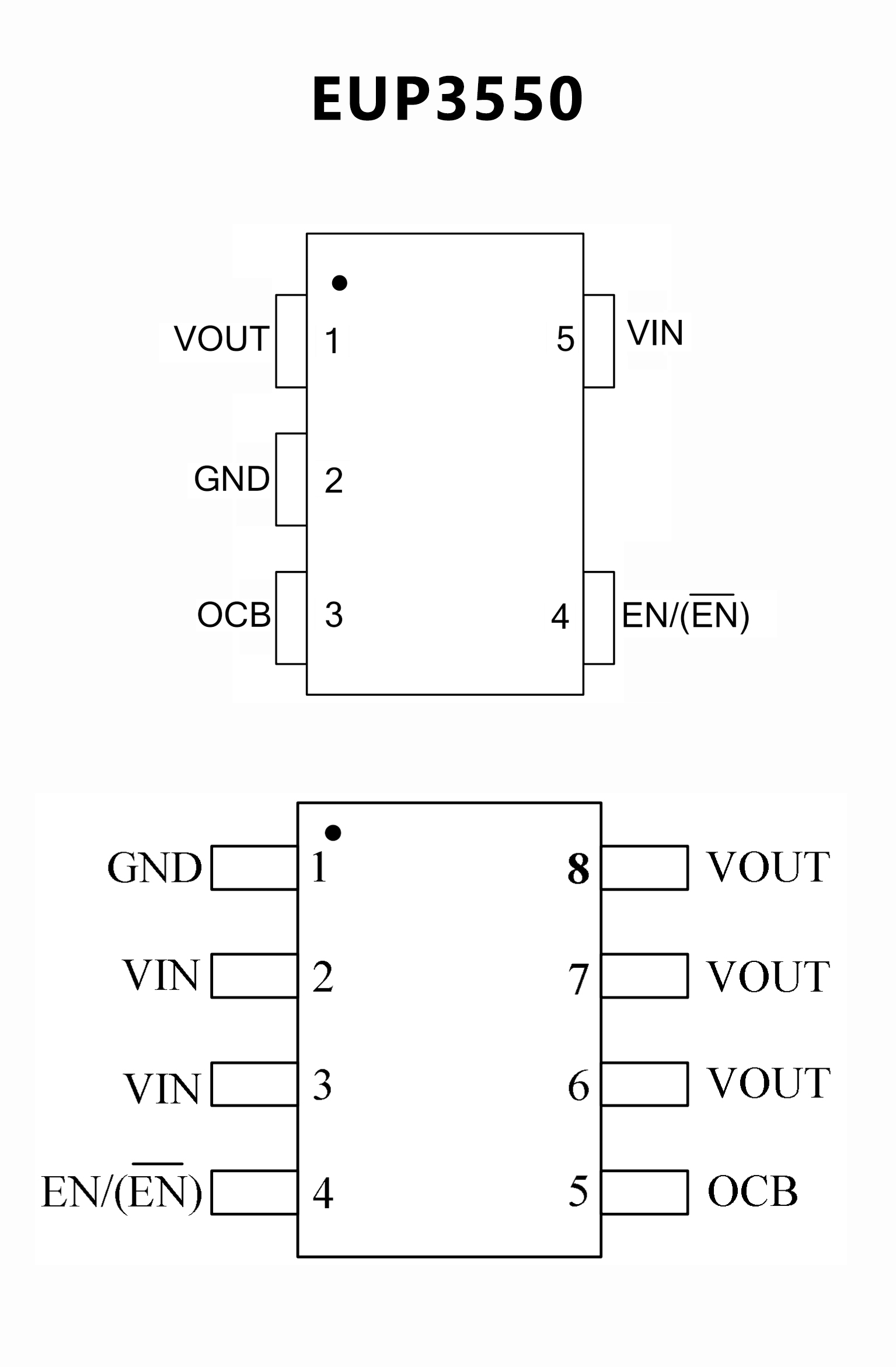

PIN CONFIGUTION
优势替代
FEATURES
• 70mΩ High-Side MOSFET(G524A,G524B,G524C,G524D)
• Available with 4 Versions of Current Limits with Foldback
• Operating Range:2.7V to 5.5V
• 1mS Typical Rise Time
• Fast Overcurrent Response -1.5µs (TYPICAL)
• Under voltage Lockout
• 130µA Quiescent Supply Current
• 1µA Maximum Shutdown Supply Current
• Logic Level Enable Pin, Available with
Active-High or Active-Low Version
• No Reverse Current when Power Off
• Deglitched Open-Drain Over-Current Flag Output ( OC )
• Available with or without Output Shutdown Pull-low Resister
• Output Reverse-Voltage Protection
• SOT-23-5, TSOT-23-6, MSOP-8 and MSOP-8 (FD) Packages
• UL Certification_#E232223
• CB Test Certification by IEC 60950-1:2005 (2nd Edition);
Am 1:2009

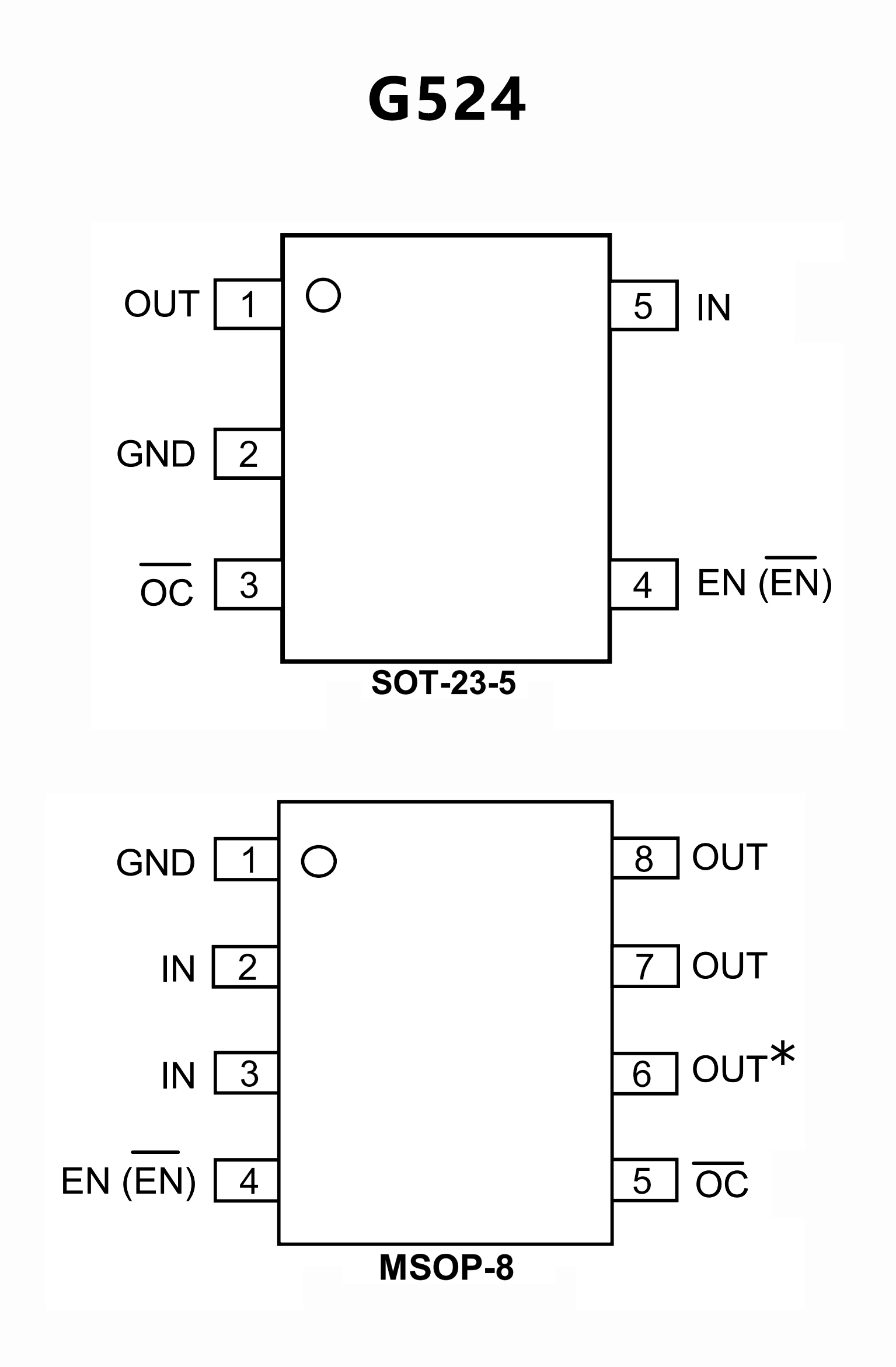

PIN CONFIGUTION
