• Programmable Charge Current Up to 800mA

• No MOSFET, Sense Resistor or Blocking Diode Required

• Complete Linear Charger in ThinSOT Package for Single

  Cell Lithium-ion Batteries

• Constant-Current/Constant-Voltage Operation with Thermal

  Regulation to Maximize Charge Rate Without Risk of

  Overheating

• Charges Single Cell Li-Ion Batteries Directly from USB Port

• Preset 4.2V Charge Voltage with ± 1% Accuracy

• Charge Current Monitor Output for Gas Gauging

• Automatic Recharge

• Charge Status Output Pin

• C/10 Charge Termination

• 25µA Supply Current in Shutdown

• 2.9V Trickle Charge Threshold (EUP8054)

• Available Without Trickle Charge (EUP8054X)

• Soft-Start Limits Inrush Current

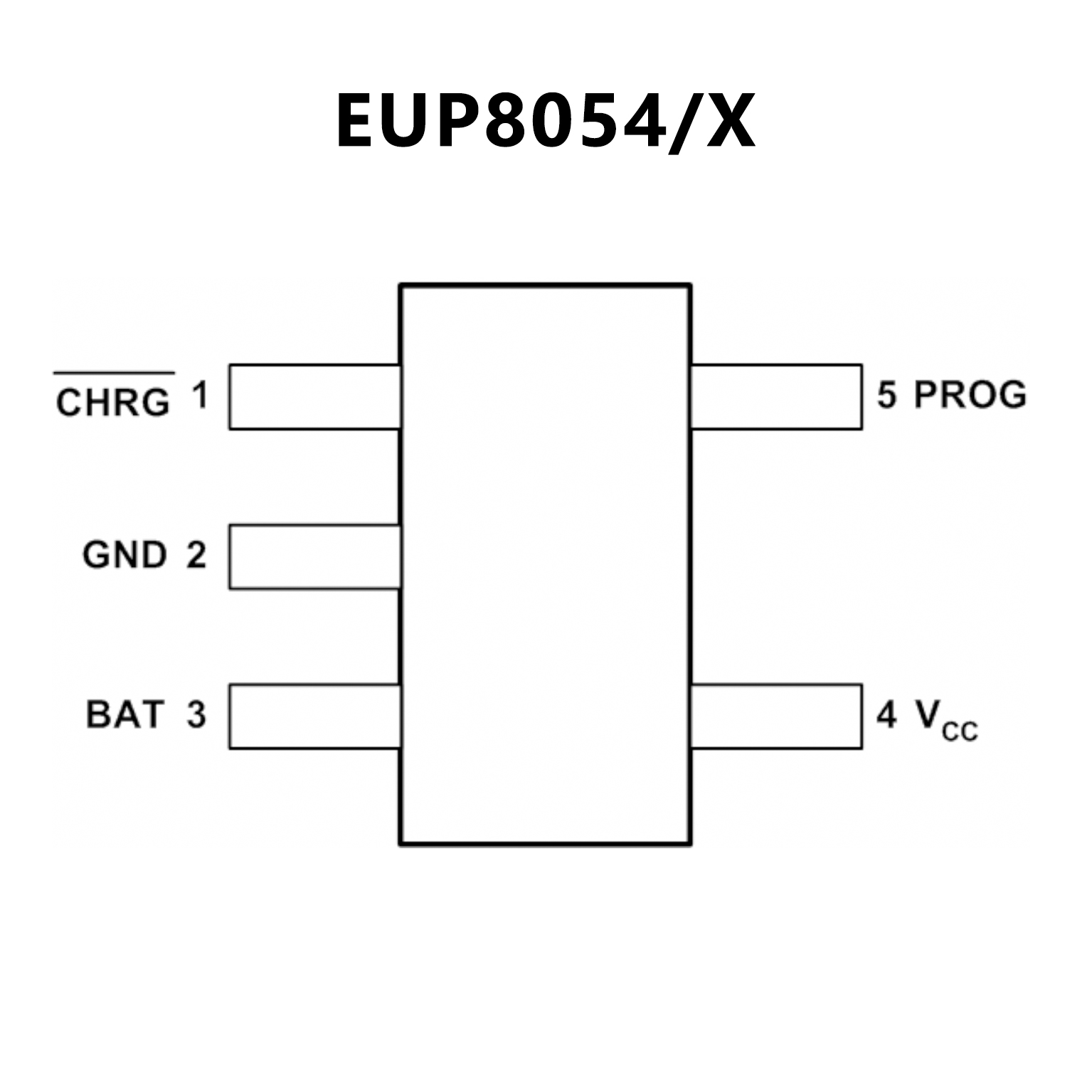

• Available in TSOT25 Package

• RoHS Compliant and 100% Lead (Pb)-Free
