3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables, PI3B3126 Replace SN74CBTLV3126.
PI3B3126
PI3B3126.pdf
PI3B3126.pdfFEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Fast Switching Speed -4ns Max.
• Ultra Low Quiescent Power (0.1µA Typical)
Ideally suited for notebook applications
• Packaging (Pb-free & Green available):
14-pin， SOIC (W)
14-pin，TSSOP (L)
14-pin， TQFN (ZDB)
16-pin，QSOP (Q)

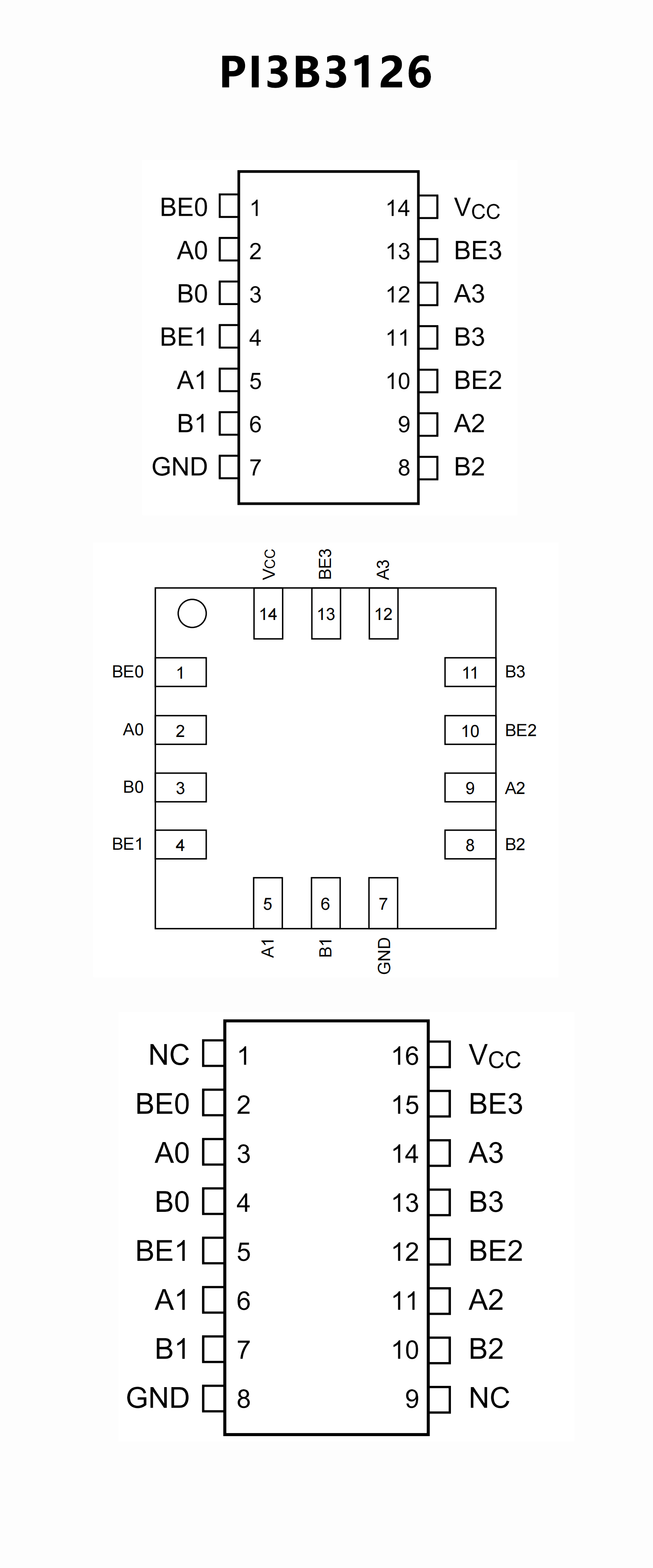

PIN CONFIGUTION
优势替代
FEATURES
• Standard 126-type pinout
• 5-Ω switch connection between two ports
• Rail-to-rail switching on data I/O ports
• Ioff supports partial-power-down mode operation
• Latch-up performance exceeds 100 mA per JESD
78, Class II

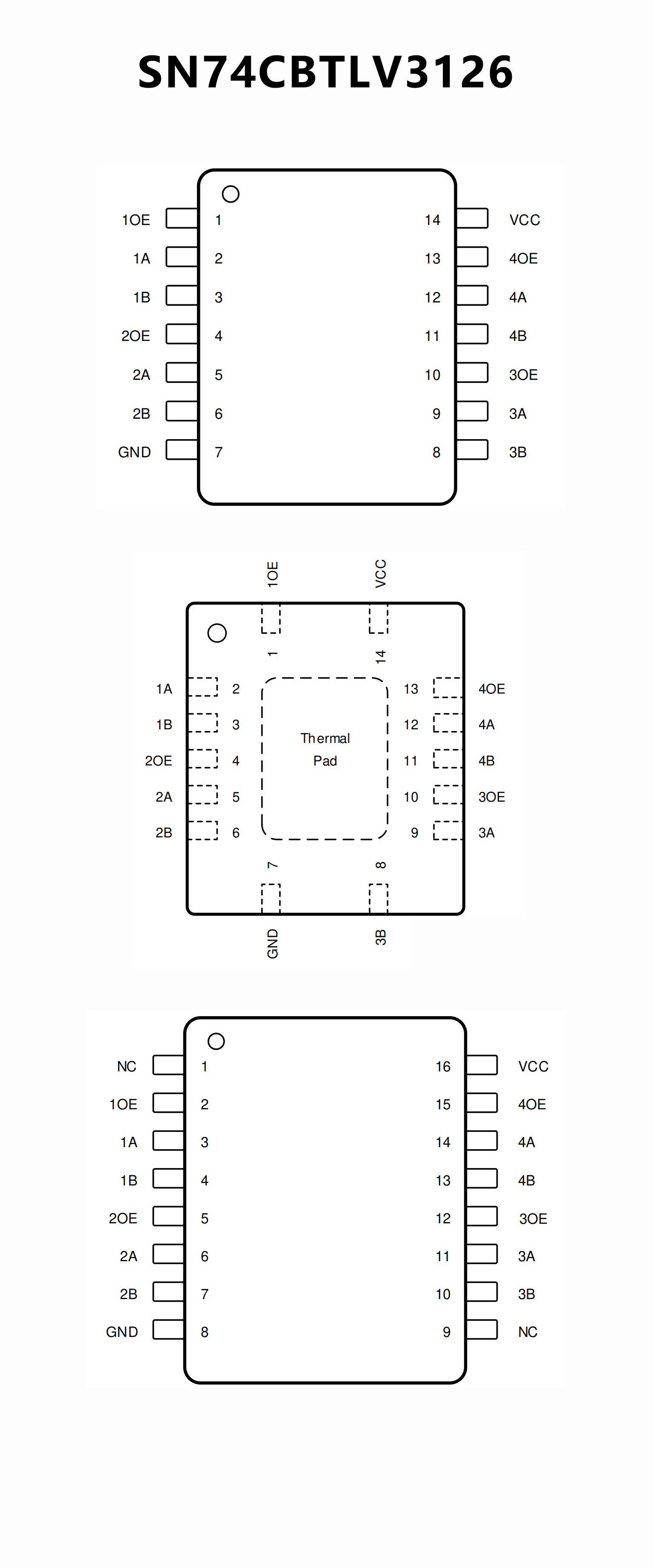

PIN CONFIGUTION
