3.3V, 8:1 Mux/DeMux NanoSwitch, PI3B3251 Replace 74CBTLV3251.
PI3B3251
PI3B3251.pdf
PI3B3251.pdfFEATURES
• Near-Zero propagation delay
• 5Ω switches connect inputs to outputs
• Ultra Low Quiescent Power (0.1µA typical)
– Ideally suited for notebook applications
• Pin compatible with 74 series 251 logic devices
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control
• Packaging (Pb-free & Green available):
– 16-pin 173-mil Wide (TSSOP)

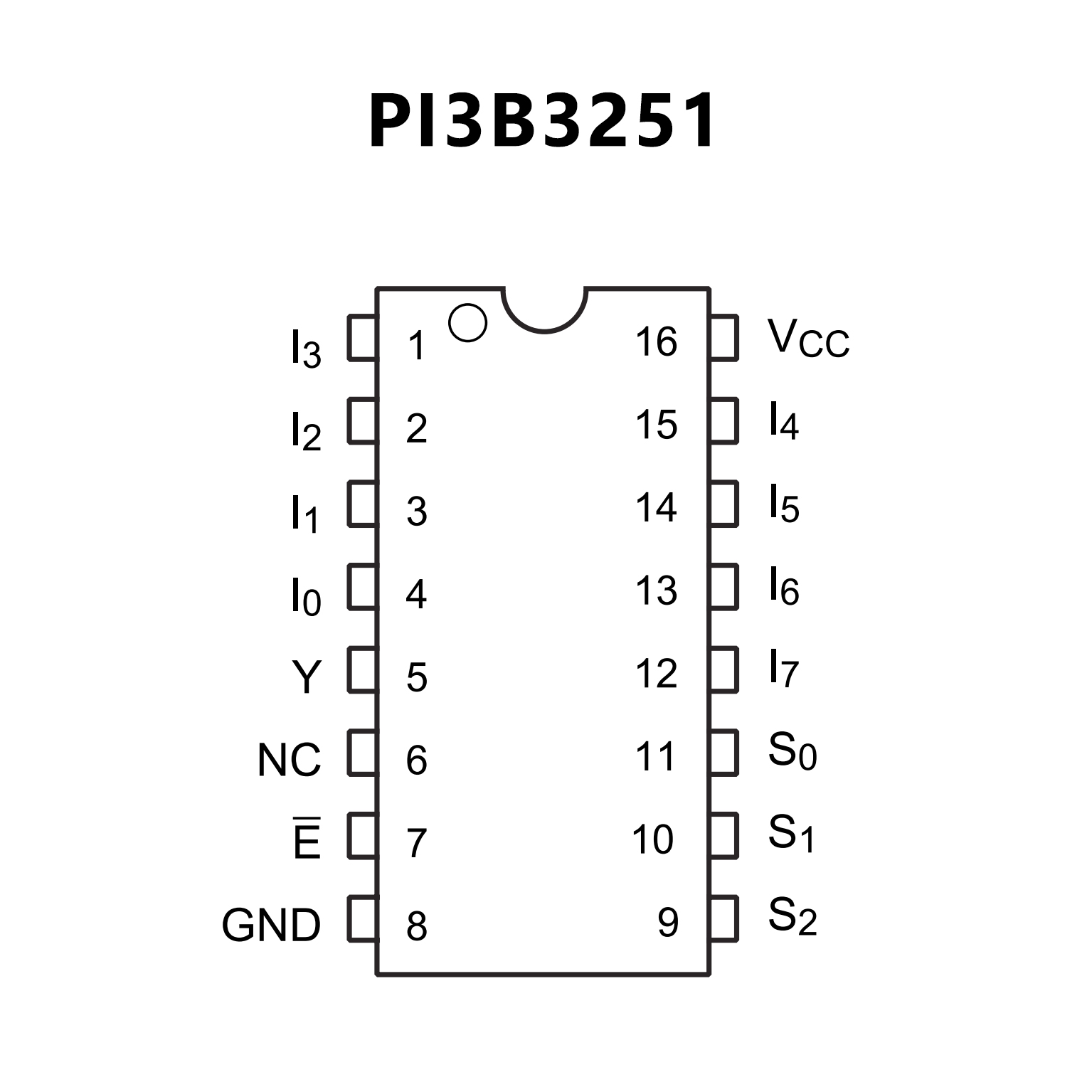

PIN CONFIGUTION
优势替代
FEATURES
• Functionally equivalent to QS3251
• 5Ω bi-directional switch connection between two ports
• Isolation under power-off conditions
• Over-voltage tolerant
• Latch-up performance exceeds 100mA
• VCC = 2.3V - 3.6V, Normal Range
• ESD > 2000V per MIL-STD-883, Method 3015;
> 200V using machine model (C = 200pF, R = 0)
• Available in QSOP and TSSOP packages

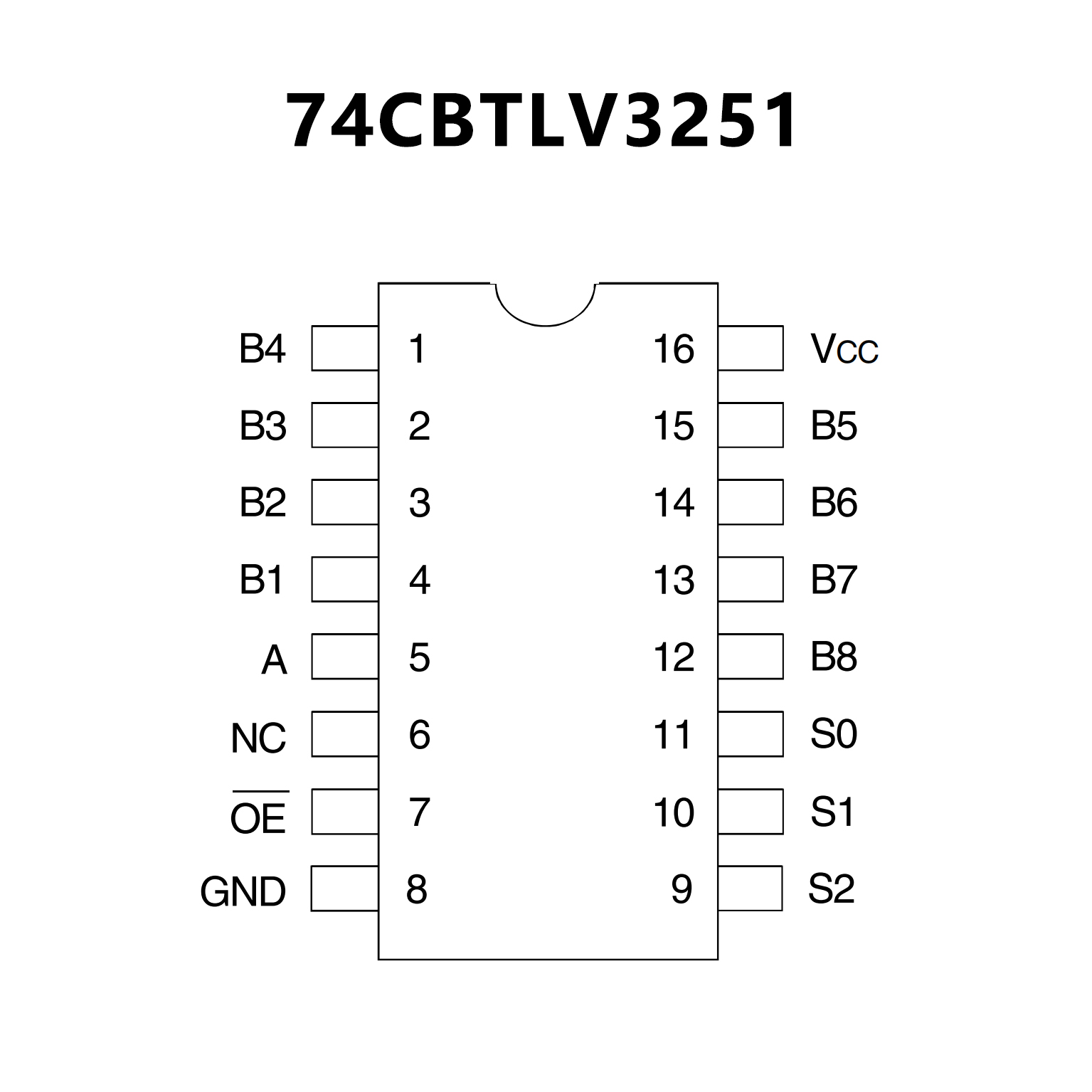

PIN CONFIGUTION
