8-Bit Bus Switch, 2-Enable High or Low 1.8V/2.5V/3.3V, High-Bandwidth, Hot Plug, PI3CH3345 P2P SN74CB3Q3345.
FEATURES

• Near-Zero propagation delay

• 5-ohm switches connect inputs to outputs
• High signal passing bandwidth (500 MHz)
• Beyond Rail-to-Rail switching
  - 0 to 5V switching with 3.3V power supply
  - 0 to 3.3V switching with 2.5V power supply
• 5V I/O tolerant with supply in OFF and ON state
• 1.8V, 2.5V and 3.3V supply voltage operation
• Hot Insertion Capable
• Industrial Operating Temperature: -40ºC to +85ºC
• 8kV ESD Protection (human body model)
• Latch-up Performance: >200mA per JESD17
• Packaging (Pb-free & Green available):
  -20-pin 173-mil wide plastic TSSOP (L)
  -20-pin TQFN(ZH)

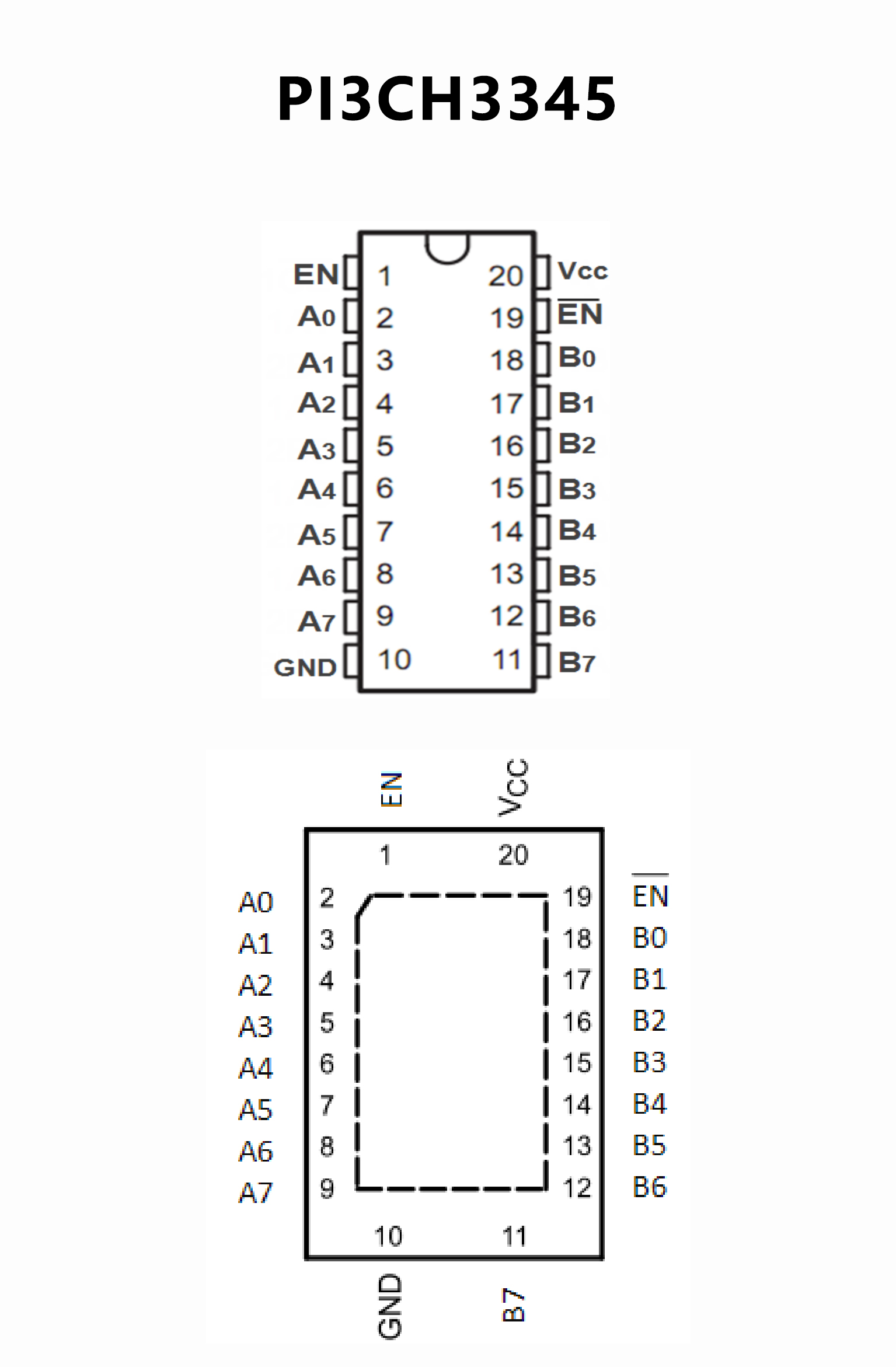

PIN CONFIGUTION
优势替代
SN74CB3Q3345 SN74CB3Q3345.pdf

No.14314

FEATURES

• High-Bandwidth Data Path (up to 500 MHz)
• 5-V-Tolerant I/Os With Device Powered Up or Powered Down
• Low and Flat ON-State Resistance (ron) Characteristics

  Over Operating Range (ron = 4 Typ)

• Rail-to-Rail Switching on Data I/O Ports
• 0- to 5-V Switching With 3.3-V VCC
• 0- to 3.3-V Switching With 2.5-V VCC
• Bidirectional Data Flow With Near-Zero Propagation Delay
• Low Input/Output Capacitance Minimizes Loading and Signal

  Distortion (Cio(OFF) = 4 pF Typ)
• Fast Switching Frequency (fOE = 20 MHz Max)
• Data and Control Inputs Provide Undershoot Clamp Diodes
• Low Power Consumption (ICC = 0.7 mA Typ)
• VCC Operating Range From 2.3 V to 3.6 V
• Data I/Os Support 0- to 5-V Signaling Levels (0.8 V, 1.2 V,

  1.5 V, 1.8 V, 2.5 V, 3.3 V, 5 V)
• Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS

  Outputs
• Ioff Supports Partial-Power-Down Mode Operation
• Latch-Up Performance Exceeds 100mA Per JESD78, Class II
• ESD Performance Tested Per JESD 22
• 2000-V Human-Body Model (A114-B, Class II)
• 1000-V Charged-Device Model (C101)

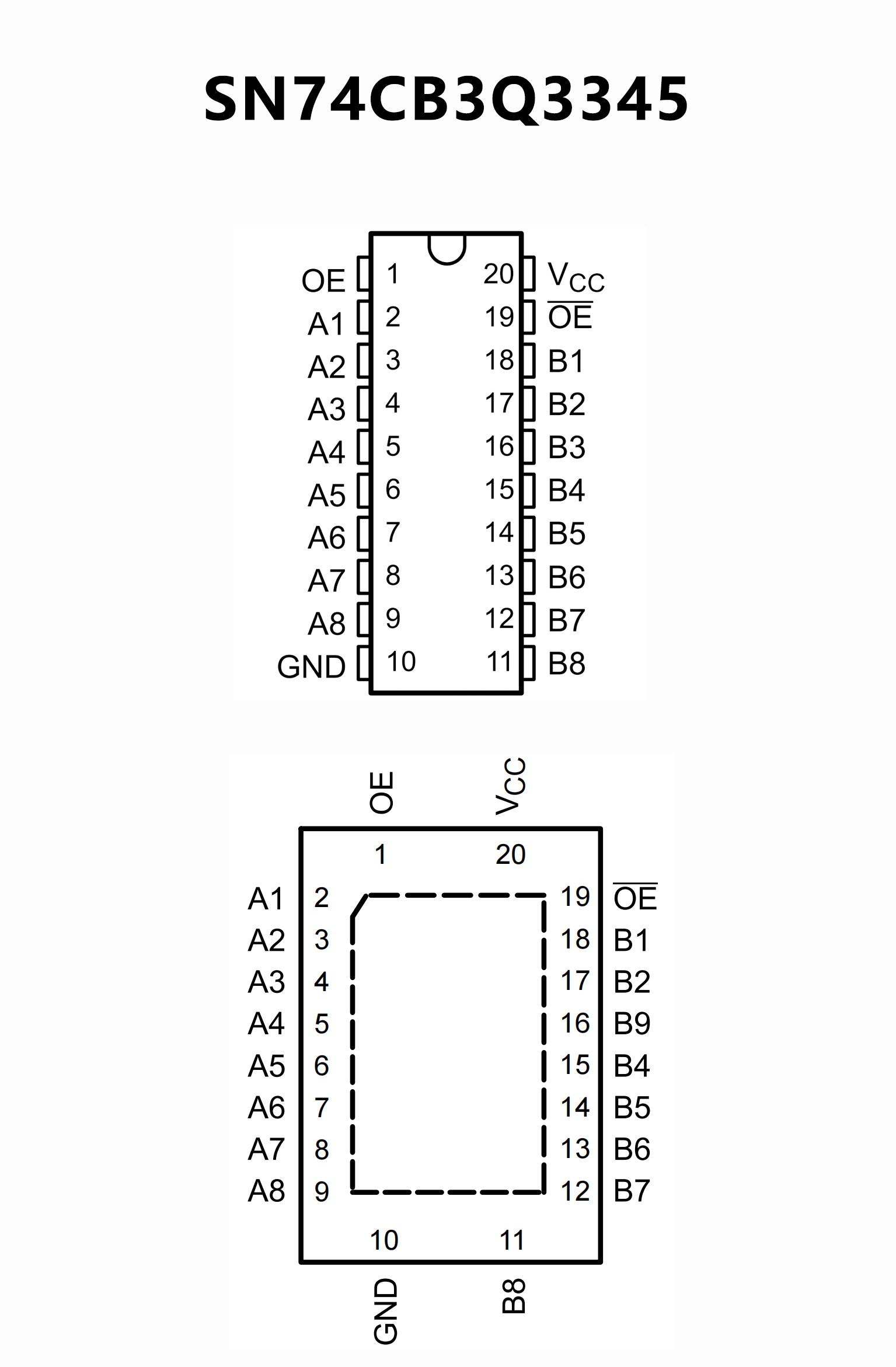

PIN CONFIGUTION
