Plug-in Detector for Type-C Connector, PI5USB30216 Replace TUSB320.
PI5USB30216
PI5USB30216.pdf
PI5USB30216.pdfFEATURES
• Compatible to USB Type-C™ Specification 1.1
• Backward compatible to USB Type-C Specification 1.0
• Supports Host mode/Device mode/Dual-role mode
• Supports Dual-role modes with/without Try.SNK/Try.SRC
supported
• Auto-configure ports orientation through CC detection
• Supports both pin control and I2C interface for control and
communication
• Integrated high-precision resistors and current sources for
CC pins
• Provides support for Default current, 1.5A and 3A modes
with I2C control
• Power saving mode
• Output indicator for plug-in detection
• Wide power supply range : 2.7V – 5.5V
• Industrial Temperature Range: -40oC to 85oC
• Packaging (Pb-free & Green):
– 12- contact, STQFN(1.6mm x1.6mm)

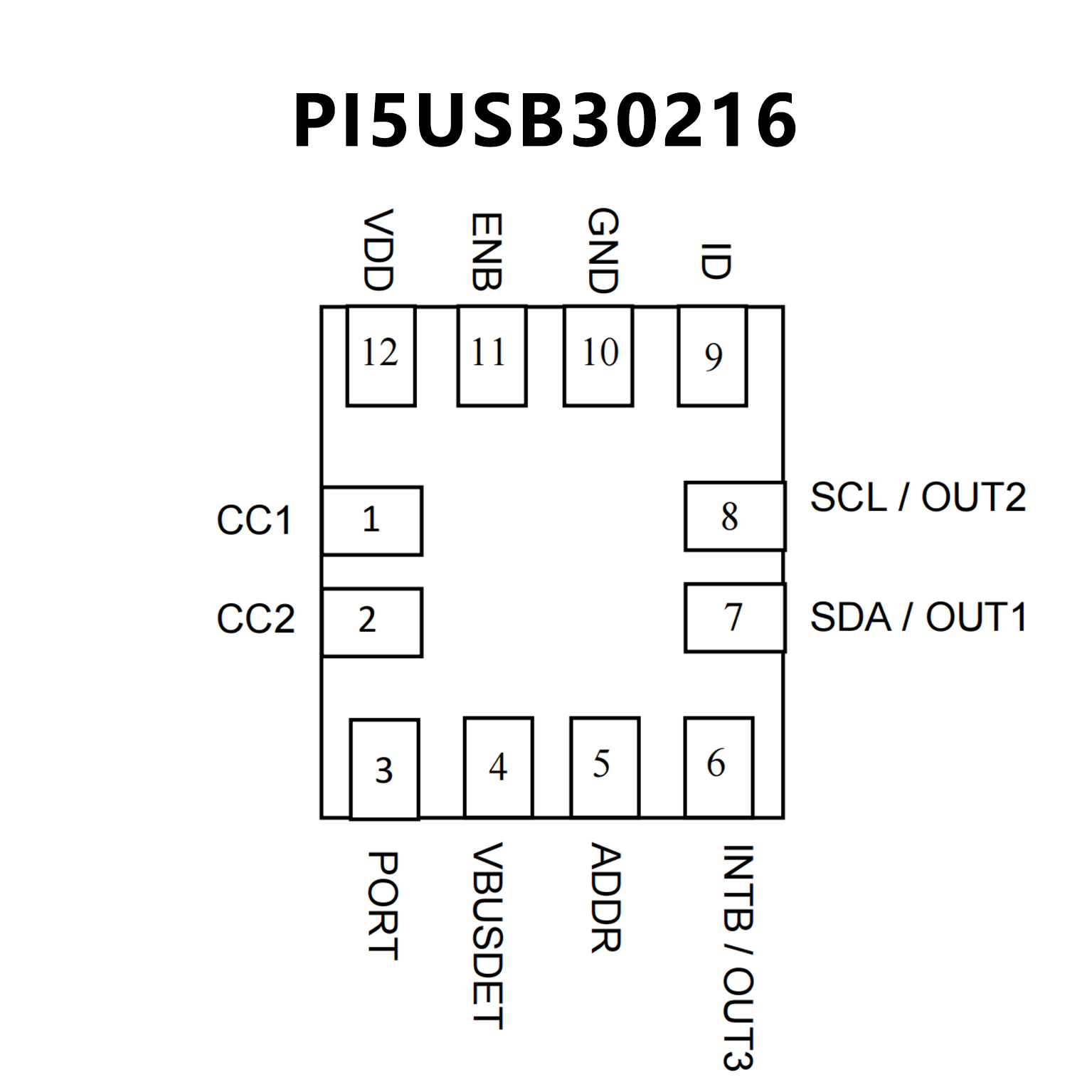

PIN CONFIGUTION
优势替代
FEATURES
• USB Type-C™ specification 1.1
• Backward compatible with USB Type-C
specification 1.0
• Supports up to 3 A of current advertisement
and detection
• Mode configuration
– Host only – DFP (source)
– Device only – UFP (sink)
– Dual role port – DRP
• Channel configuration (CC)
– Attach of USB port detection
– Cable orientation detection
– Role detection
– Type-C current mode (default, medium, high)
• VBUS detection
• I2C or GPIO control
• Role configuration control through I2C
• Supply voltage: 2.7 V to 5 V
• Low current consumption
• Industrial temperature range of –40 to 85°C

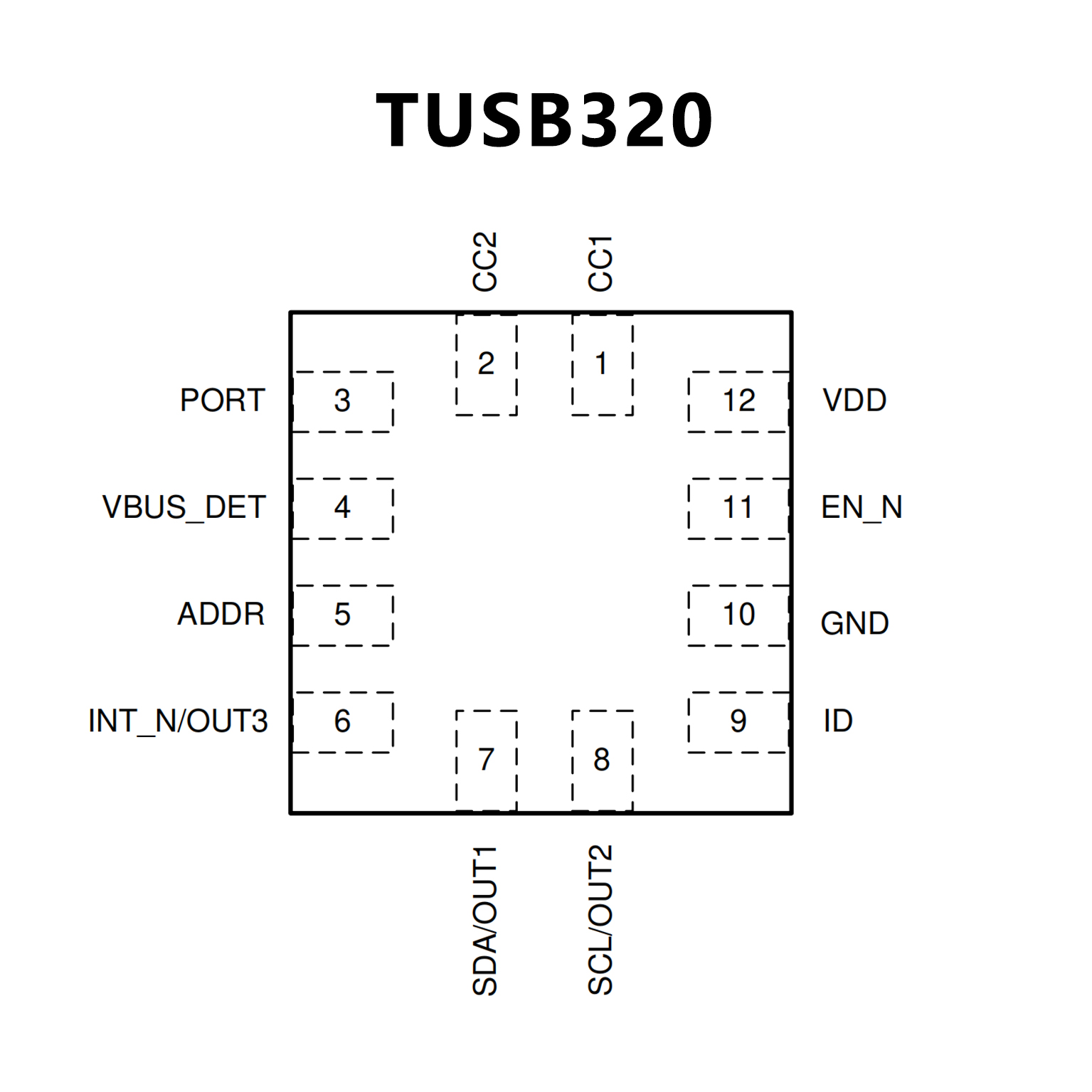

PIN CONFIGUTION
