Level Translating Fast-Mode Plus I2C-bus/SMbus Repeater, PI6ULS5V9617 Replace TCA9617.
PI6ULS5V9617
PI6ULS5V9617.pdf
PI6ULS5V9617.pdfFEATURES
• 2 channel, bidirectional buffer isolates capacitance
and allows 540pF on either side of the device at 1
MHz and up to 4000 pF at lower speeds
• Voltage level translation from 0.6V to 5.5V and
from 2.2V to 5.5V
• Footprint and functional replacement for
PI6ULS5V9617A at Fast-mode speeds
• Port A operating supply voltage range of 0.6V to
5.5V with normal levels(0.4VCC(A) + 0.8V ≤ VCC(B) )
• Port B operating supply voltage range of 2.2V to
5.5V with static offset level
• 5V tolerant I
2C-bus and enable pins
2C-bus and enable pins
• 0 Hz to 1 MHz clock frequency (the maximum
system operating frequency may be less than 1MHz
because of the delays added by the repeater)
• Active HIGH repeater enable input referenced to
VCC(B)
• Open-drain input/outputs
• Latching free operation
• Supports arbitration and clock stretching across the
repeater
• Accommodates Standard-mode, Fast-mode and
Fast-mode Plus I2C-bus devices, SMBus (standard
and high power mode), PMBus and multiple masters
• Powered-off high-impedance I2C-bus pins
• ESD protection exceeds 8000V HBM per JESD22-A114
• Package: MSOP-8L, SOIC-8L and TDFN2x3-8L

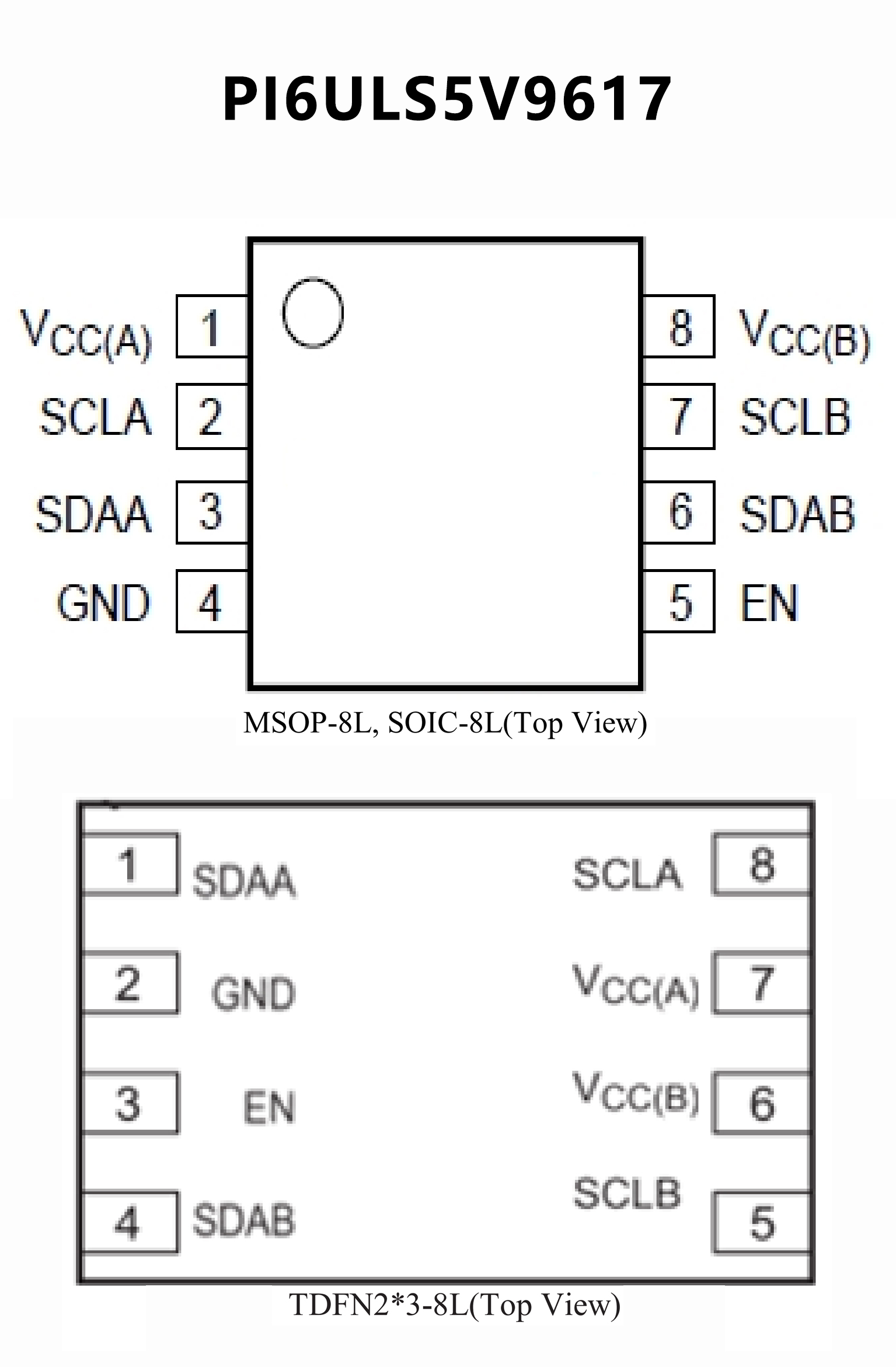

PIN CONFIGUTION
优势替代
FEATURES
• Two-channel bidirectional I2C buffer
• Support for standard mode, fast mode (400kHz),
and fast mode+ (1Mhz) I2C operation
• Operating supply voltage range of 0.8V to 5.5V on
A-side
• Operating supply voltage range of 2.2V to 5.5V on
B-side
• Voltage-level translation from 0.8V to 5.5V and
2.2V to 5.5V
• Footprint and function replacement for TCA9517
• Active-high repeater-enable input
• Open-drain I2C I/O
• 5.5V Tolerant I2C and enable input support
• Lockup-free operation
• Support for clock stretching and multiple controller
arbitration across the device
• Latch-up performance exceeds 100mA Per JESD
78, class II
• ESD protection exceeds JESD 22
– 4000V Human-body model
– 1500V Charged-device model

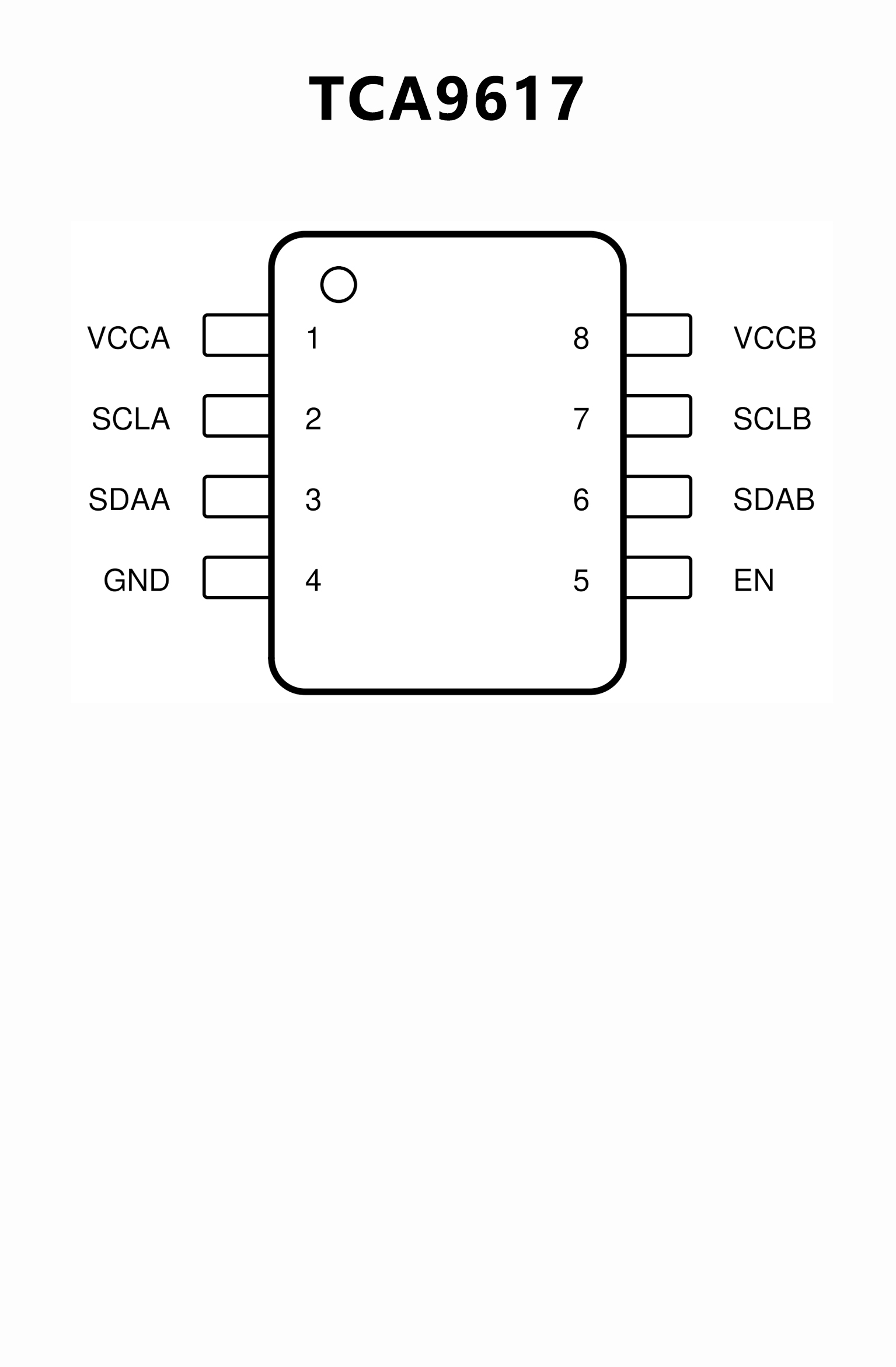

PIN CONFIGUTION
