1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005 Replace NCV8161.
SCT71005
SCT71005.pdf
SCT71005.pdfFEATURES
• Wide Input Range: 1.7V-6V (2.2V-6V for SCT71005A01)
• Maximum Output Current: 500mA
• Output Voltage:
- 1.2V,1.8V and 3.3V (Fixed Output)
- 0.7V~5V (Adjustable Output Version SCT71005A01)
- 0.5V~5V (Adjustable Output Version SCT71005A02)
• Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
• Low Quiescent Current: 8uA
• Ultra-Low Shutdown Current: 0.02uA
• Low Dropout Voltage(Adjustable Output Version) ：
- 54mV at 200mA load current
- 143mV at 500mA load current
• Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
• 1.4ms Internal Soft-start Time(VREF =500mV)
• 2.05ms Internal Soft-start Time(VREF =700mV)
• Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
• Enable pin is available
• Over-Temperature Protection
• Power-Good Feature is available
• Active Output Discharge
• Available Package:
SOT23-5/ TDFN2x2-6/ TDFN2x3-8/ DFN1x1-4

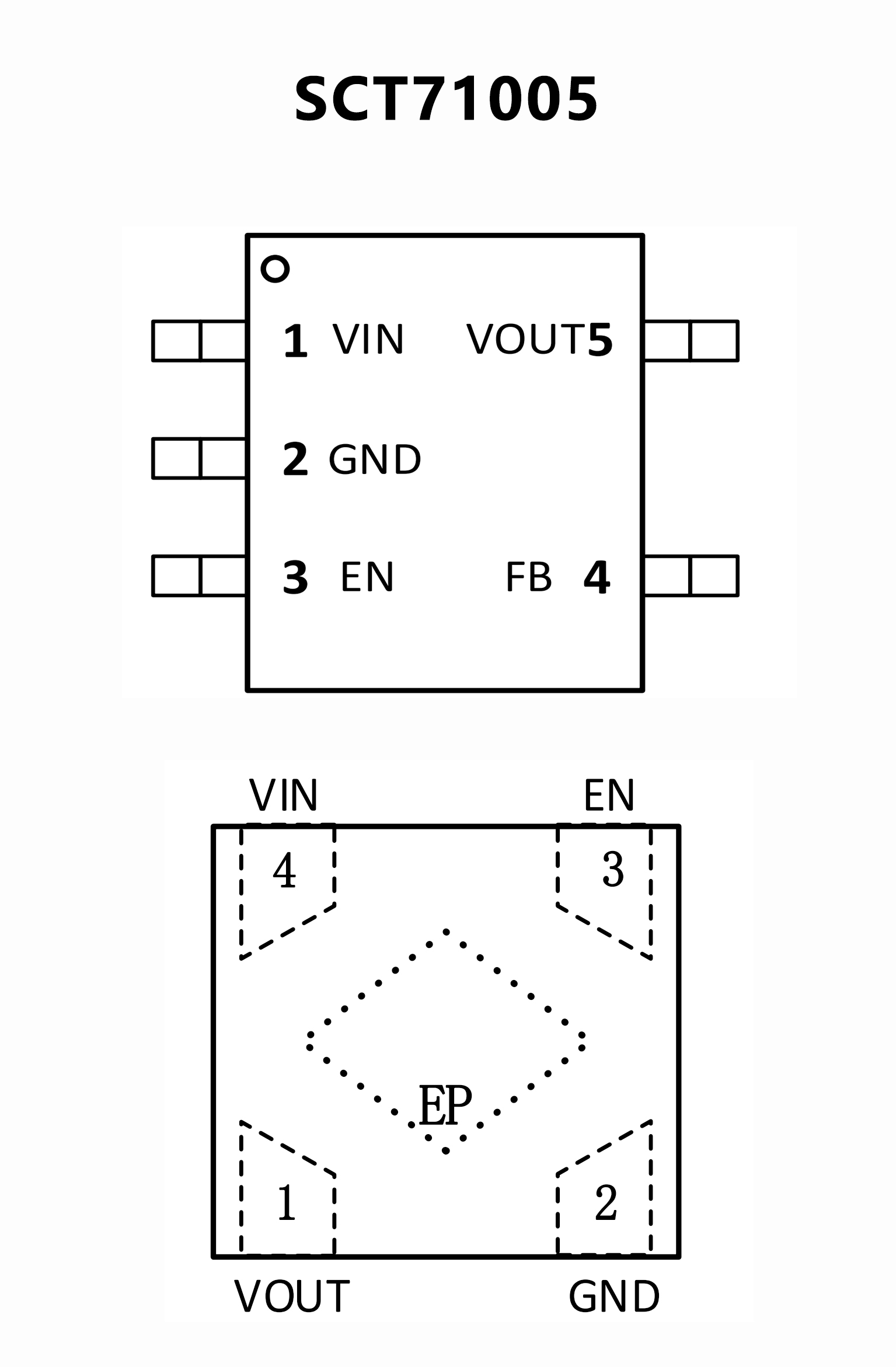

PIN CONFIGUTION
优势替代
FEATURES
• Operating Input Voltage Range: 1.9 V to 5.5 V
• Available in Fixed Voltage Option: 1.8 V to 5.14 V
• ±2% Accuracy Over Temperature
• Ultra Low Quiescent Current Typ. 18 A
• Standby Current: Typ. 0.1 A
• Very Low Dropout: 225 mV at 450 mA
• Ultra High PSRR: Typ. 98 dB at 20 mA, f = 1 kHz
• Ultra Low Noise: 10 VRMS
• Stable with a 1 F Small Case Size Ceramic Capacitors
• Available in TSOP−5 and XDFN4 Packages
• NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC−Q100
Qualified and PPAP Capable; Device Temperature Grade 1:
−40°C to +125°C Ambient Operating Temperature Range
• These Devices are Pb−Free, Halogen Free/BFR Free and are
RoHS Compliant

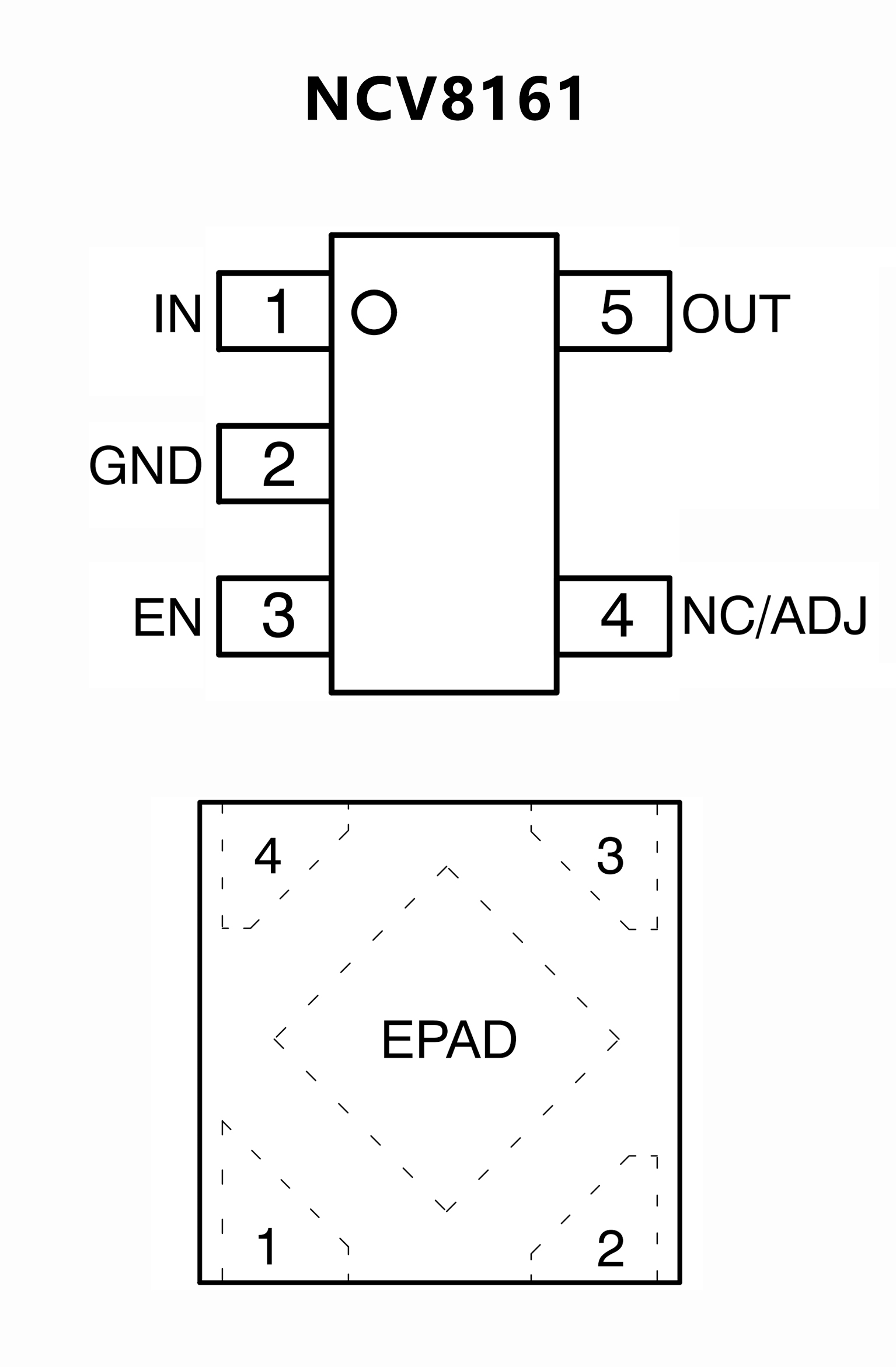

PIN CONFIGUTION
