1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005A01Q Replace TLV70025-Q1.
SCT71005A01Q SCT71005A01Q.pdf
FEATURES

• Qualified for Automotive Applications

• AEC-Q100 Qualified with the Following Results:
  - Device Temperature Grade 1: -40°C to 125°C
• Wide Input Range: 1.7V-6V
  (2.2V-6V for SCT71005A01Q)
• Maximum Output Current: 500mA
• Output Voltage:
  - 1.2V,1.8V and 3.3V (Fixed Output)
  - 0.7V~5V (Adjustable Output Version
    SCT71005A01Q)
  - 0.5V~5V (Adjustable Output Version
    SCT71005A02Q)
• Output Voltage Accuracy:
  - TJ = 25℃ ±1%
  - T= -40~ 125℃ ±2%
• Low Quiescent Current: 8uA
• Ultra-Low Shutdown Current: 0.02uA
• Low Dropout Voltage(Adjustable Output Version) :
  - 54mV at 200mA load current
  - 143mV at 500mA load current
• Support Output Capacitors Range:
  - 2.2uF~220uF
  - Low-ESR: 0.001Ω~ 5 Ω
• 1.4ms Internal Soft-start Time(VREF =500mV)
• 2.05ms Internal Soft-start Time(VREF =700mV)
• Integrated Short-Circuit Protection with OCFB
  (Over Current Fold-back) Feature
• Over-Temperature Protection
• Power-Good Feature is available
• Active Output Discharge
• Available Package: SOT23-5/ TDFN2x2-6/
  TDFN2x3-8

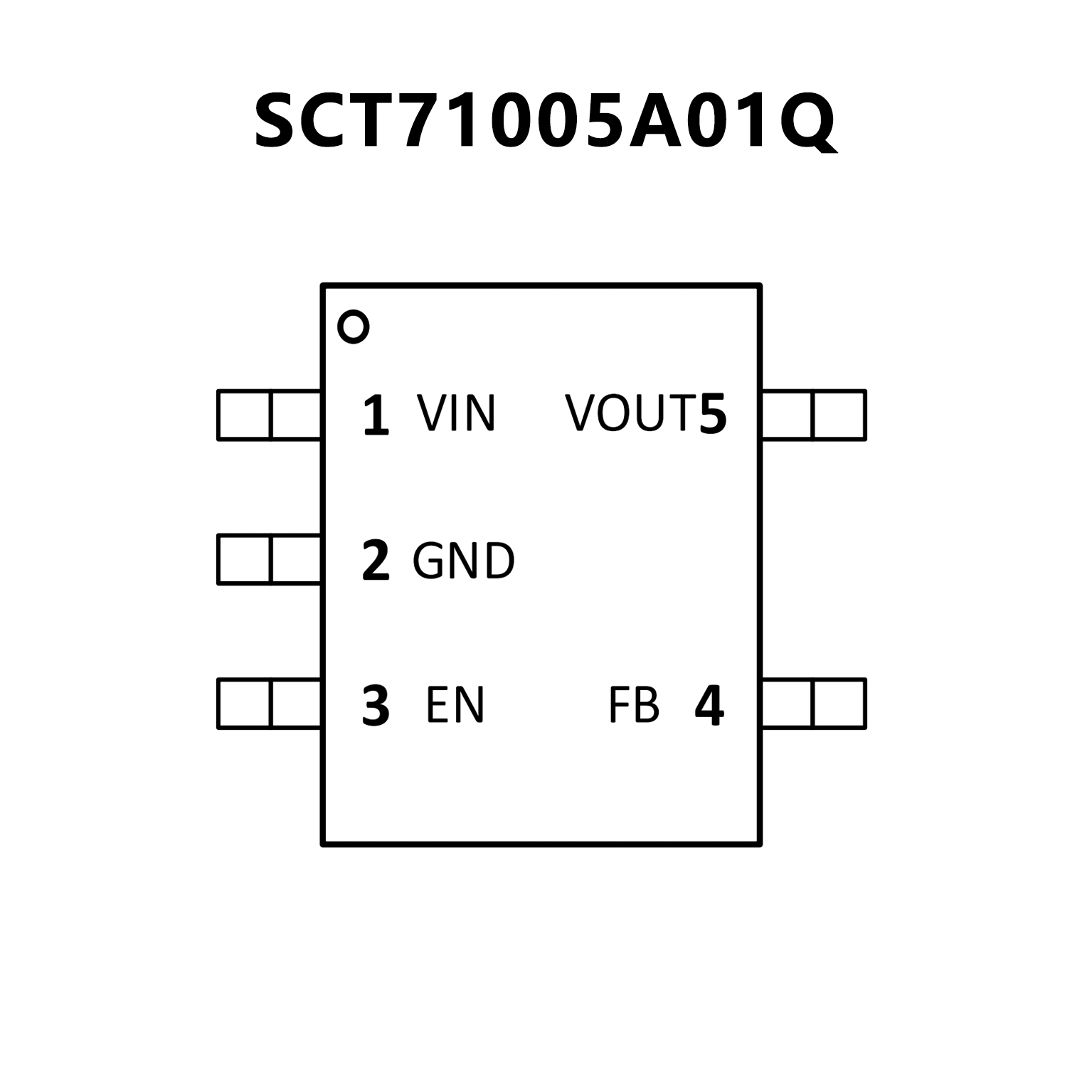

PIN CONFIGUTION
优势替代
TLV70025-Q1 TLV70025-Q1.pdf

No.14399

FEATURES

• AEC-Q100 qualified for automotive applications:

  – Temperature grade 1: –40°C to 125°C, TA
  – Device HBM ESD classification level H2
  – Device CDM ESD classification level C4B
• 2% accuracy
• Low IQ: 31µA
• Fixed output voltage combination possible from
1.9V to 4.8V
• High PSRR: 68dB at 1kHz
• Stable with effective capacitance of 0.1µF
• Thermal shutdown and overcurrent protection
• Latch-up performance meets 100mA per AEC
  Q100, level I
• Available in SOT-23-5 and SC70 packages



















PIN CONFIGUTION
