• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

  - Device Temperature Grade 1:-40°C to 125°C

    Ambient Operating Temperature Range

  - Device HBM ESD Classification Level H2

  - Device CDM ESD Classification Level C4B

• Low-Dropout 1-A Regulator with Enable

• Adjustable Output Voltage: 0.8 V to 6 V

• Wide-Bandwidth High PSRR:

  - 80 dB at 1 kHz

  - 60 dB at 100 kHz

  - 54 dB at 1 MHz

• Low Noise: 23.5 μVRms typical (100 Hz to

  100 kHz)

• Stable With 4.7-uF Output Capacitance

• Excellent Load and Line Transient Response

• 3% Overall Accuracy (Over Load, Line,

  Temperature)

• Over-Current and Overtemperature Protection

• Very Low Dropout: 170 mV Typical at 1 A

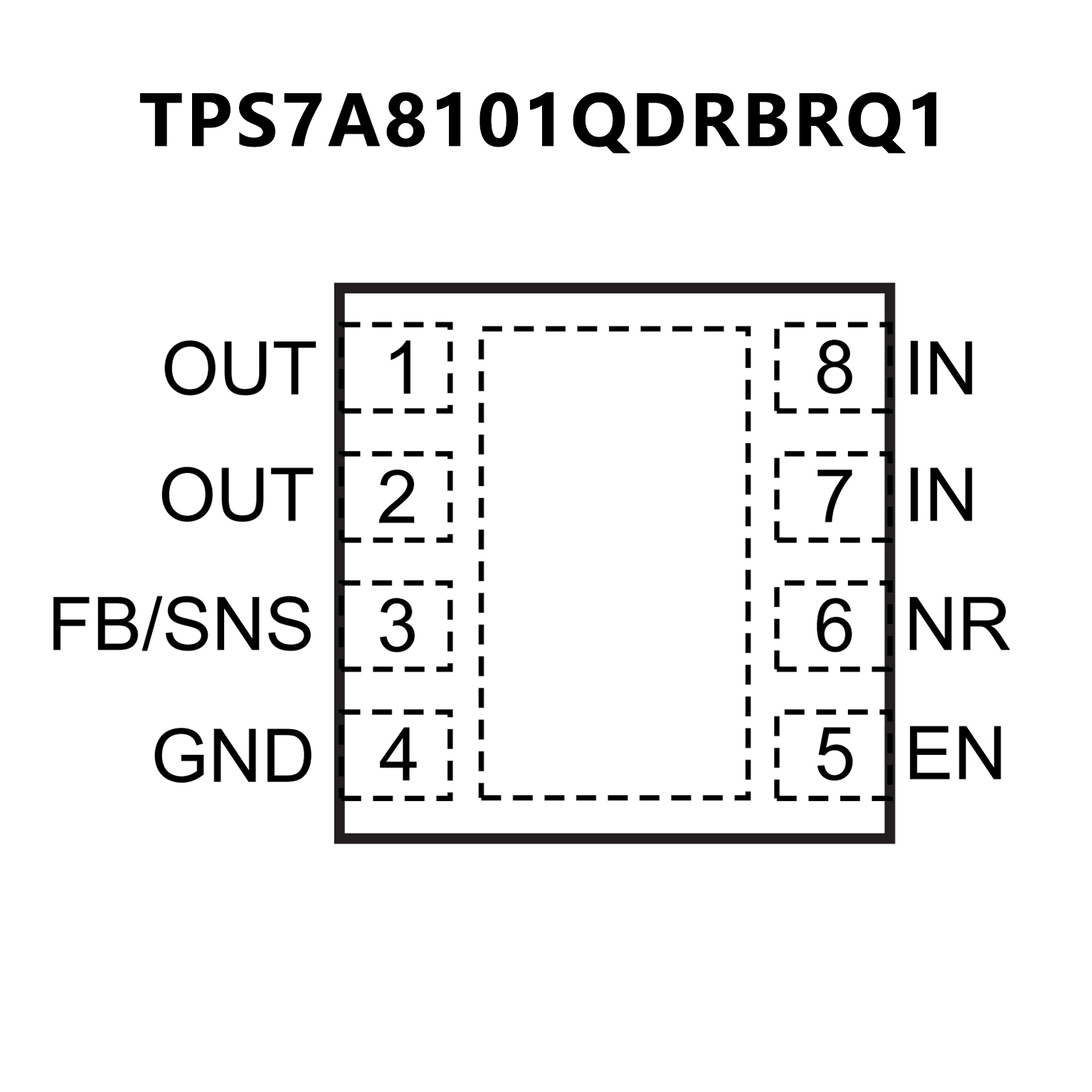

  Package: 3-mm x 3-mm SON-8
