SGM12UB1D2.pdf• High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
• Rated Peak Pulse Current: 2A
• 0.35pF (TYP) Channel Input Capacitance

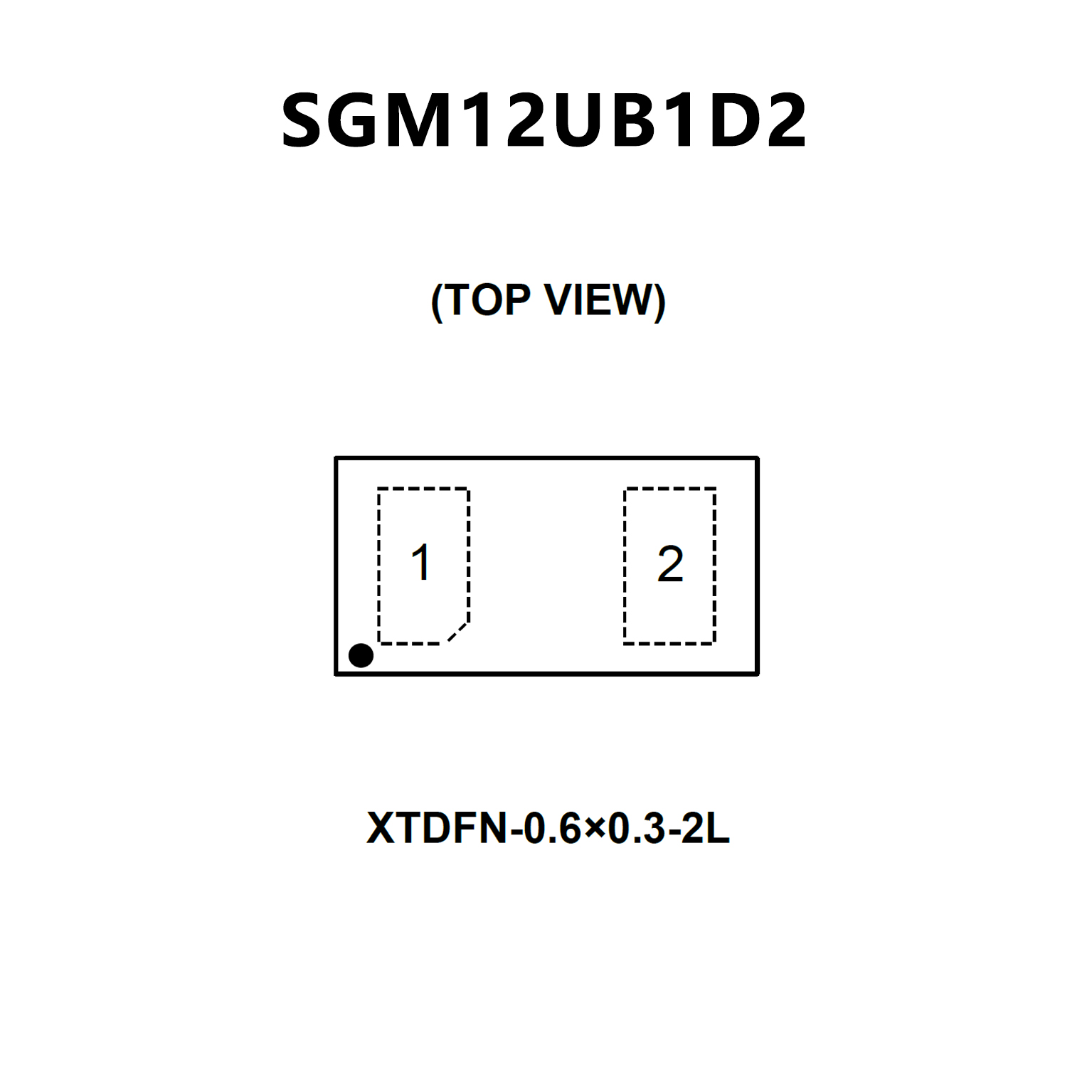

• Low Profile Package: UTDFN-1×0.6-2L and
XTDFN-0.6x0.3-2L
• Working Voltage: 12V and Below
• ESD Protect for 1 Line with Bi-directional

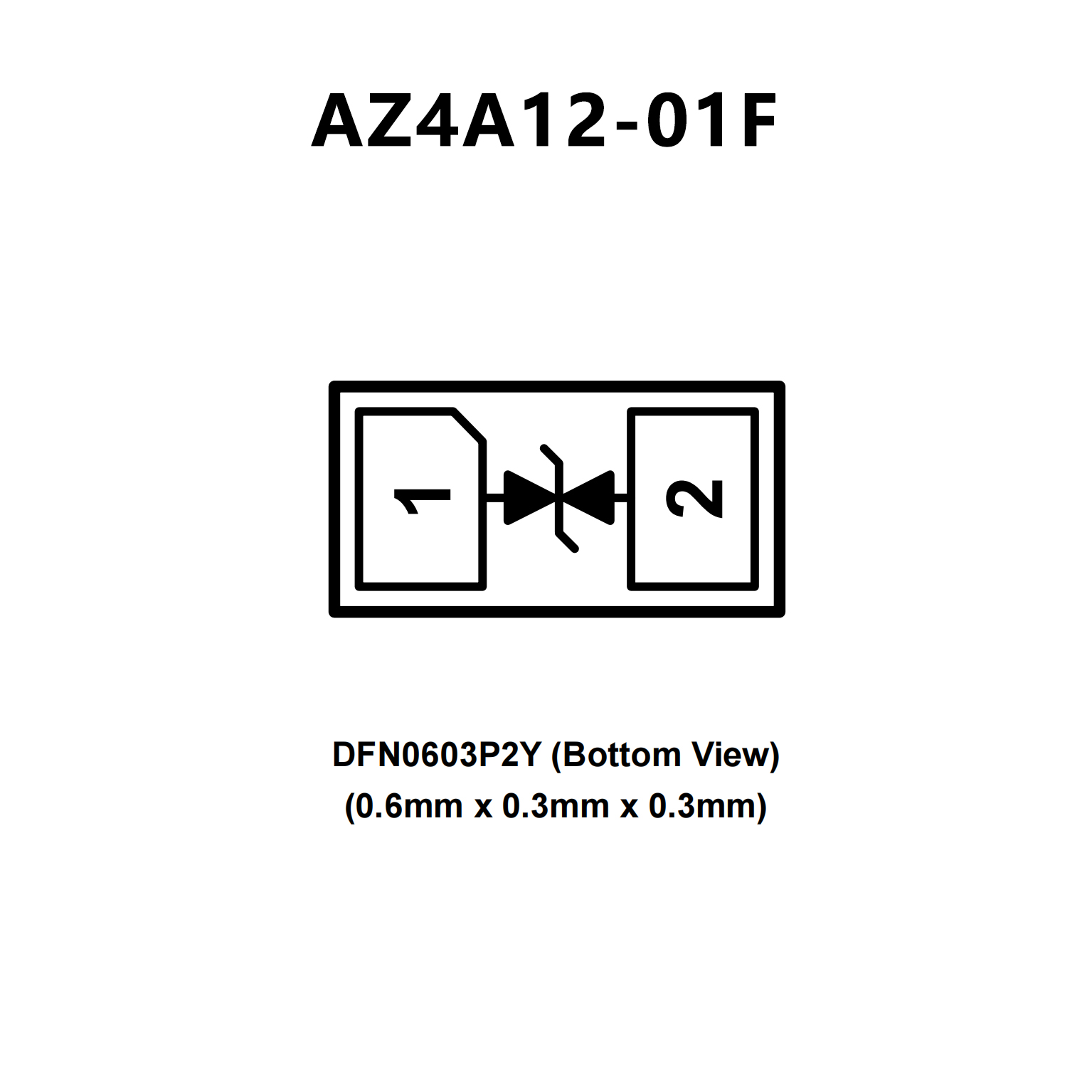

• Provide ESD protection for the protected line to
IEC 61000-4-2 (ESD) ±20kV (air), ±20kV (contact)
IEC 61000-4-4 (EFT) 50A (5/50ns)
IEC 61000-4-5 (Lightning) 3A (8/20µs)
Cable Discharge Event (CDE)
• 0201 small DFN package saves board space
• Protect one I/O line or one power line
• Fast turn-on and Low clamping voltage
• For operating voltage of 12V and below
• Solid-state silicon-avalanche and active circuit
triggering technology
• Green Part
