Ultra-Low Capacitance 1-Channel ESD Protection, SGM15UB1E2 P2P ESD103-B1-02EL.
SGM15UB1E2
SGM15UB1E2.pdf
SGM15UB1E2.pdfFEATURES
• High ESD Withstand Voltage:
IEC 61000-4-2: ±10kV (Air)
IEC 61000-4-2: ±10kV (Contact)
• Rated Peak Pulse Current: 2A
• 0.35pF (TYP) Channel Input Capacitance
• Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
• Working Voltage: 15V and Below

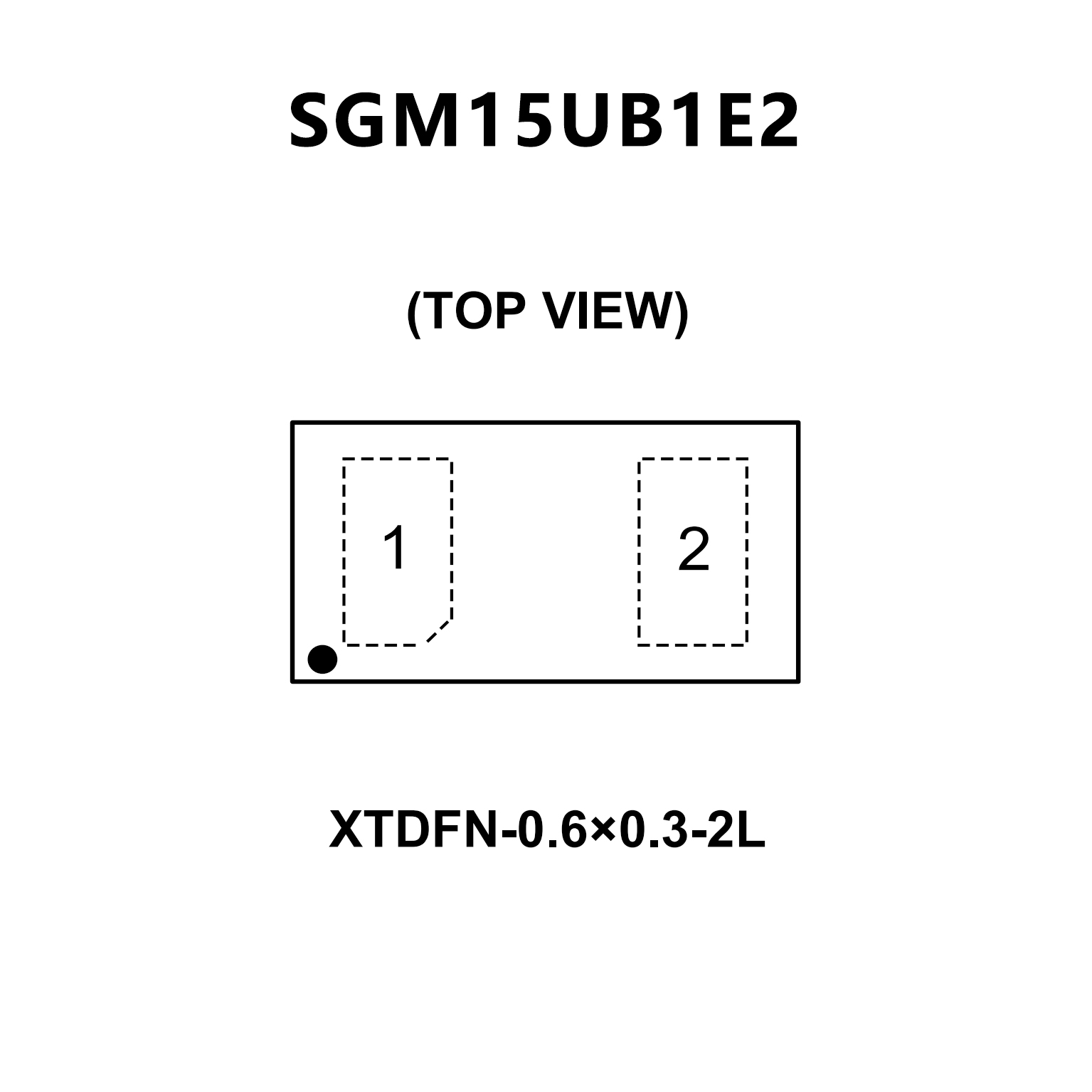

PIN CONFIGUTION
优势替代
FEATURES
• ESD/Transient protection of RF and ultra-high
speed signal lines according to:
– IEC61000-4-2: ±10 kV (contact)
• Extremely low capacitance CL = 0.09 pF (typical) at f
= 1 GHz
• Maximum working voltage: VRWM = ±15 V
• Very low reverse current: IR < 0.1 nA (typ.)
• Very low series inductance down to 0.2 nH typical
(TSSLP-2-4)
• Extremely small form factor down to 0.62 x 0.32 x 0.31 mm²
• Pb-free package (RoHS compliant)

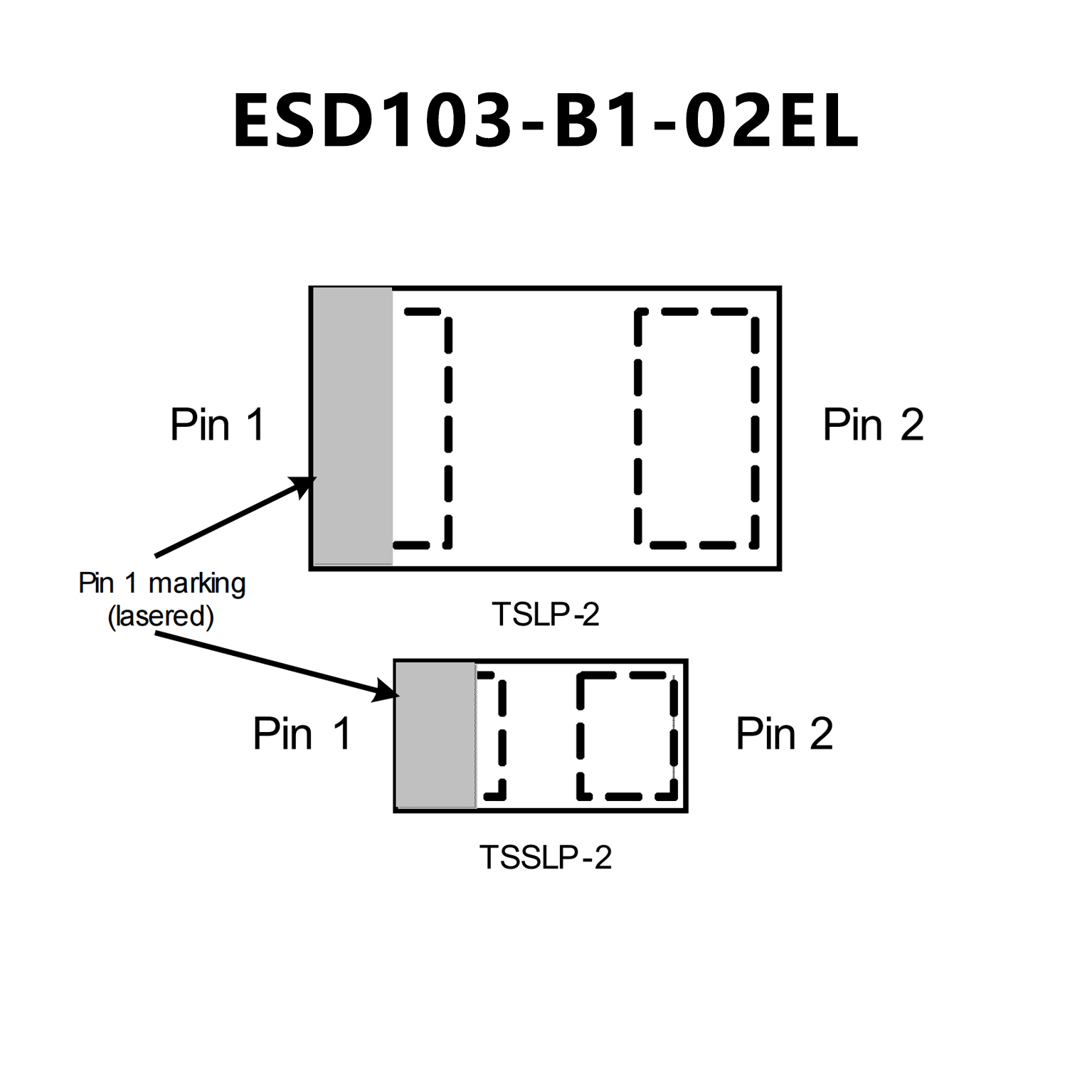

PIN CONFIGUTION
