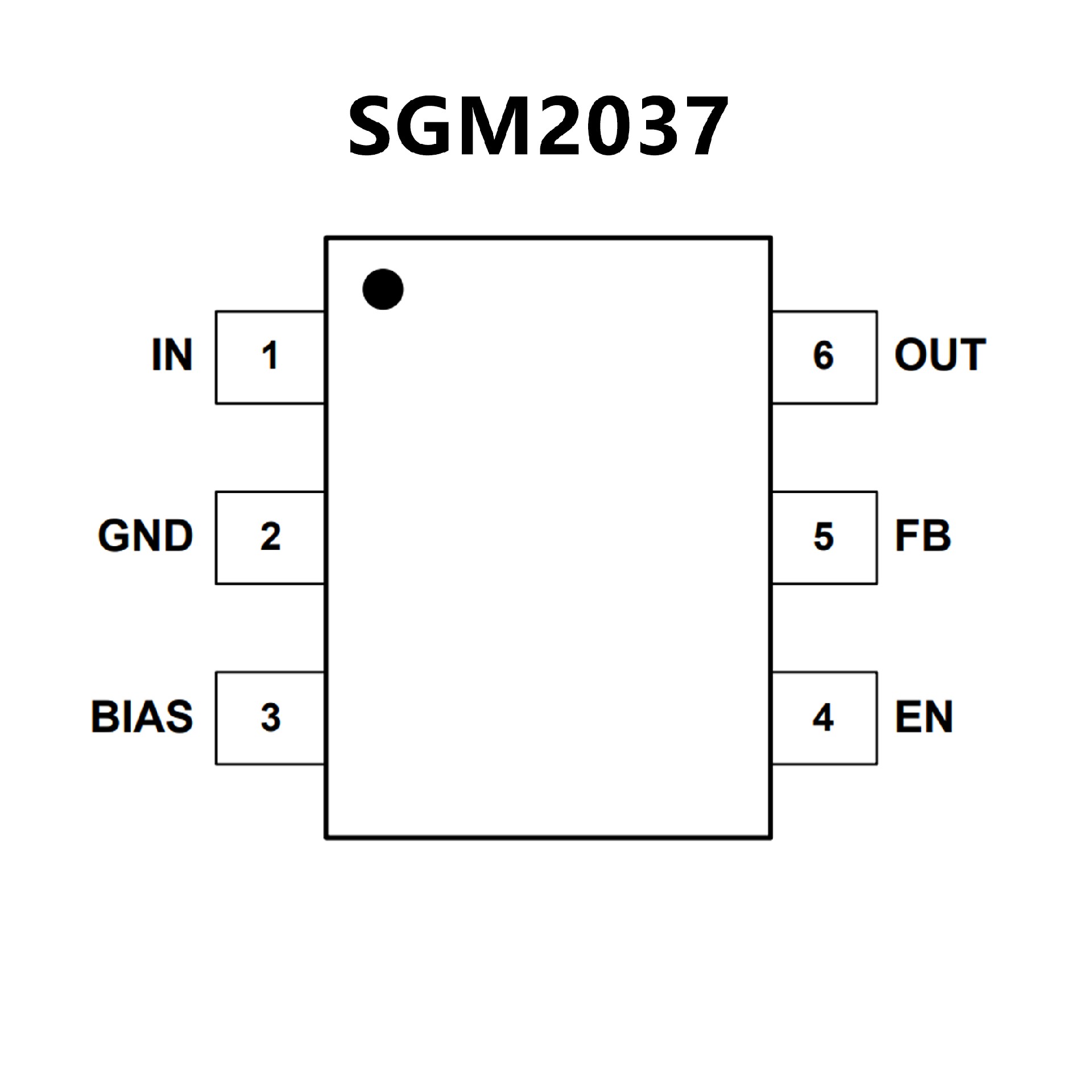

SGM2037-2.5XN5G.pdf• 500mA Nominal Output Current
• Input Voltage Range: 0.8V to 5.5V
• Bias Voltage Range: 2.5V to 5.5V
• Fixed Output Voltages: 0.8V, 0.9V, 1.0V,
1.05V, 1.1V, 1.15V, 1.2V, 1.25V, 1.3V, 1.5V,
1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 3.6V
• Adjustable Output Voltage Range: 0.8V to 3.6V
• Output Voltage Accuracy: ±0.8% at +25℃
• Low Dropout Voltage: 120mV (TYP) at 500mA
• Very Low Bias Input Current: 37μA (TYP)
• Very Low Bias Input Current in
Shutdown: 0.01μA (TYP)
• Low Noise: 25μVRMS (TYP)
• Over-Current and Over-Temperature Protections
• Fast Load Transient Response
• Logic Level Enable Input for ON/OFF Control
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOT-23-5, SOT-23-6
and UTDFN-1.2×1.2-6L Packages

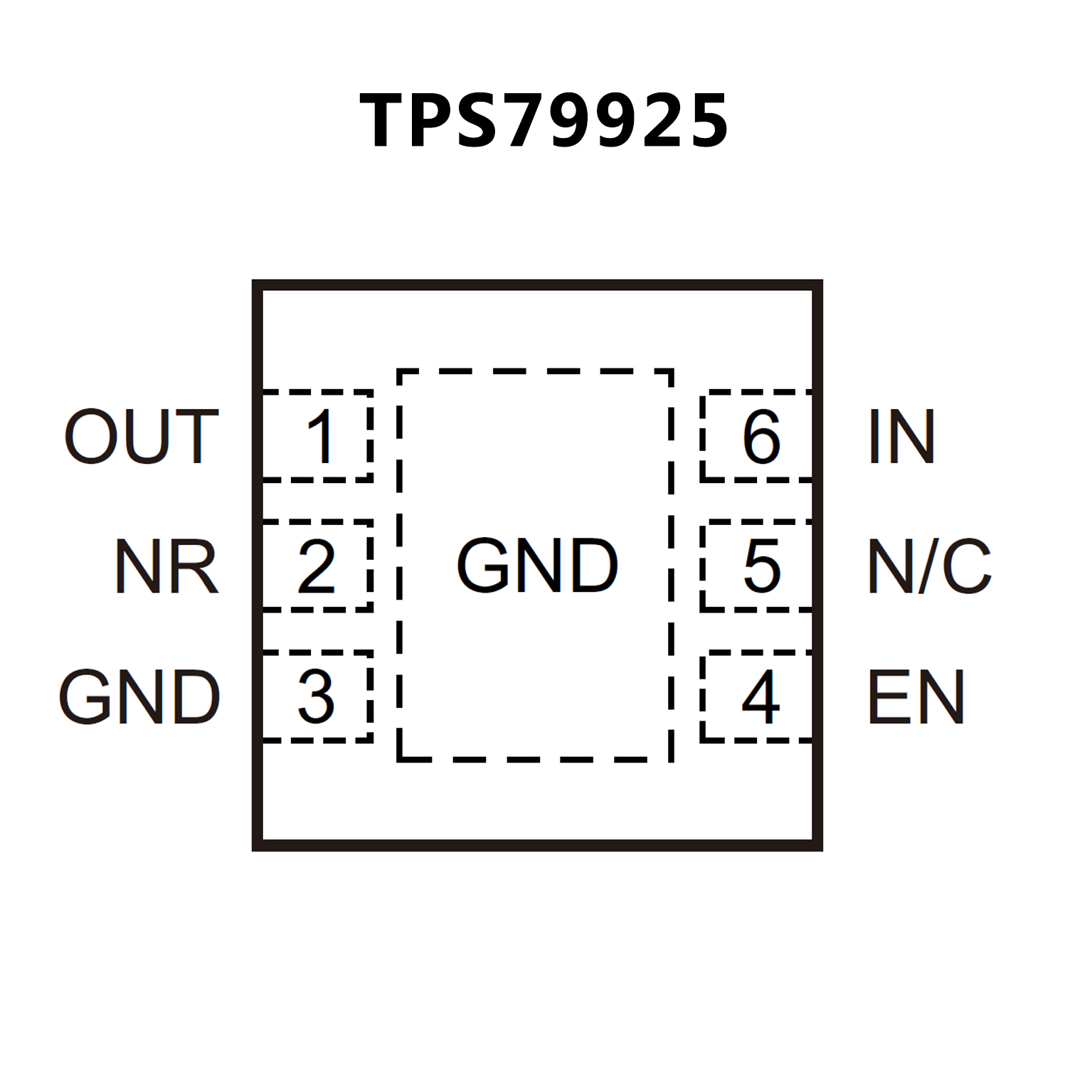

• 200-mA Low-Dropout Regulator With EN
• Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2 V to 4.5 V Using Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20 V to 6.5 V
• Inrush Current Protection with EN Toggle
• Low IQ: 40 μA
• High PSRR: 66 dB at 1 kHz
• Stable with a Low-ESR, 2-μF Typical Output Capacitance
• Excellent Load and Line Transient Response
• 2% Overall Accuracy (Load, Line, and Temperature)
• Very Low Dropout: 100 mV
• Package: 5-Bump, Thin, 1-mm × 1.37-mm DSBGA
