800mA, Low Noise, Low Quiescent Current,High PSRR, Low Dropout Linear Regulator, SGM2212 P2P TLV1117-18.
SGM2212
SGM2212.pdf
SGM2212.pdfFEATURES
• Input Voltage Range: 2.7V to 20V
• Output Current: 800mA
• Fixed Output Voltages:1.8V, 2.5V, 2.8V, 3.3V, 5V
• Adjustable Output Voltage Range: 1.25V to 15V
• Output Voltage Accuracy: ±1% at +25℃
• Line Regulation: 0.012% (MAX)
• Load Regulation: 0.4% (MAX)
• Stable with Small Case Size Ceramic Capacitors
• Output Current Limit
• Thermal Shutdown Protection
• -40℃ to +125℃ Operating Temperature Range
• Available in Green TO-252-2, TO-263-3,
SOT-223-3 and TDFN-3×3-8L Packages

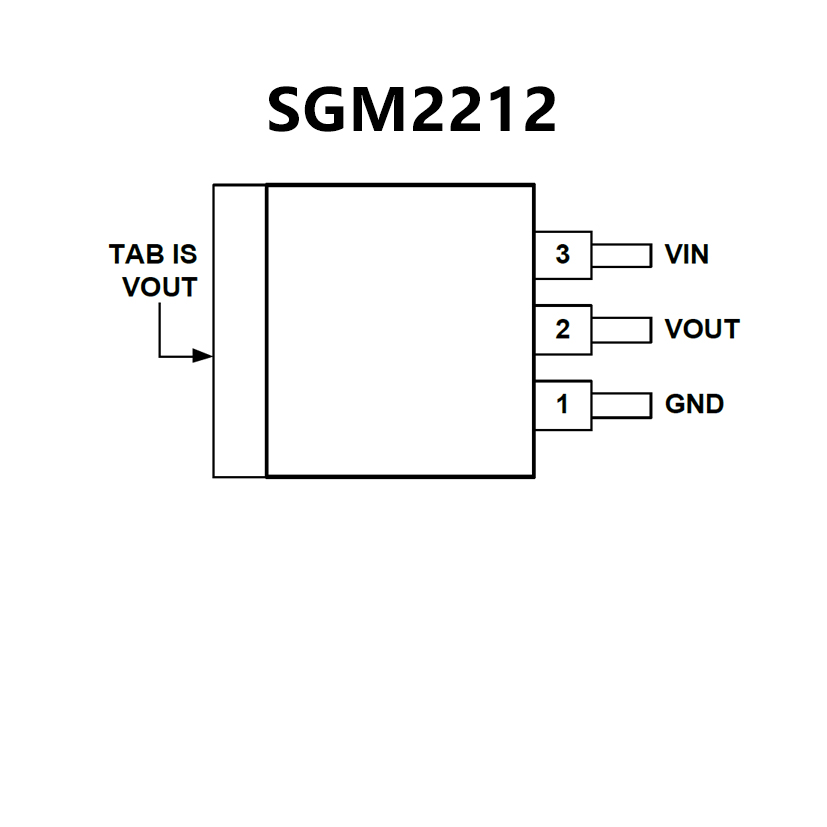

PIN CONFIGUTION
优势替代
FEATURES
• 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V, and
Adjustable-Output Voltage Options
• Output Current of 800 mA
• Specified Dropout Voltage at Multiple Current Levels
• 0.2% Line Regulation Maximum
• 0.4% Load Regulation Maximum

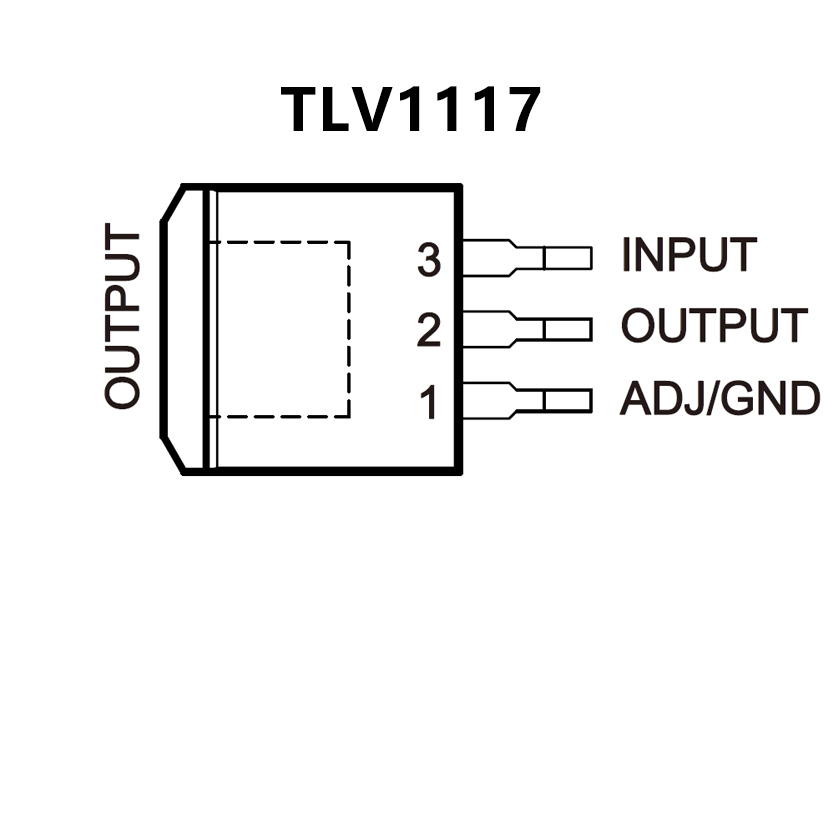

PIN CONFIGUTION
