36V, 2µA IQ, Peak 200mA, Low Dropout Voltage Linear Regulator, SGM2243Q Replace RTQ2569.
SGM2243Q.pdf优势替代
FEATURES
• AEC-Q100 Grade 1 Qualified
• Ultra low Quiescent Current 2A (typ.)
• ±2% Output Accuracy
• 100mA Continuous Output Current
• Operating Input Voltage : 3.5V to 36V
• Low dropout voltage : 200mV at 10mA
• Fixed Output Voltage : 2.5V to 12V with 0.1V Per Step
• Current Limit Protection
• Over-Temperature Protection
• RoHS Compliant and Halogen Free

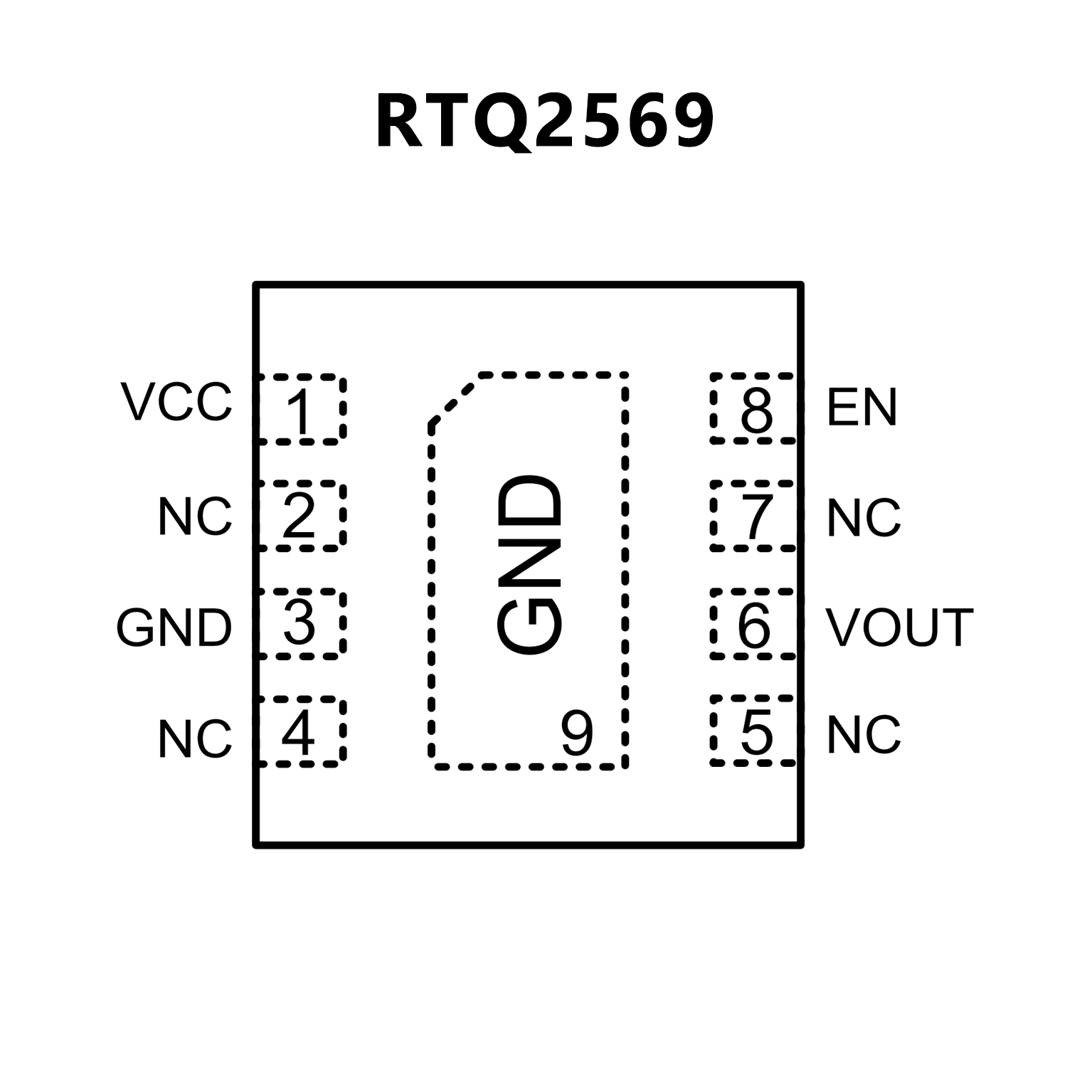

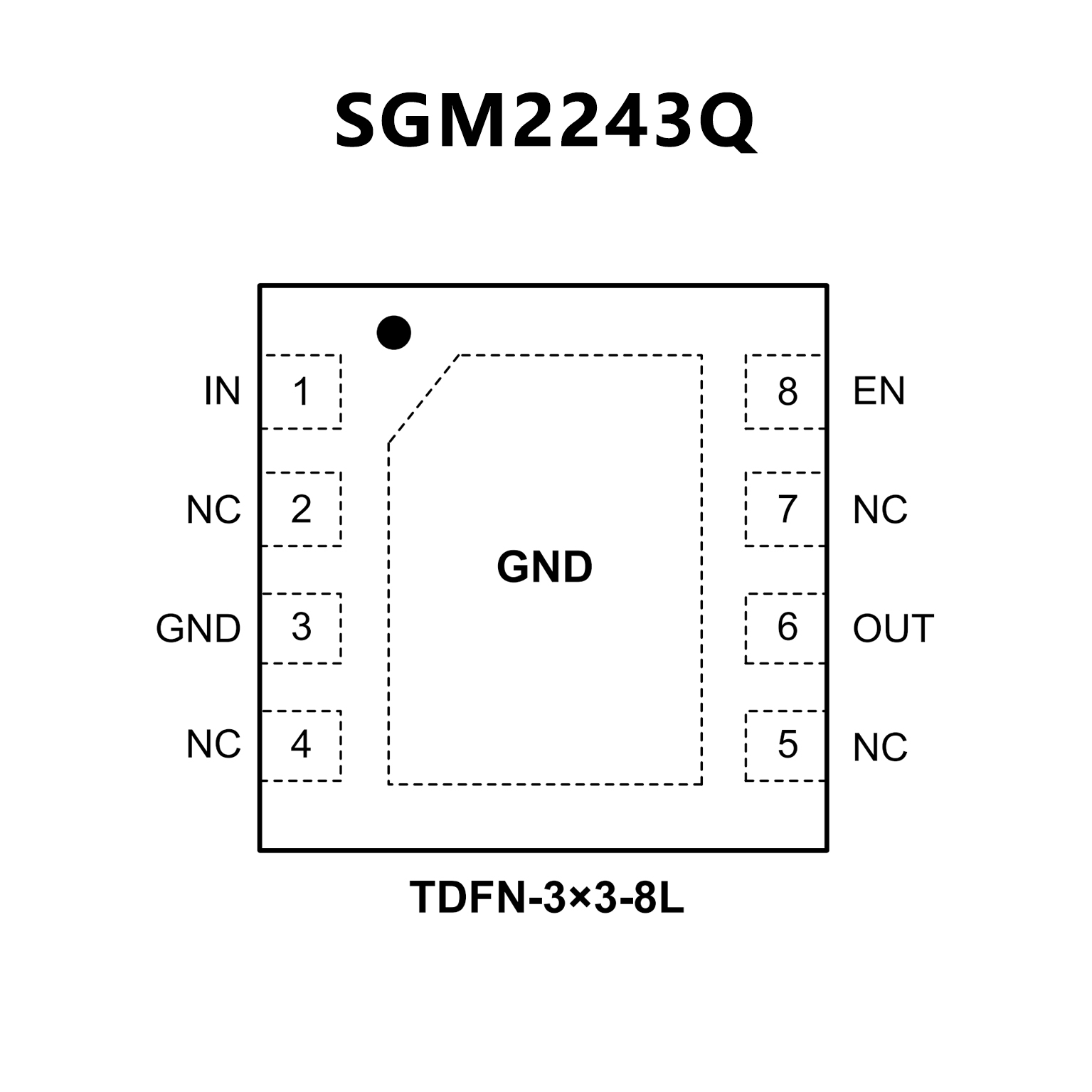

PIN CONFIGUTION
