1MHz, General Purpose CMOS Operational Amplifier, SGM2358 Replace TLV6002.
SGM2358
SGM2358.pdf
SGM2358.pdfFEATURES
• Low Cost
• Rail-to-Rail Output
1.7mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 1MHz
• Very Low Input Bias Currents: 10pA
• Input Common-Mode Voltage Range Includes
Ground
• Operates from 3 V to 5.5 V
• Small Packaging: SO-8

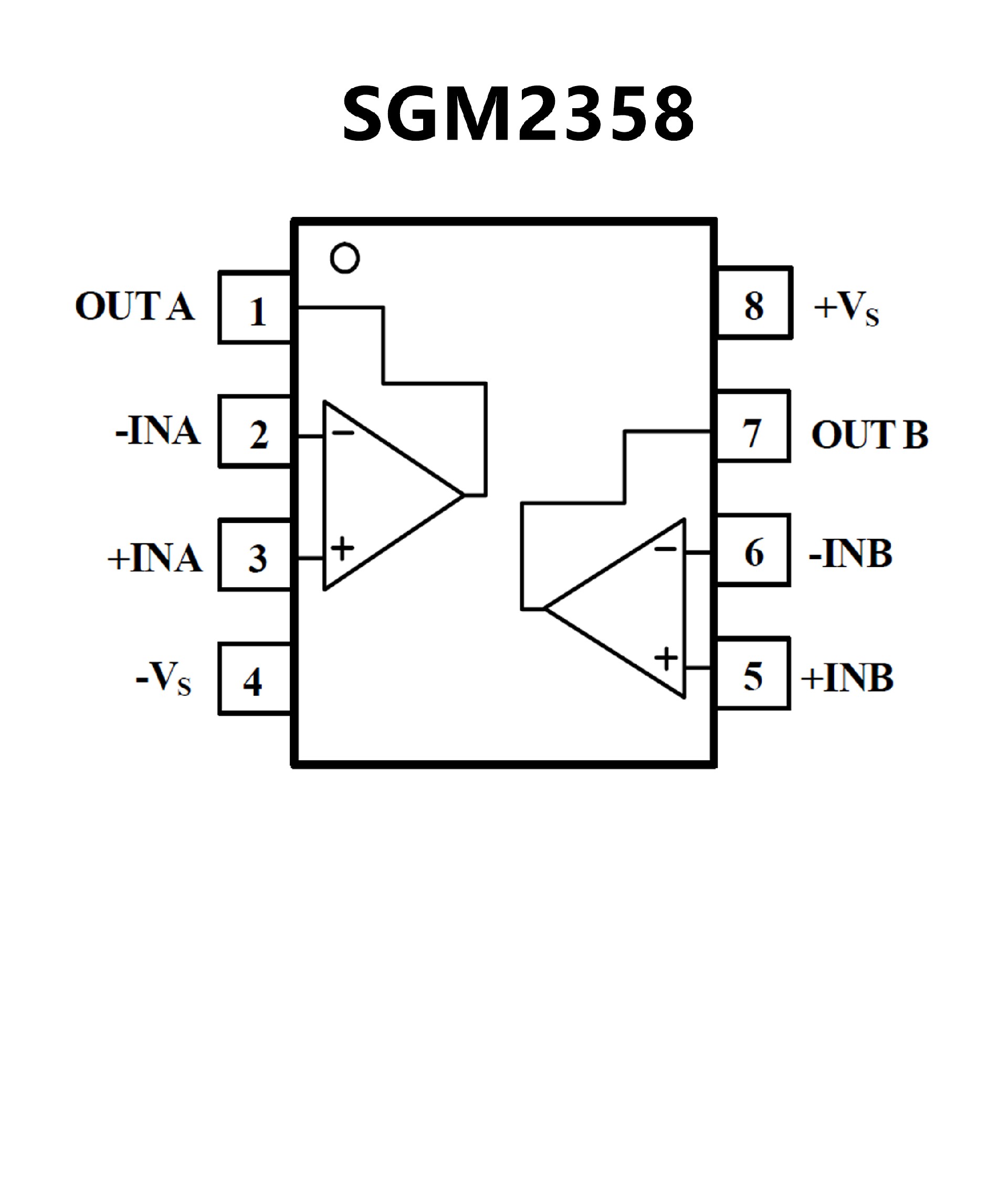

PIN CONFIGUTION
优势替代
FEATURES
• Precision Amplifiers for
Cost-Sensitive Systems
• Low Quiescent Current: 75 μA/ch
• Supply Range: 1.8 V to 5.5 V
• Input Voltage Noise Density:
28 nV/√Hz at 1 kHz
• Rail-to-Rail Input/Output
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 1.0 pA
• Low Offset Voltage: 0.75 mV
• Unity-Gain Stable
• Internal RF/EMI Filter
• Extended Temperature Range:
–40°C to +125°C

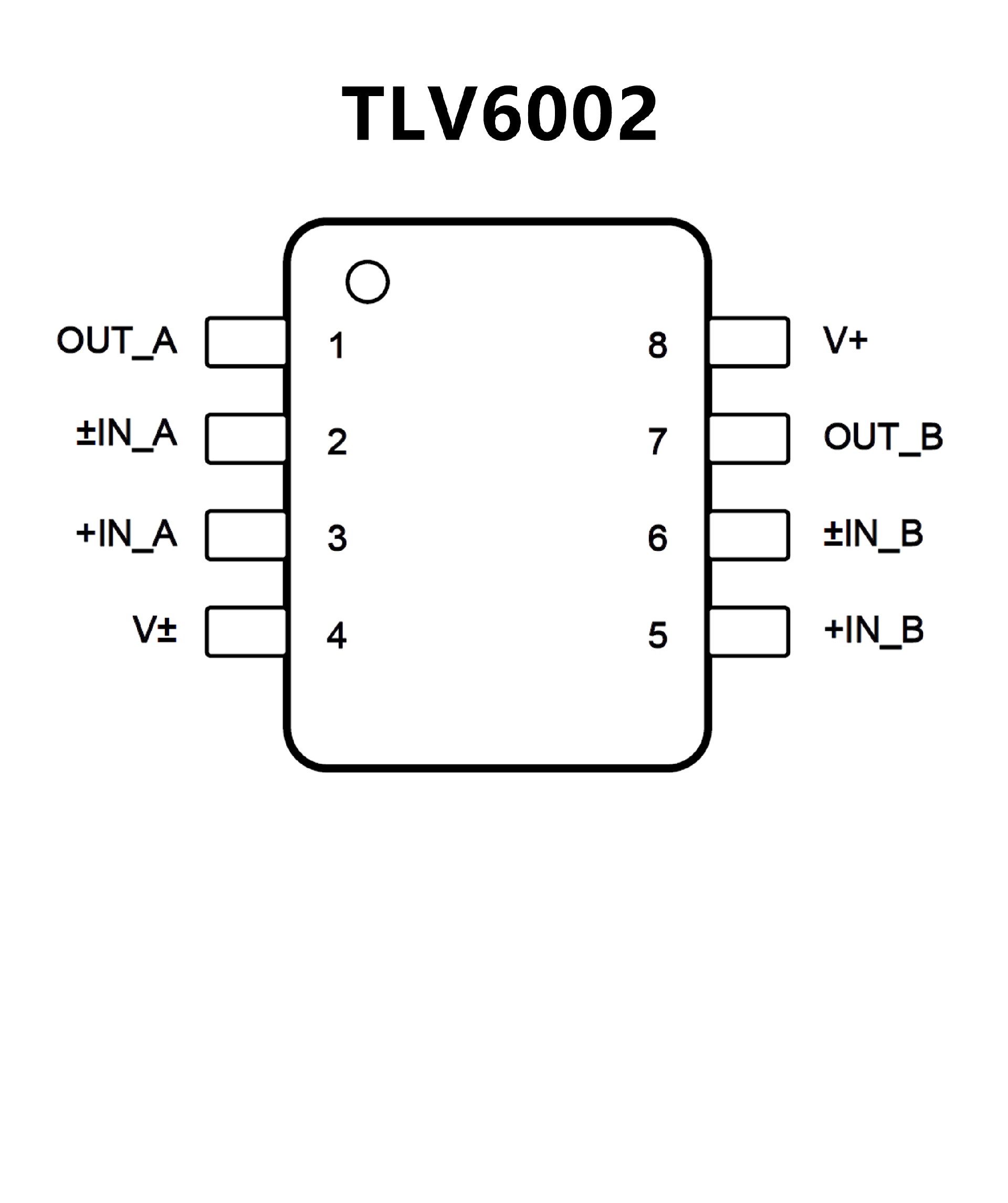

PIN CONFIGUTION
