Ultra Low On-Resistance, Negative Signal Passing, Dual SPDT Analog Switch Driver, P2P WAS4729.
SGM3718
SGM3718.pdf
SGM3718.pdfFEATURES
• Supply Voltage Range: 2.5V to 5V
• Ultra Low On-Resistance: 0.6Ω (TYP) at 4.5V
• -2V Low Distortion Negative Signal Passing
• Fast Switching Times
tON = 17ns (TYP)
tOFF = 24ns (TYP)
• High Off-Isolation: -57dB at 1MHz
• Low Crosstalk: -61dB at 1MHz
• Rail-to-Rail Input and Output Operation
• 1.8V Logic Compatible Control Pin
• Break-Before-Make Switching

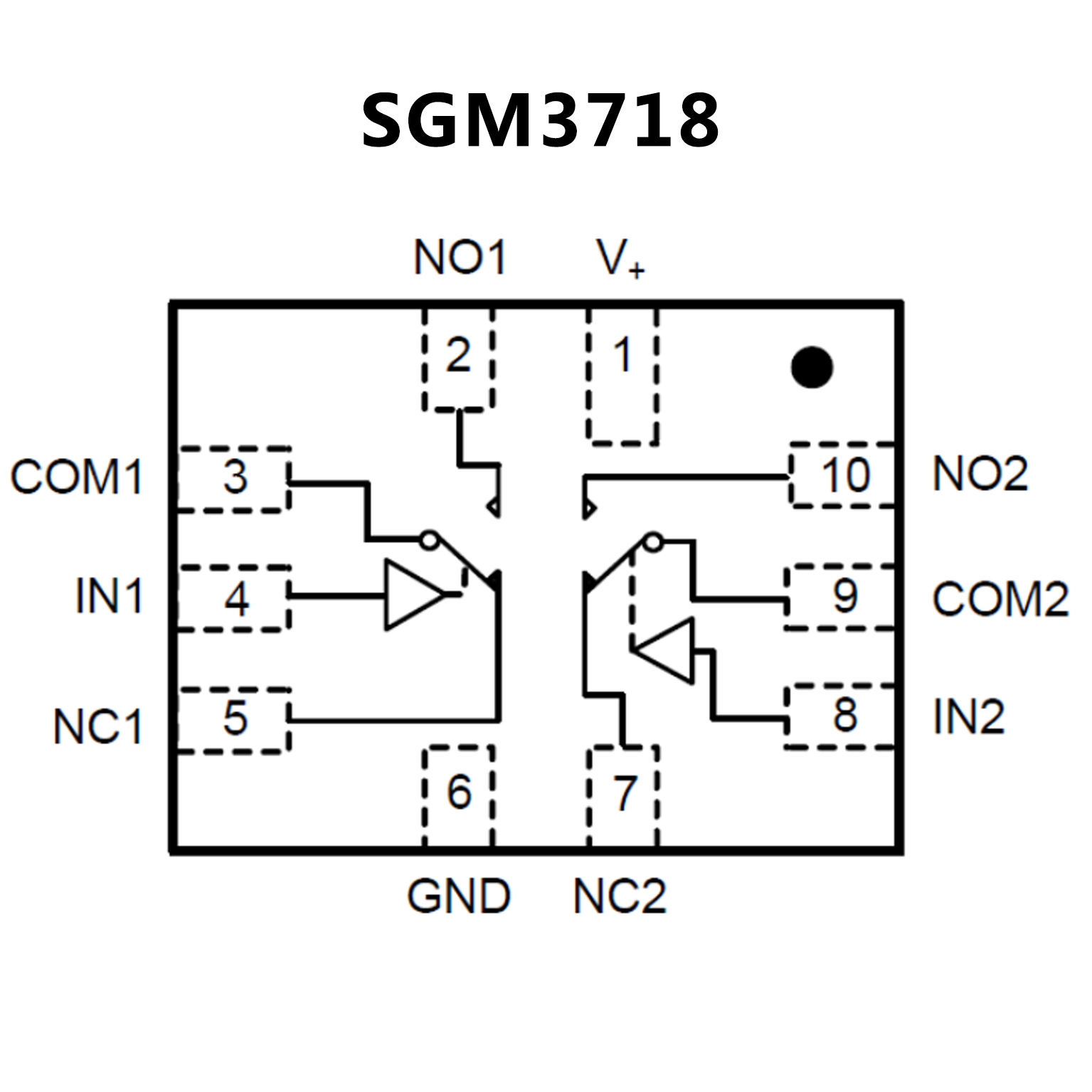

PIN CONFIGUTION
优势替代
FEATURES
• Supply voltage : 2.3 ~ 5.5V
• ultra-low On Resistance : 0.75Ω @ 3.6V
• High Off isolation : -81dB @ 1KHz
• Crosstalk Rejection : -83dB @ 1KHz
• -3dB Bandwidth : 80MHz
• THD for 2Vp-p @RL=32Ω : 0.05%
• Signal-to-Noise Ratio : 150dBV
• Break-Before-Make Switching
• HBM JEDEC: JESD22-A114
• IO to GND : ±8KV
• Power to GND : ±5KV
PIN CONFIGUTION
