• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

  – Device temperature grade 1: –40ºC to +125ºC

  ambient operating temperature range

  – Device HBM ESD classification level 2

• Voltage options: 2.5V, 3V, 3.3V, 4.096V, 5V

• Initial accuracy: ±0.05% (maximum)

• Temperature coefficient : A grade: 12 ppm/°C

  (maximum) B grade: 30 ppm/°C (maximum)

• Operating temperature range: −40°C to +125°C

• Output current: ±10 mA

• Low quiescent current: 100 μA (maximum)

• Output 1/f noise (0.1 Hz to 10 Hz): 15 µVPP/V

• Excellent long-term stability 30 ppm/1000 hrs

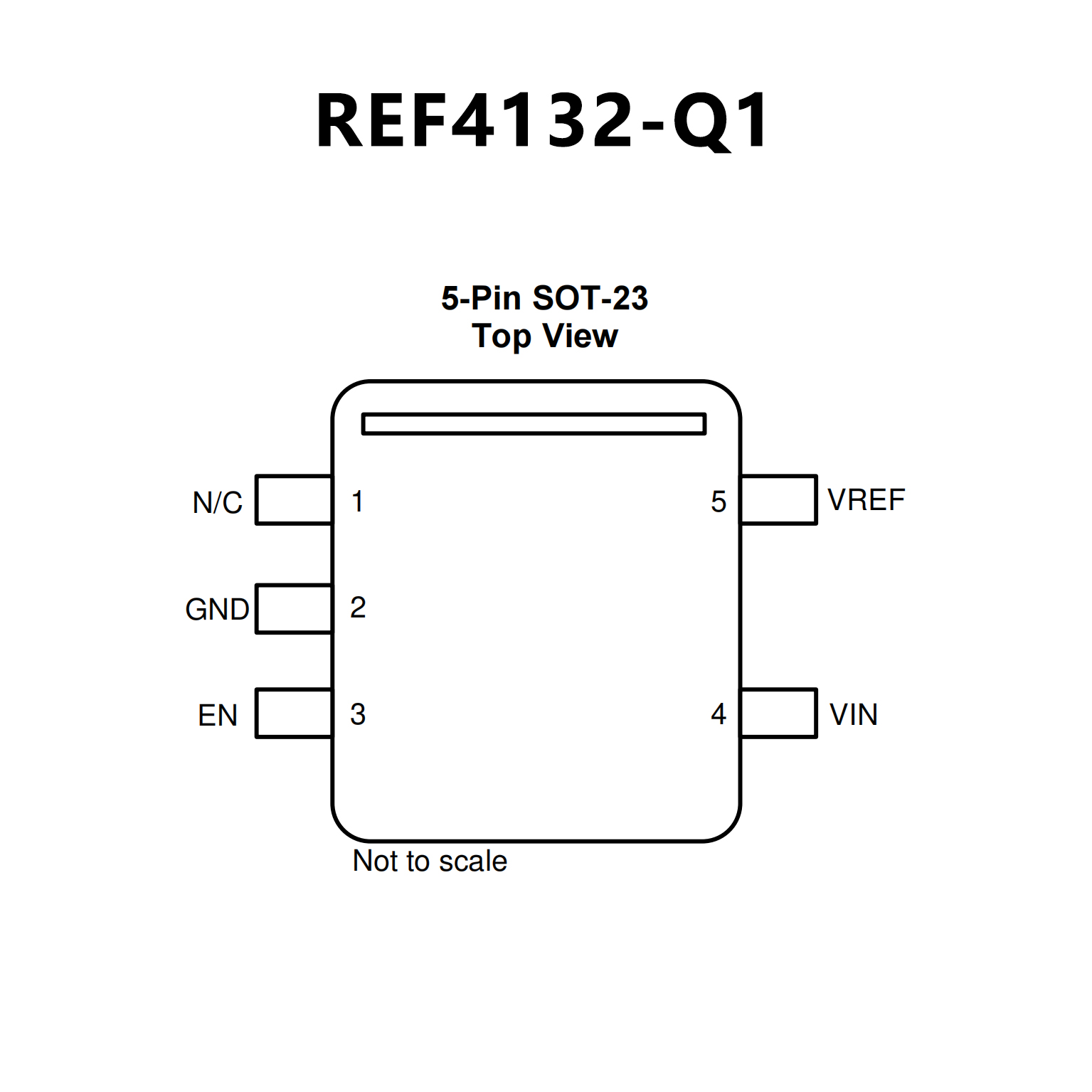

• Small footprint 5-pin SOT-23 package
