35ppm/℃, 245μA,CMOS Voltage Reference,SGM4027-2.5 Replace REF3125AIDBZT.
SGM4027-2.5
SGM4027-2.5.pdf
SGM4027-2.5.pdfFEATURES
• Low Dropout Voltage: 0.2V (MAX)
• High Output Current: 10mA (MAX)
• Limited Output Current: 25mA
• Stable Output CLOAD Range: 2μF to 22μF
• High Initial Accuracy: 0.1% (MAX)
• Low Temperature Drift:
35ppm/℃ (MAX) from -40℃ to +125℃
• Low Quiescent Current: 245μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOT-23 Package

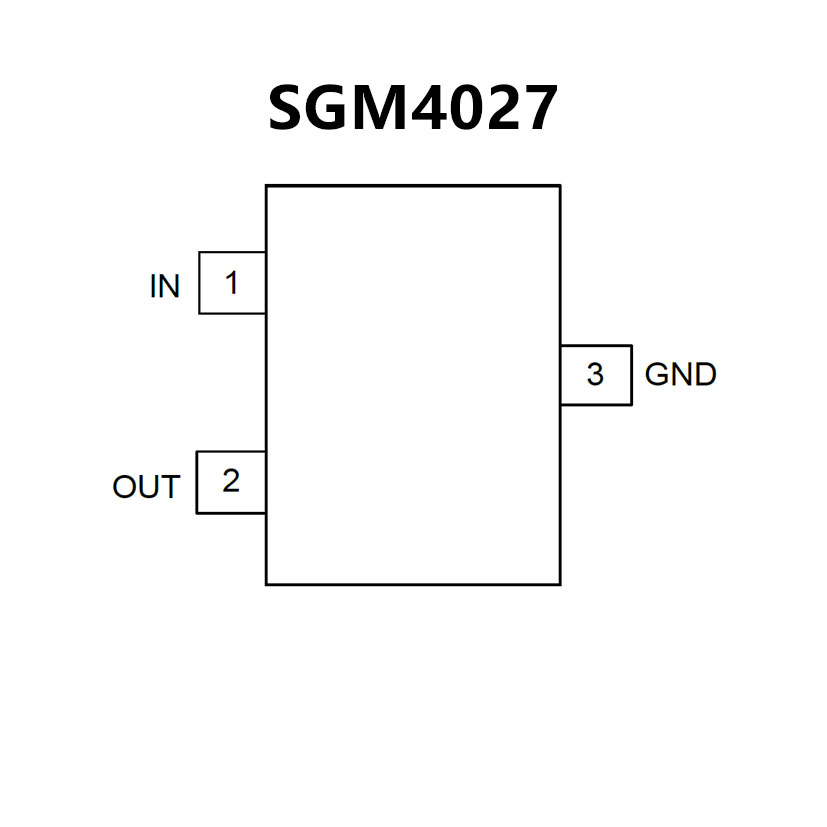

PIN CONFIGUTION
优势替代
FEATURES
• MicroSize Package: SOT23-3
• Low Dropout: 5 mV
• High Output Current: ±10 mA
• High Accuracy: 0.2% Maximum
• Low IQ: 115 μA Maximum
• Excellent Specified Drift Performance:
15 ppm/°C (Maximum) from 0°C to +70°C
20 ppm/°C (Maximum) from –40°C to +125°C

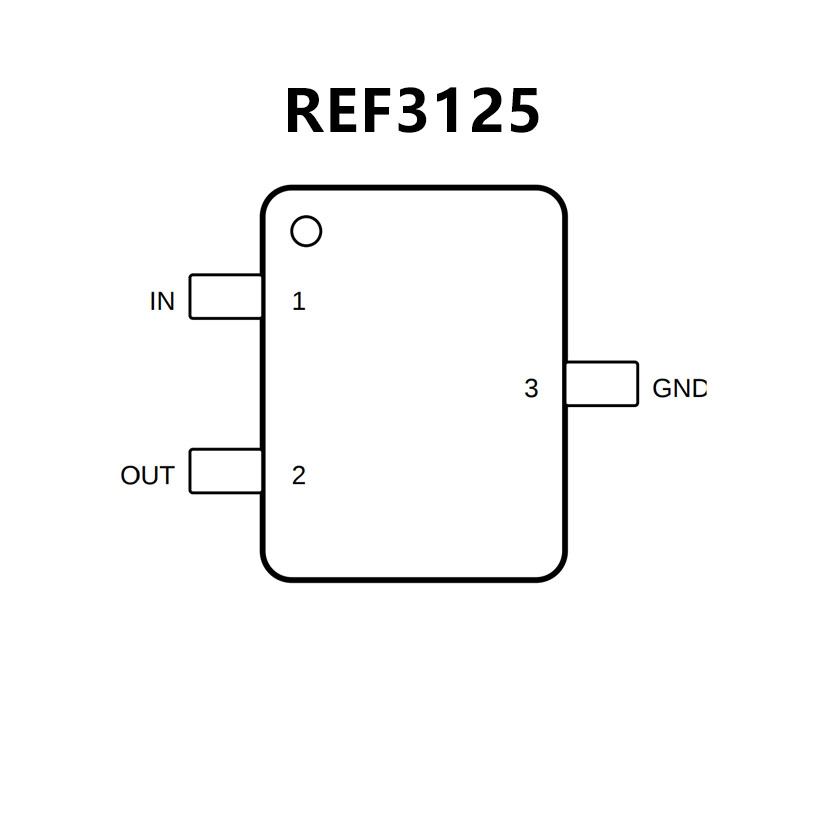

PIN CONFIGUTION
