SGM61032.pdf• 2.5V to 5.5V Input Voltage Range
• 0.6V to VIN Adjustable Output Voltage Range
• Up to 3A Output Current
• 95% Peak Efficiency
• 1.5MHz (TYP) Switching Frequency
• Low RDSON Internal Switches: 58.5mΩ/26.5mΩ
• Improved Light Load Efficiency with PSM
• Low Dropout with 100% Duty Cycle
• Reduce the IQ to 32μA (TYP) when Low Dropout
• 42μA Operating Quiescent Current
• 0.1μA (TYP) Shutdown Quiescent Current

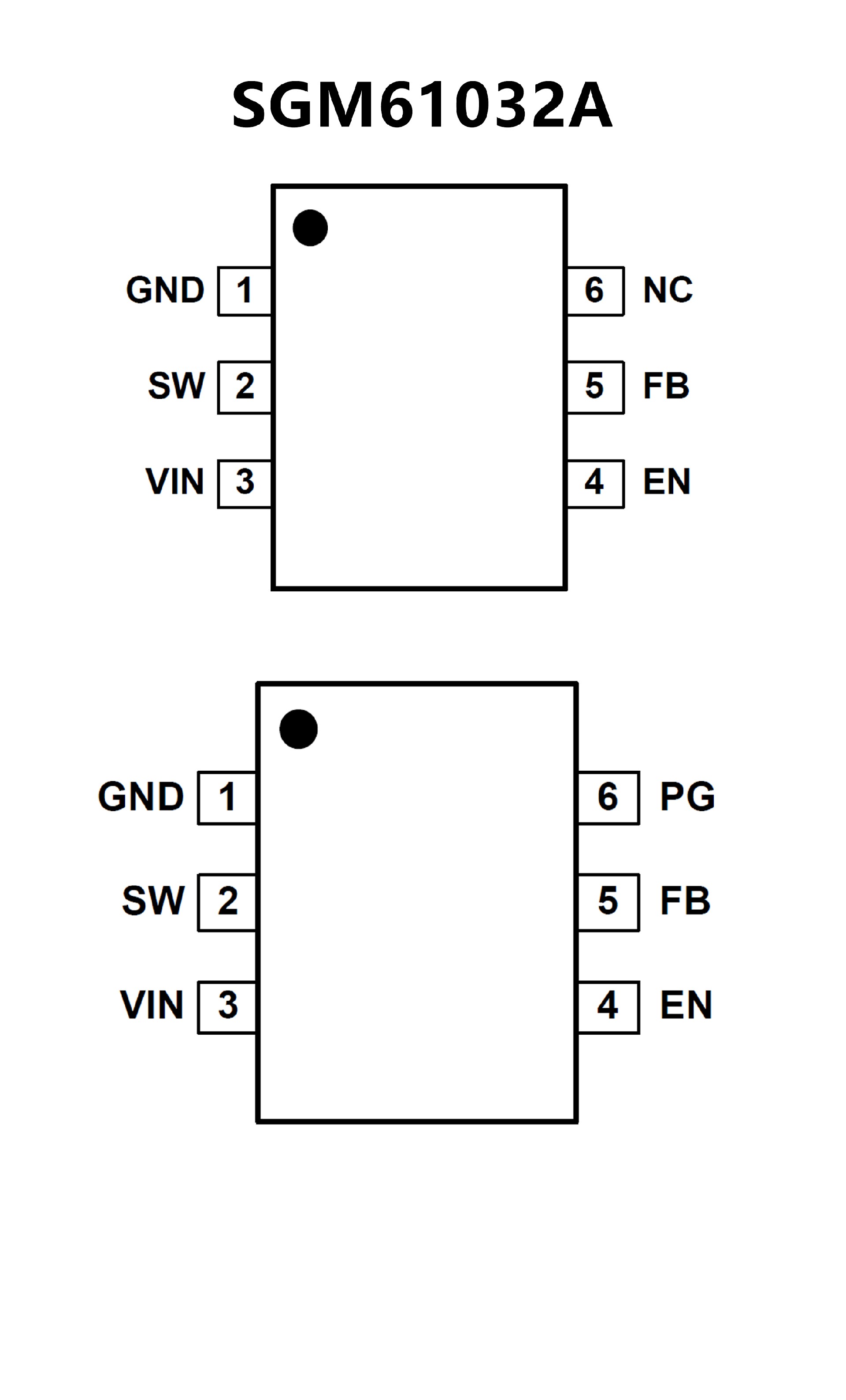

• PG Output (Except for the SGM61032A)
• Internal Soft-Start with Pre-biased Startup
• Output Discharge at Shutdown
• Hiccup Mode OCP/Short-Circuit Protection
• Thermal Shutdown Protection
• Available in a Green SOT-563-6 Package
• Up to 95% efficiency
• Low RDS(ON) power switches 56 mΩ / 32 mΩ
• 2.5-V to 5.5-V input voltage range
• Adjustable output voltage from 0.6-V to VIN
• Power save mode for light load efficiency
• 100% duty cycle for lowest dropout
• 35-μA operating quiescent current
• 1.5-MHz typical switching frequency
• Short circuit protection (HICCUP)
• Output discharge
• Power good output
• Thermal shutdown protection

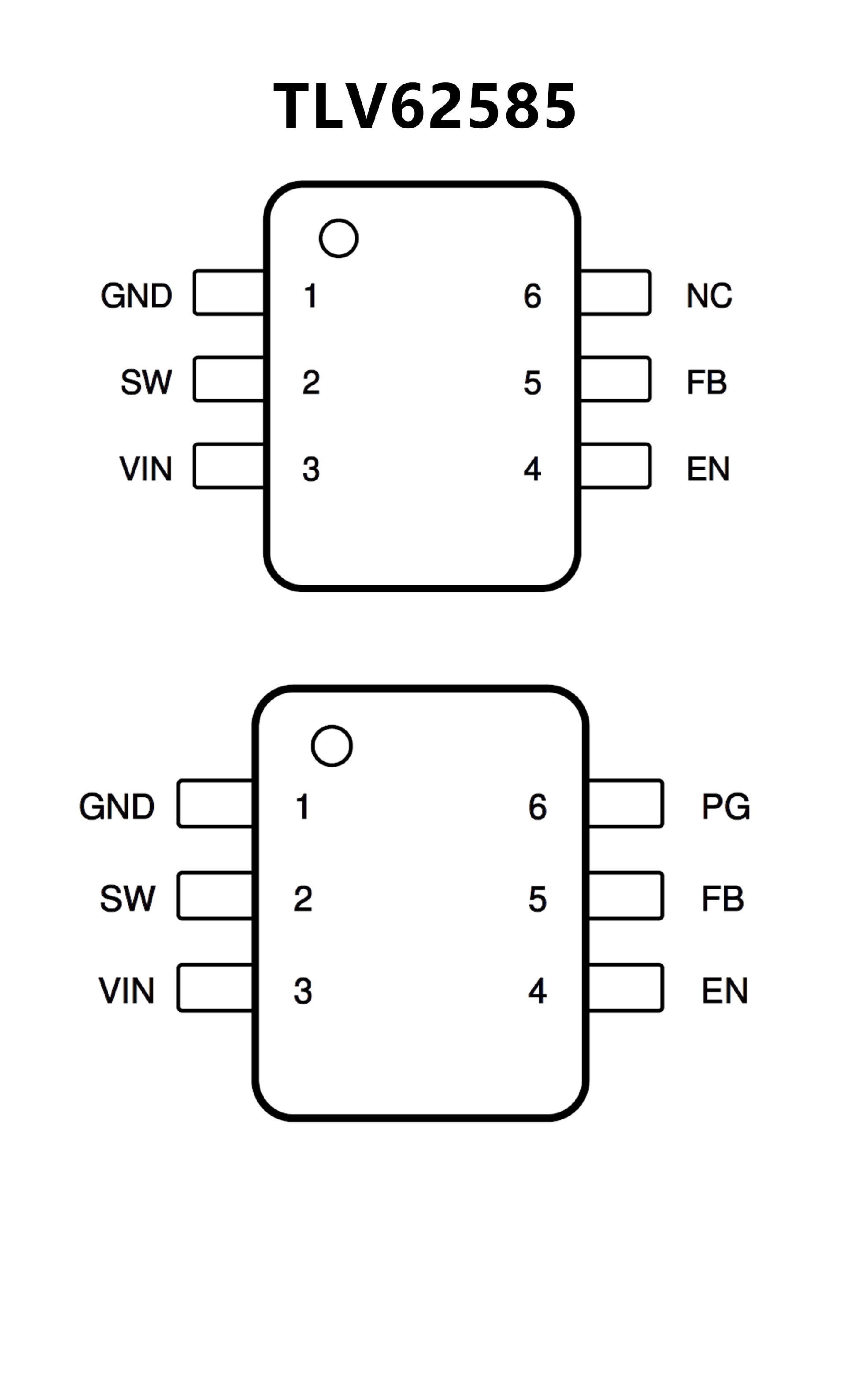

• Available in 2-mm × 2-mm QFN or 1.6-mm x 1.6-
mm SOT563 package
• Create a custom design using the TLV62585 with
the WEBENCH® Power Designer
