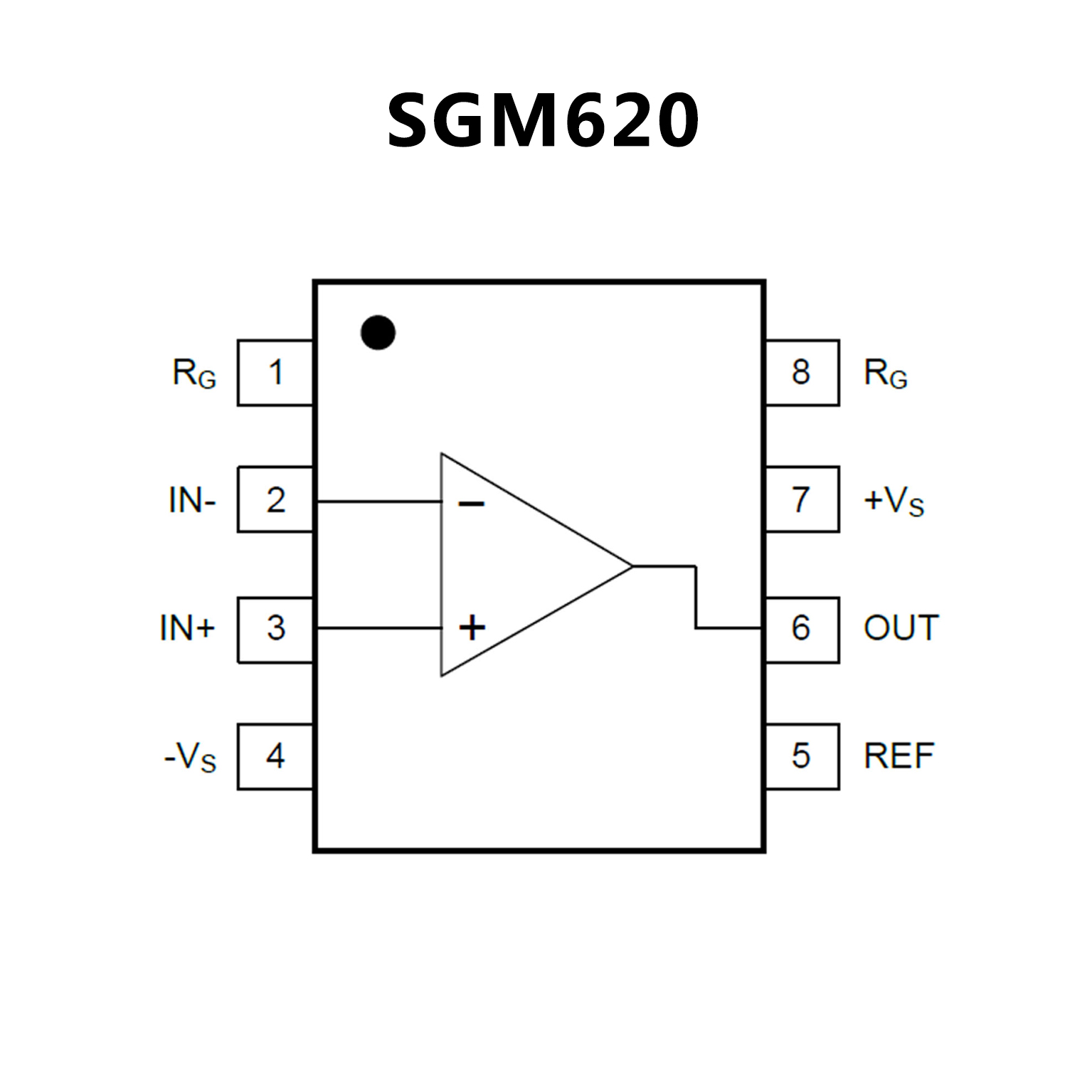

SGM620.pdf• Single External Resistor Gain Set
(Set Gain from 1 to 10000)
• Input Offset Voltage: 150μV (MAX)
• Input Bias Current: 15nA (TYP)
• Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
• Input Voltage Noise: 6nV/√Hz at 1kHz
• 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
• Bandwidth: 140kHz (G = 100)
• Settling Time to 0.01%: 10μs (G = 100)
• Rail-to-Rail Output
• Support Single or Dual Power Supplies:
4.6V to 36V or ±2.3V to ±18V
• Low Power Supply Current: 1.3mA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green SOIC-8 Package
• Easy to use

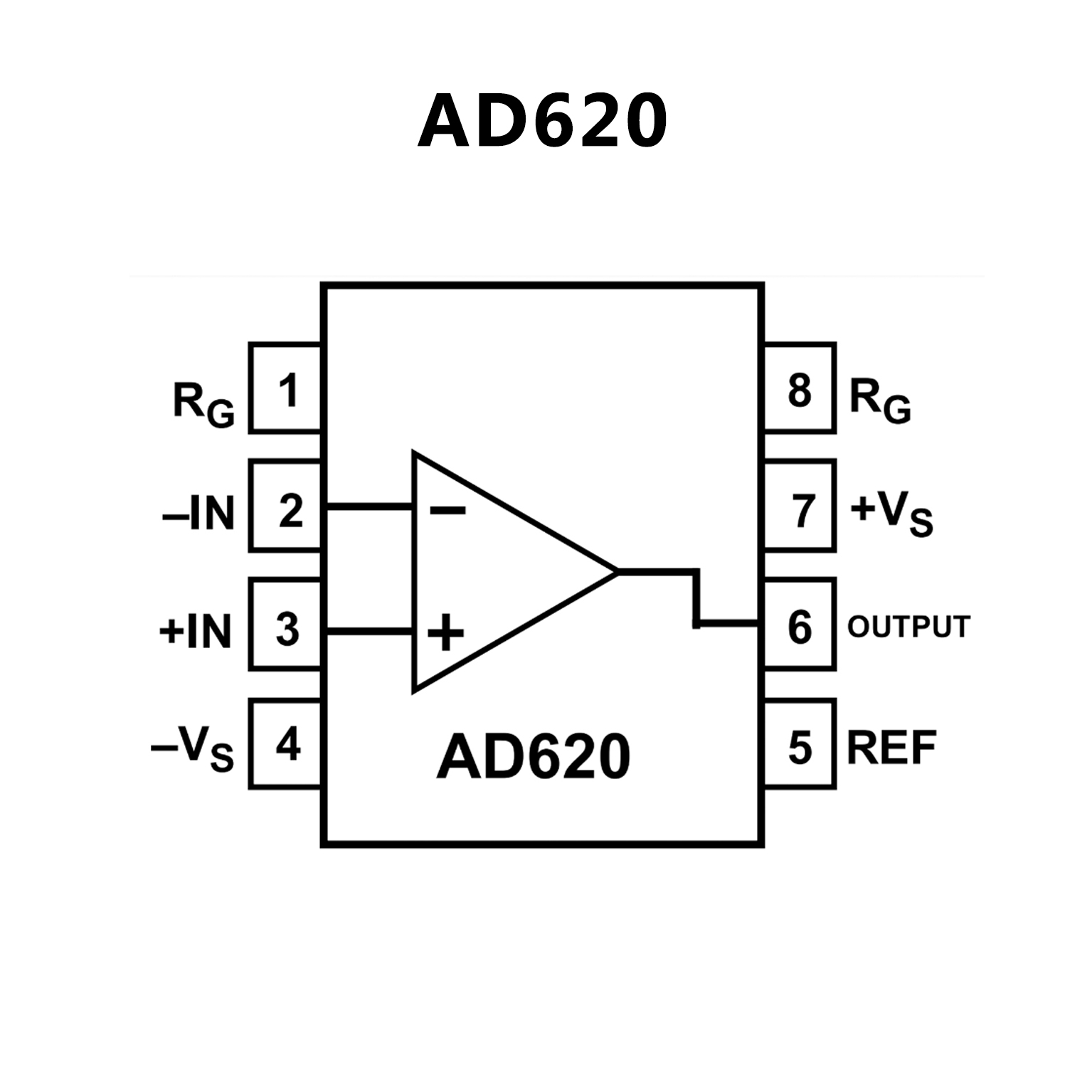

• Gain set with one external resistor (Gain range 1 to 10,000)
• Wide power supply range (±2.3 V to ±18 V)
• Higher performance than 3 op amp IA designs
• Available in 8-lead DIP and SOIC packaging
• Low power, 1.3 mA max supply current
• Excellent dc performance (B grade)
• 50 μV max, input offset voltage
• 0.6 μV/°C max, input offset drift
• 1.0 nA max, input bias current
• 100 dB min common-mode rejection
• ratio (G = 10) Low noise
• 9 nV/√Hz @ 1 kHz, input voltage noise
• 0.28 μV p-p noise (0.1 Hz to 10 Hz)
• Excellent ac specifications
• 120 kHz bandwidth (G = 100)
• 15 μs settling time to 0.01%
