Nano power operational Amplifier,SGM8044 Replace MCP6034.
SGM8044
SGM8044.pdf
SGM8044.pdfFEATURES
• Low Quiescent Current: 670nA/Amplifier (TYP)
• Rail-to-Rail Input and Output
• Gain-Bandwidth Product: 15kHz at VS = 5V (TYP)
• Wide Supply Voltage Range: 1.4V to 5.5V
• Unity Gain Stable
• -40℃ to +85℃ Operating Temperature Range
• Available in Green SOIC-14, TSSOP-14 and
TQFN-3×3-16L Packages

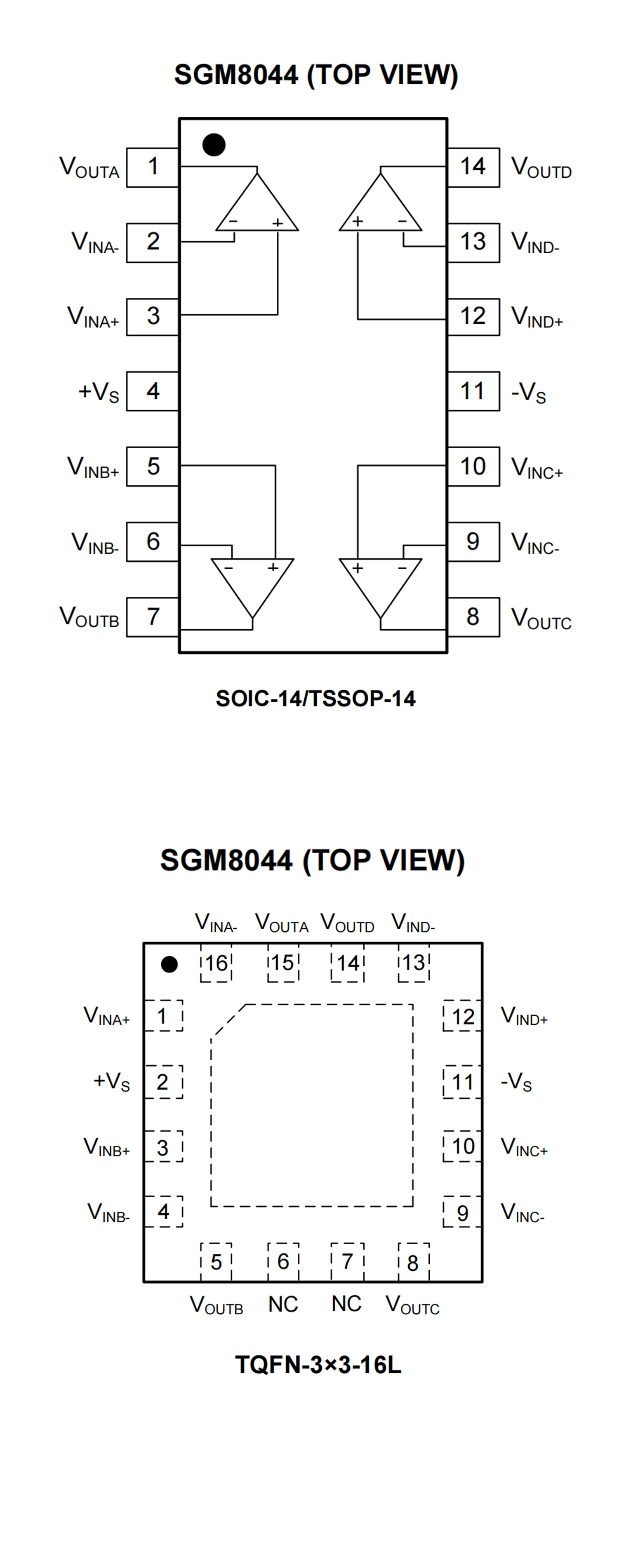

PIN CONFIGUTION
优势替代
FEATURES
• Rail-to-Rail Input and Output
• Low Offset Voltage: ±150 µV (maximum)
• Ultra Low Quiescent Current: 0.9 µA (typical)
• Wide Power Supply Voltage: 1.8V to 5.5V
• Gain Bandwidth Product: 10 kHz (typical)
• Unity Gain Stable
• Chip Select (CS) capability: MCP6033
• Extended Temperature Range:
-40°C to +125°C
• No Phase Reversal

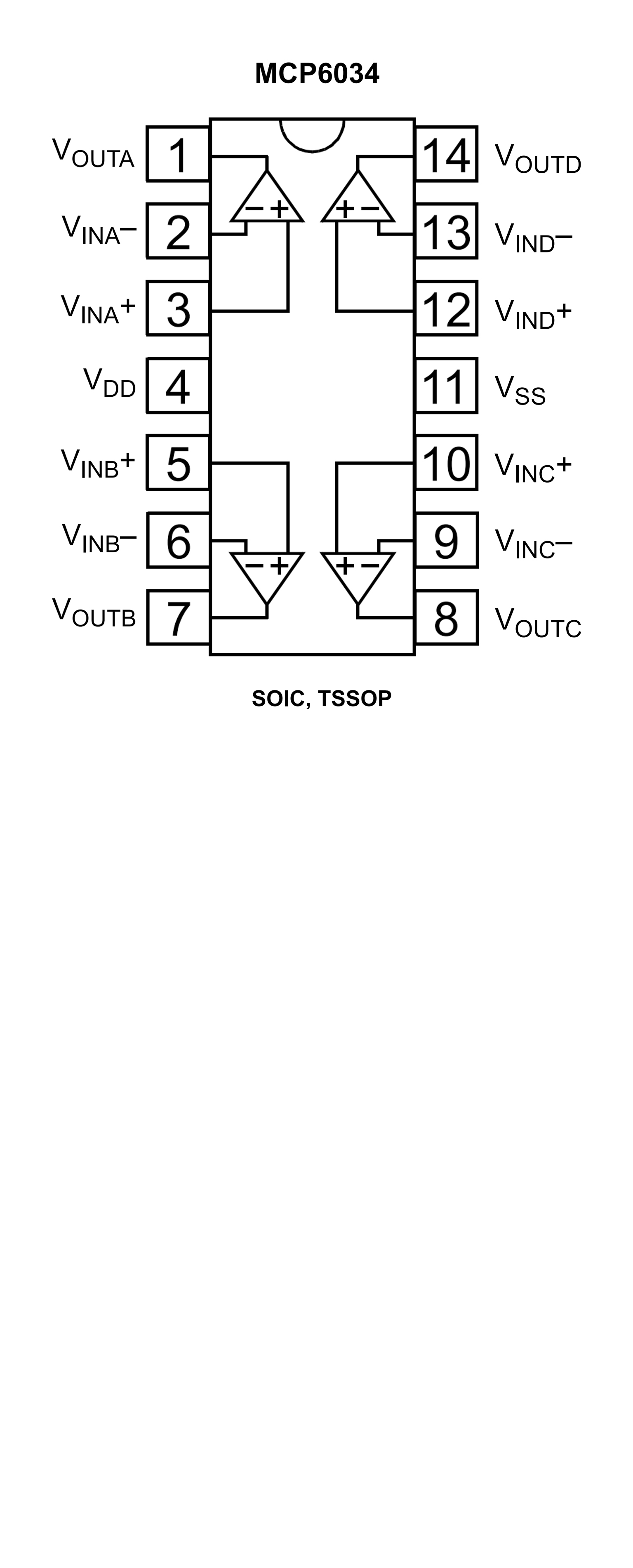

PIN CONFIGUTION
