Nano power operational Amplifier,SGM8046 Replace MCP6142.
SGM8046
SGM8046.pdf
SGM8046.pdfFEATURES
• Low Quiescent Current: 670nA/Amplifier (TYP)
• Rail-to-Rail Input and Output
• Gain Bandwidth Product: 100kHz (TYP)
• Stable for Gains of 10
• Wide Supply Voltage Range: 1.4V to 5.5V
• -40°C to +85°C Operating Temperature Range
• Available in Green SOP8 and MSOP8 Packages

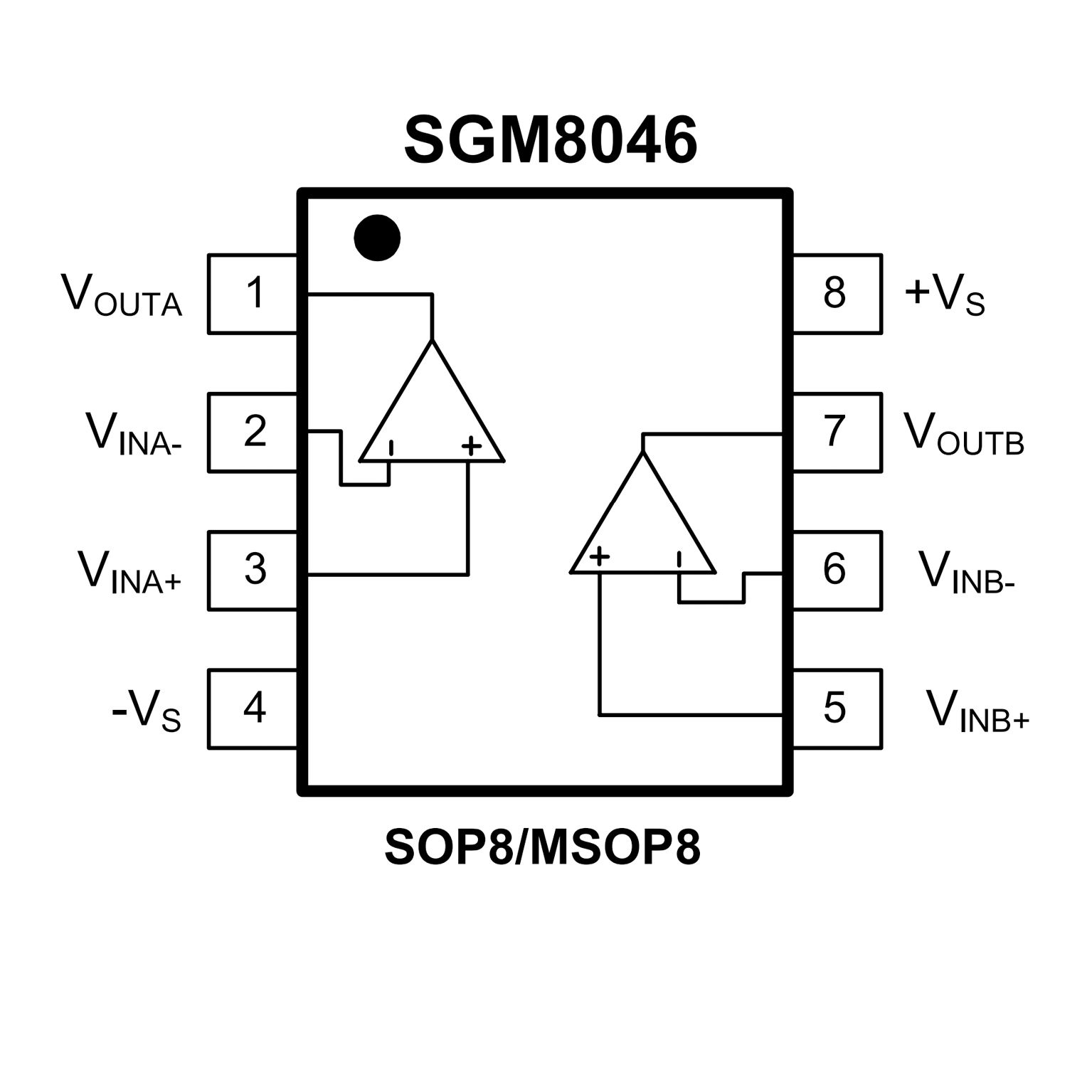

PIN CONFIGUTION
优势替代
FEATURES
• Low Quiescent Current: 600 nA/amplifier (typical)
• Gain Bandwidth Product: 100 kHz (typical)
• Stable for gains of 10 V/V or higher
• Rail-to-Rail Input/Output
• Wide Supply Voltage Range: 1.4V to 6.0V
• Available in Single, Dual, and Quad
• Chip Select (CS) with MCP6143
• Available in 5-lead and 6-lead SOT-23 Packages
• Temperature Ranges:
Industrial: -40°C to +85°C
Extended: -40°C to +125°C

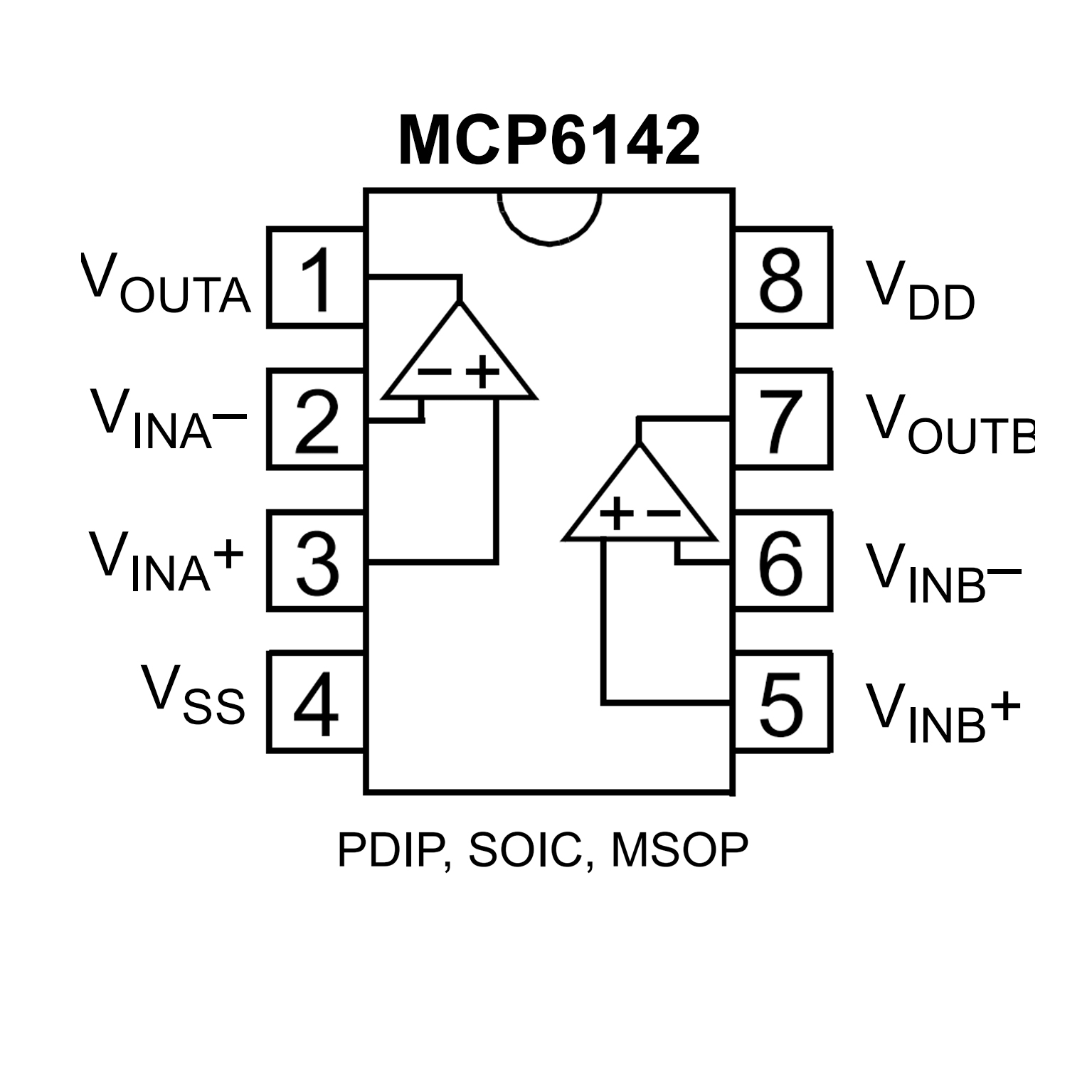

PIN CONFIGUTION
