• Qualified for automotive applications

• AEC-Q100 Qualified With the Following Results:

– Device temperature grade 1: –40°C to 125°C

– Device HBM ESD classification level 2

– Device CDM ESD classification level C4B

• ESD protection exceeds 2000 V Per MIL-STD-

  883, Method 3015; using human body model (C =

  100 pF, R = 1500 Ω)

• Power-on reset generator with fixed delay time of

  200 ms (TPS3823/4/5/8-xx-Q1) or 25 ms

  (TPS3820-xx-Q1)

• Manual reset input (TPS3820/3/5/8-xx-Q1)

• Reset output available in active-low

  (TPS3820/3/4/5-xx-Q1), Active-High (TPS3824/5-

  xx-Q1), and open drain (TPS3828-xx-Q1)

• Supply voltage supervision range:

  2.5 V, 3 V, 3.3 V, 5 V

• Watchdog timer (TPS3820/3/4/8-xx-Q1)

• Supply current of 15 μA (Typical)

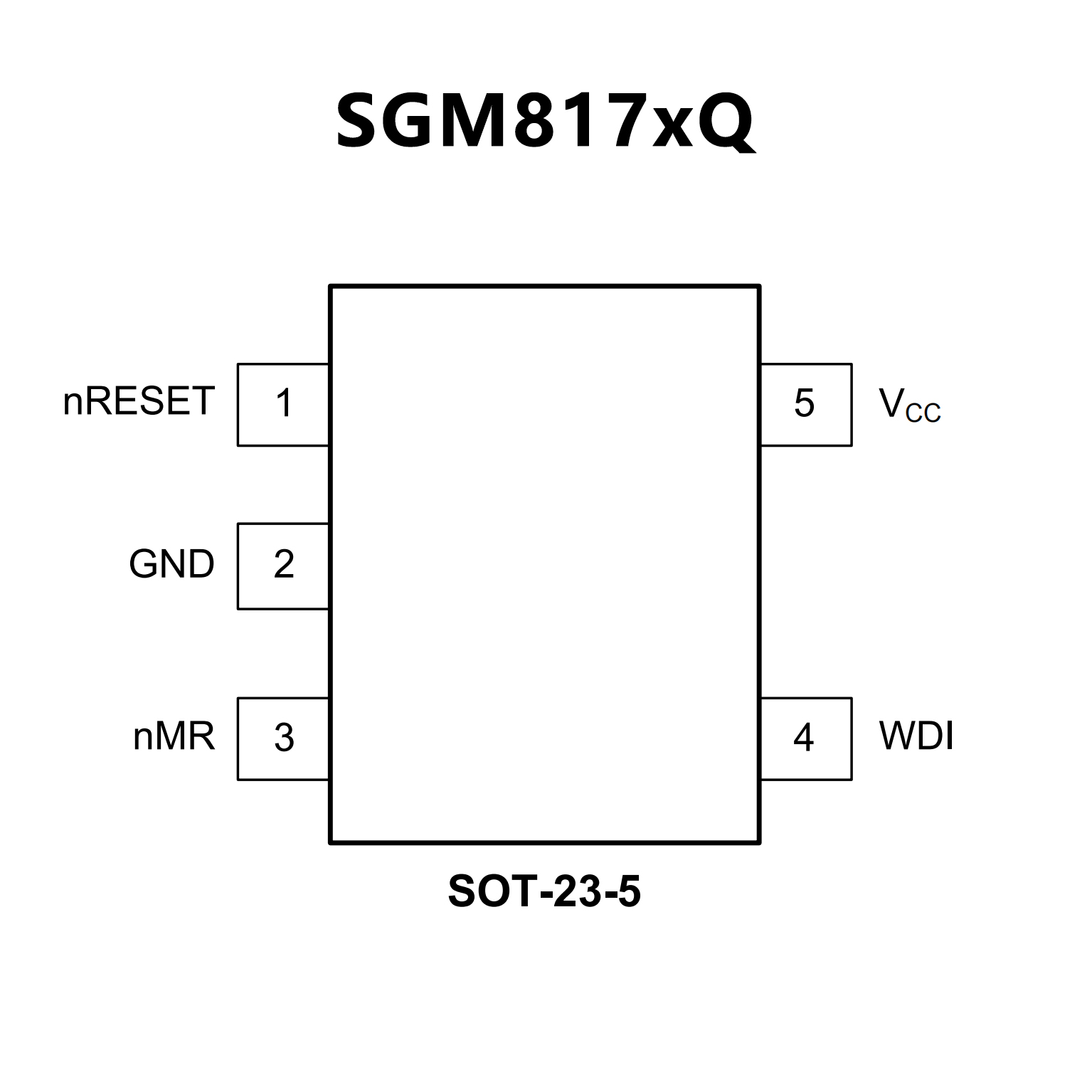

• 5-Pin SOT-23 package

• Temperature range: −40°C to 125°C
