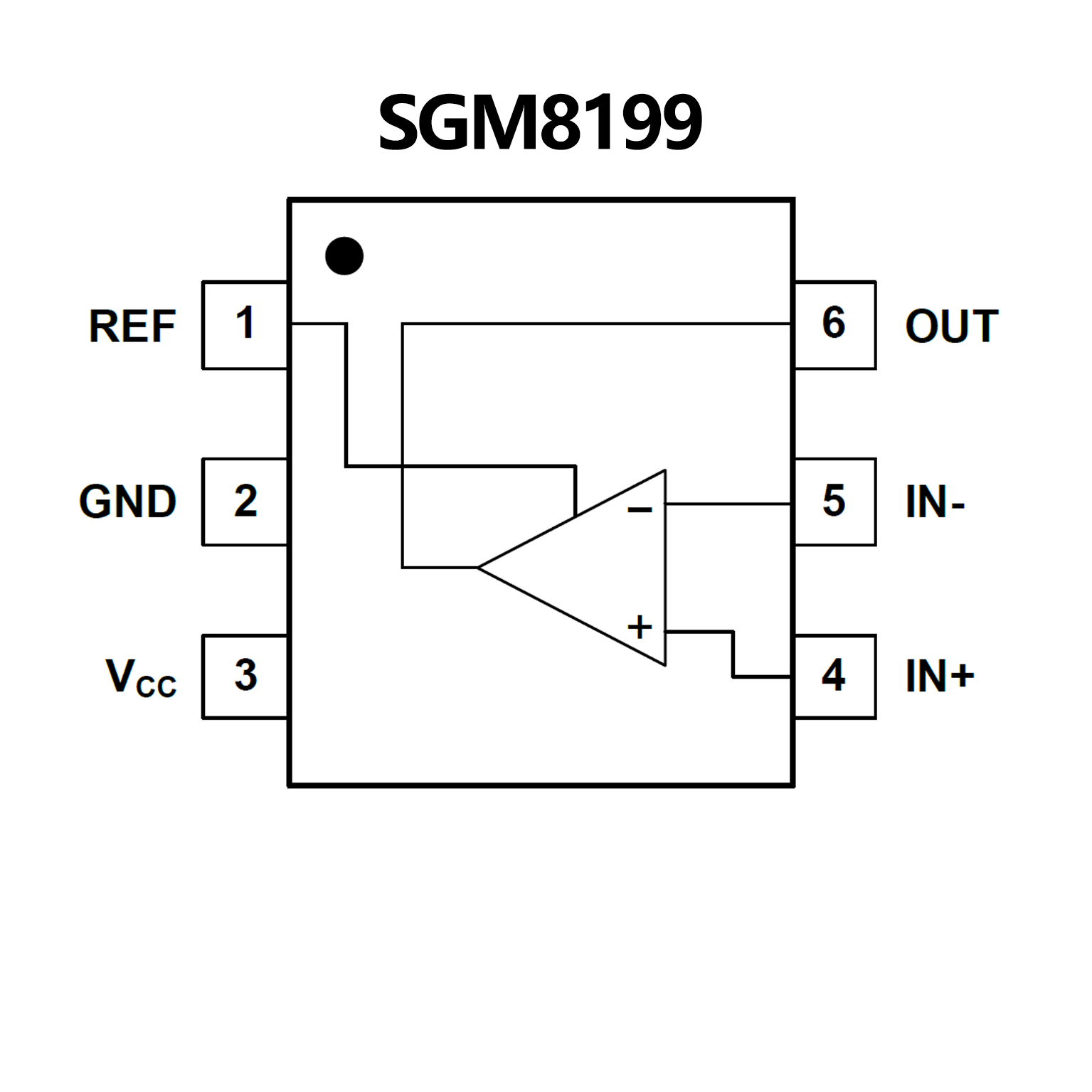

SGM8199.pdf• Wide Common Mode Range: -0.1V to 26V
• Input Offset Voltage
SGM8199A0: 600μV (VCM = 12V, MAX)
SGM8199A1: 350μV (VCM = 12V, MAX)
SGM8199A2: 250μV (VCM = 12V, MAX)
(Enables Shunt Drops of 10mV Full-Scale)
• Gain Error (Maximum Over Temperature)
SGM8199A0: ±0.7%
SGM8199A1: ±0.4%
SGM8199A2: ±0.4%
• Choice of Gains:
SGM8199A0 Gain: 20V/V
SGM8199A1 Gain: 50V/V
SGM8199A2 Gain: 100V/V
• Quiescent Current: 85μA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SC70-6 Package
• VOLTAGE OFFSET: ±100uV (MAX)
• WIDE COMMON MODE VOLTAGE: -0.3V to +36V
• SUPPLY VOLTAGE: 2.7V to +30V
• ACCURACY and ZERO-DRIFT PERFORMANCE
• ±1% Gain Error (Max over temperature)
• 0.5μV/°C Offset Drift (Max)
• 10ppm/°C Gain Drift (Max)

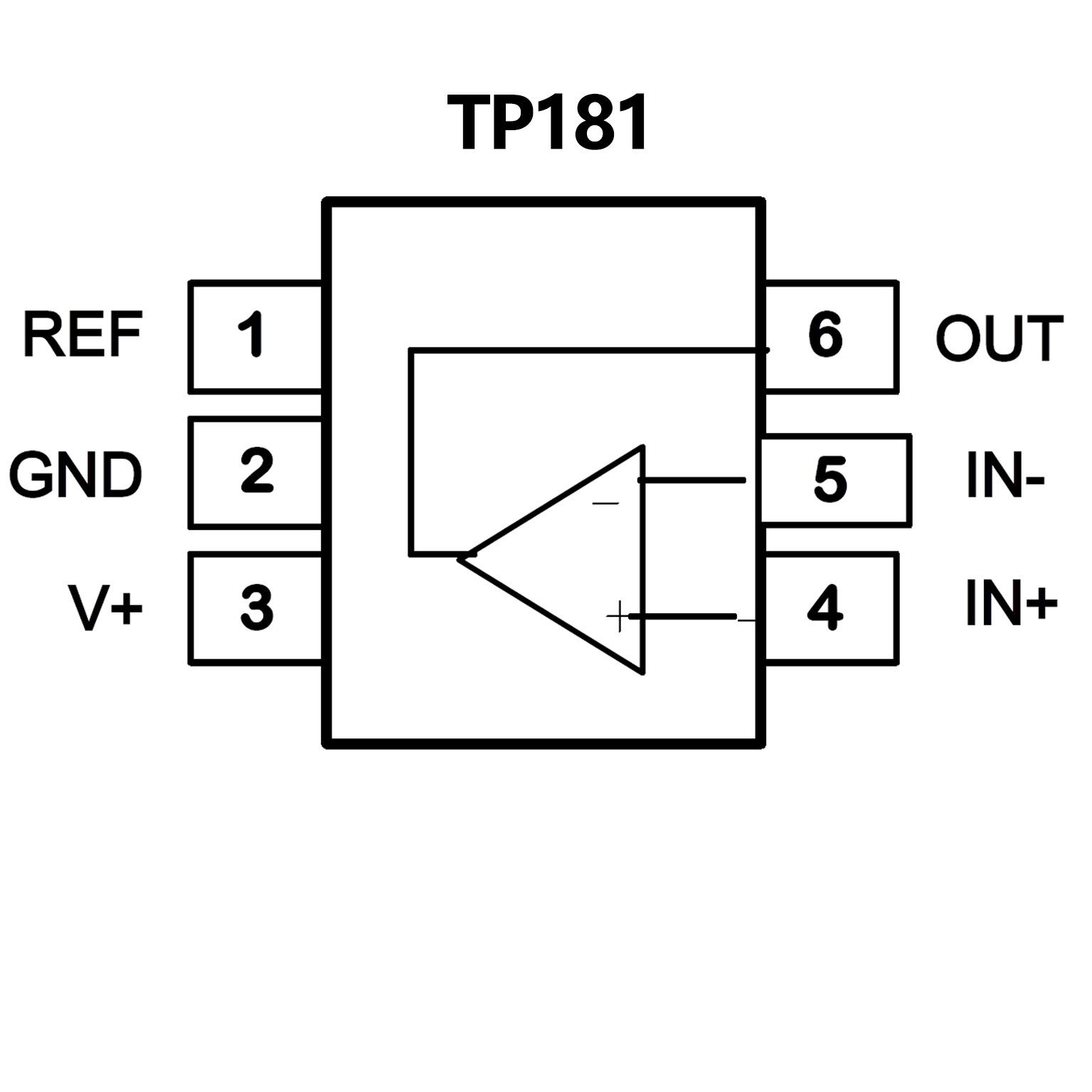

• THREE GAIN OPTIONS for VOLTAGE OUTPUT
• TP181A1: 50V/V
• TP181A2: 100V/V
• TP181A3: 200V/V
• LOW SUPPLY CURRENT: 120uA (TYP)
• Rail-to-Rail Output
• PACKAGE: SC70-6
• Industrial –40°C to 125°C Operation Range
• ESD Rating: Robust 3KV – HBM, 2KV – CDM
• Higher performance Drop-In Compatible With
INA213, INA214, INA199, NCS199 Products
