SGM8210-2XS8G.pdf• Low 0.1Hz to 10Hz Noise: 3μVP-P
• Wide Supply Voltage Range: 3.3V to 24V
• Low Power Consumption: 50μA/Amplifier (TYP)
• Low Offset Voltage: 1mV (MAX)
• Input Voltage Noise Density: 25nV/ Hz at 1kHz
• Slew Rate: 0.3V/μs
• Rail-to-Rail Input and Output
• High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8210-1 Available in Green SOT-23-5 and
SC70-5 Packages

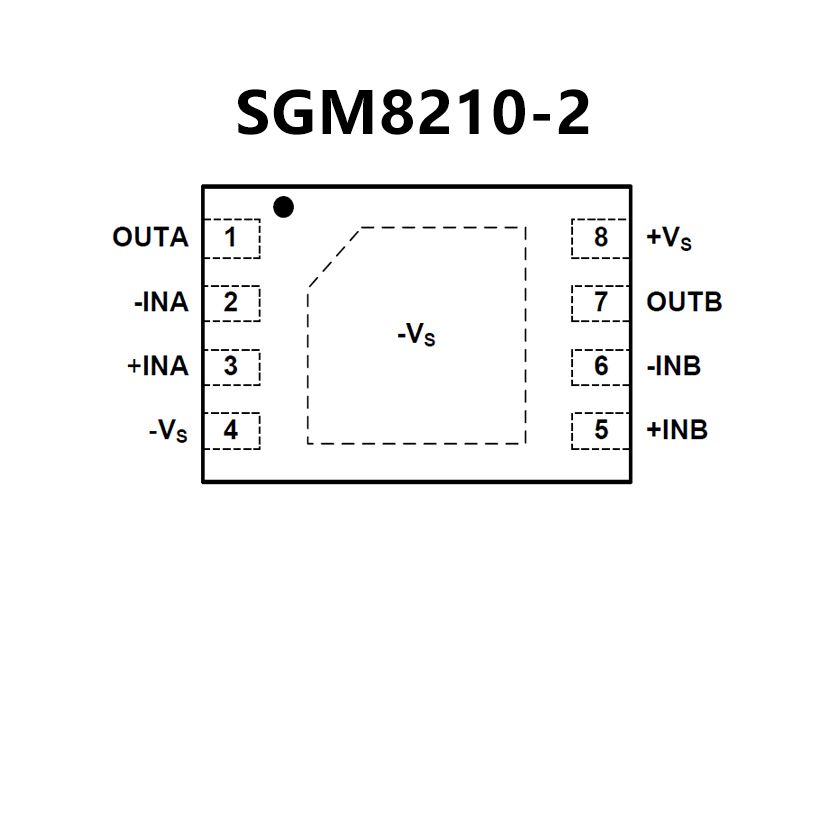

SGM8210-2 Available in Green SOIC-8, MSOP-8
and TDFN-2×3-8L Packages
SGM8210-4 Available in a Green SOIC-14 Package

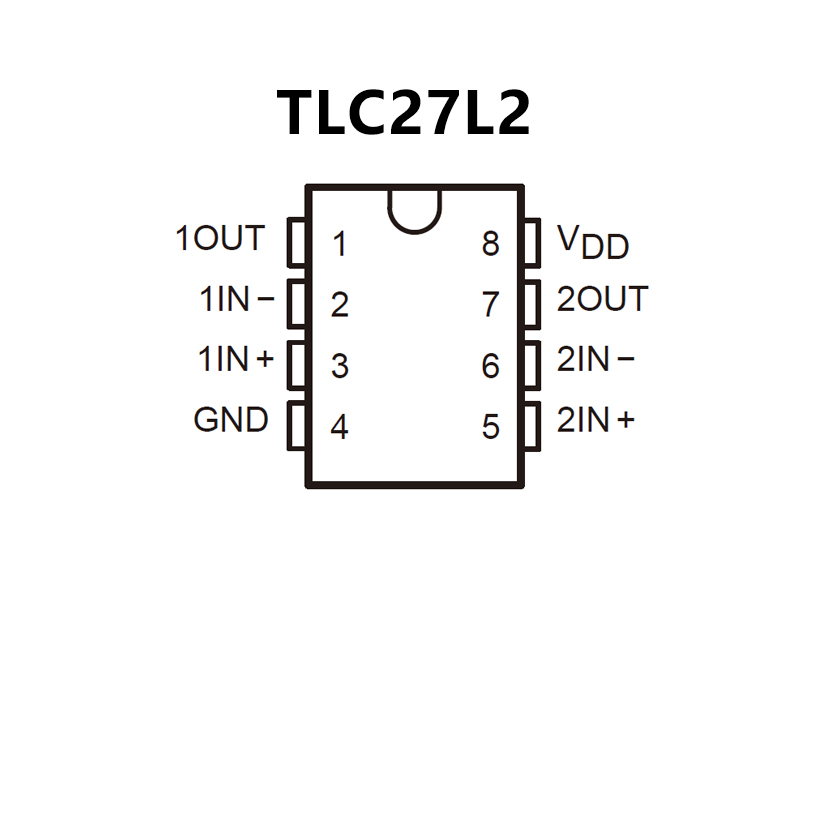

• Trimmed Offset Voltage:
TLC27L7 . . . 500 μV Max at 25°C,
VDD = 5 V
• Input Offset Voltage Drift . . . Typically
0.1 μV/Month, Including the First 30 Days
• Wide Range of Supply Voltages Over
Specified Temperature Range:
0°C to 70°C . . . 3 V to 16 V
−40°C to 85°C . . . 4 V to 16 V
−55°C to 125°C . . . 4 V to 16 V
• Single-Supply Operation
• Common-Mode Input Voltage Range
Extends Below the Negative Rail (C-Suffix,
I-Suffix Types)
• Ultra-Low Power . . . Typically 95 μW
at 25°C, VDD = 5 V
• Output Voltage Range Includes Negative
Rail
• High Input Impedance . . . 1012 Ω Typ
• ESD-Protection Circuitry
• Small-Outline Package Option Also
Available in Tape and Reel
• Designed-In Latch-Up immunity
