SGM8210-2.pdf• Low 0.1Hz to 10Hz Noise: 3μVP-P
• Wide Supply Voltage Range: 3.3V to 24V
• Low Power Consumption: 50μA/Amplifier (TYP)
• Low Offset Voltage: 1mV (MAX)
• Input Voltage Noise Density: 25nV/Hz at 1kHz
• Slew Rate: 0.3V/μs
• Rail-to-Rail Input and Output
• High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8210-1 Available in Green SOT-23-5
andSC70-5 Packages

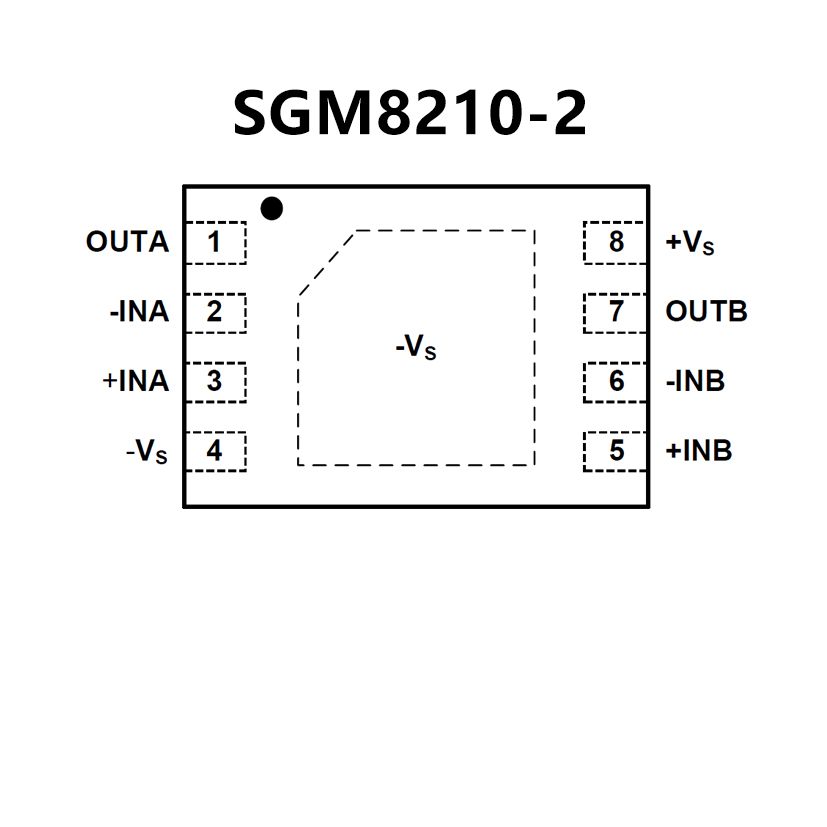

SGM8210-2 Available in Green SOIC-8,
MSOP-8and TDFN-2×3-8L Packages
SGM8210-4 Available in a Green SOIC-14 Package
• Output Swing Includes Both Supply Rails

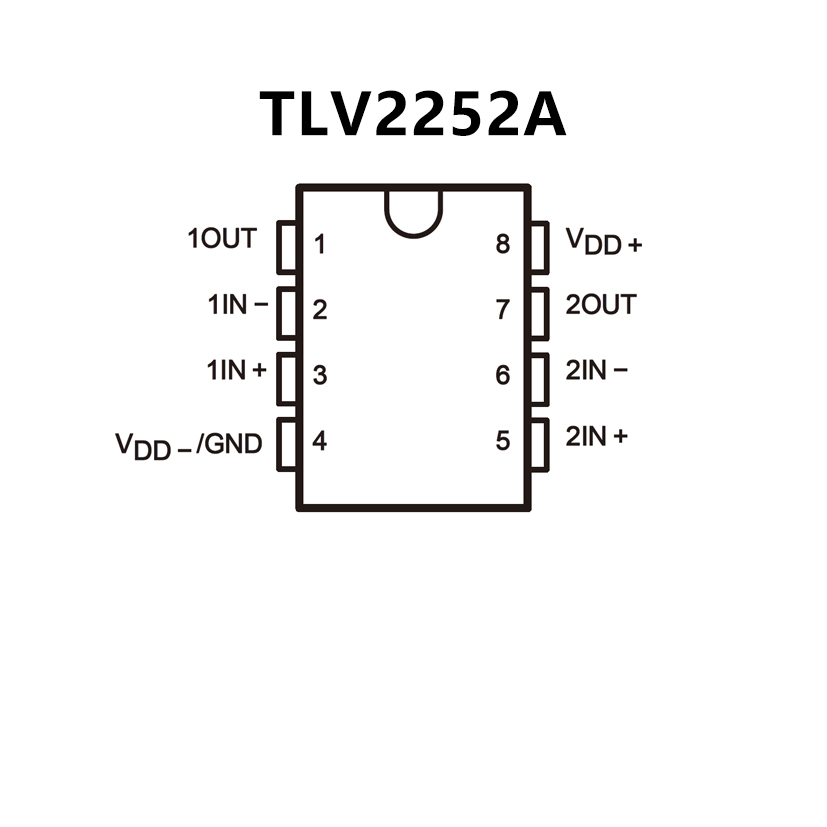

• Low Noise . . . 19 nV/√Hz Typ at f = 1 kHz
• Low Input Bias Current . . . 1 pA Typ
• Fully Specified for Both Single-Supply and
Split-Supply Operation
• Very Low Power . . . 34 μA Per Channel Typ
• Common-Mode Input Voltage Range
Includes Negative Rail
• Low Input Offset Voltage
850 μV Max at TA = 25°C
• Wide Supply Voltage Range
2.7 V to 8 V
• Macromodel Included
• Available in Q-Temp Automotive
HighRel Automotive Applications
Configuration Control / Print Support
Qualification to Automotive Standards
