SGM8249-2.pdf• Low Offset Voltage: 10μV (MAX)
• Rail-to-Rail Output Swing
• Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 140dB (TYP)
• Input Voltage Noise Density: 10nV/Hz at 1kHz
• Gain-Bandwidth Product: 8MHz
• Low Supply Current: 0.85mA/Amplifier (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:
SGM8249-1 Available in Green
SOT-23-5 andSOIC-8 Packages

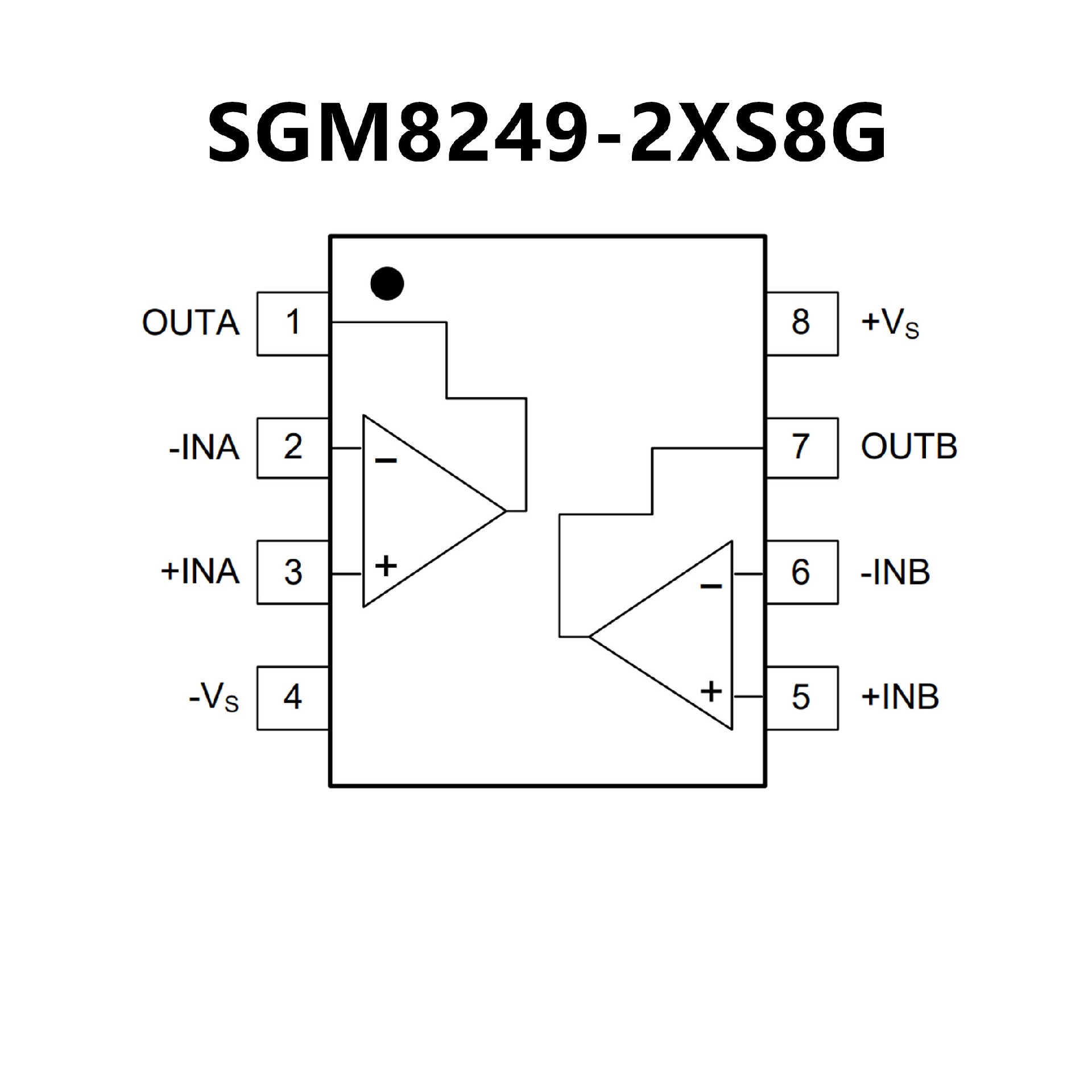

SGM8249-2 Available in a Green SOIC-8 Package

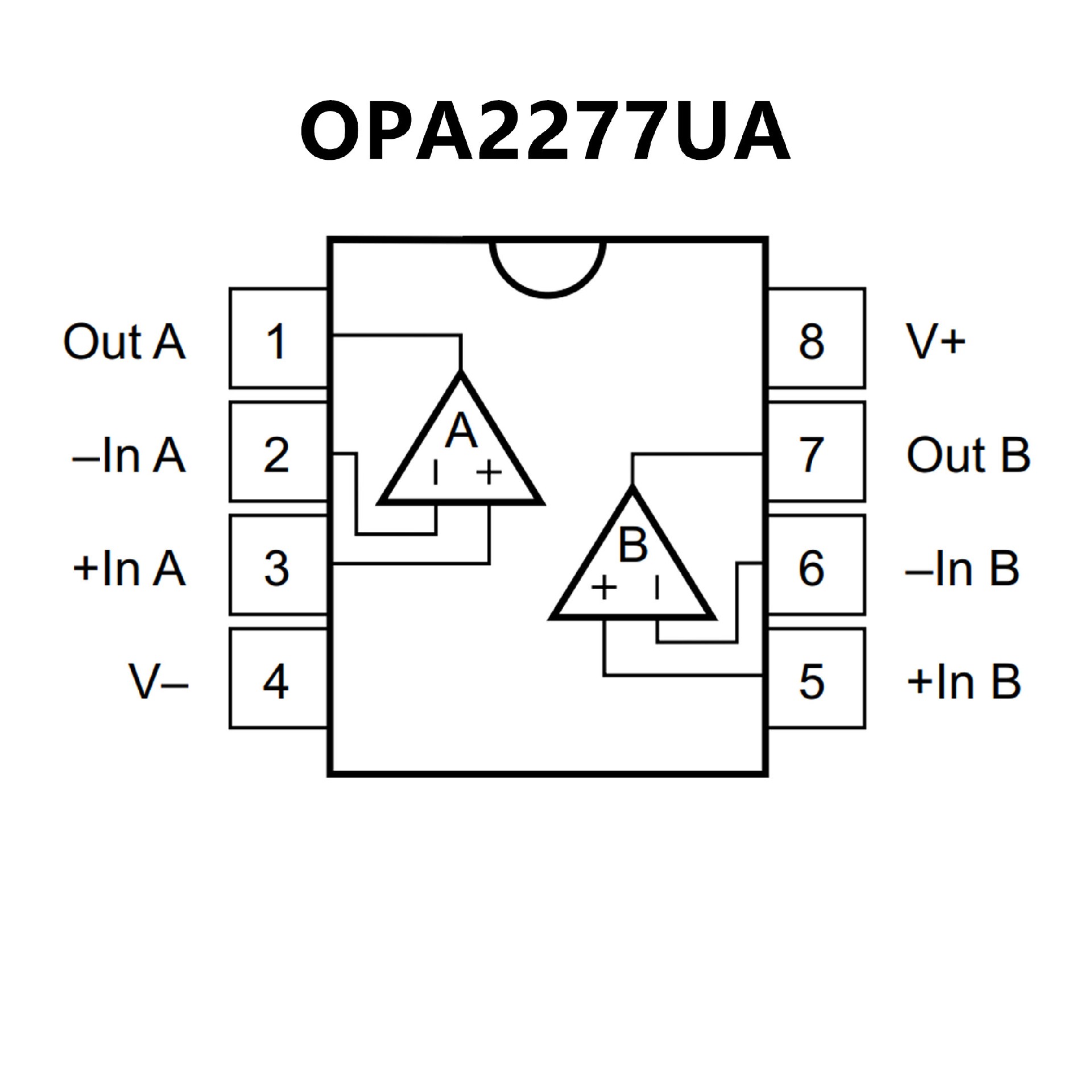

• Ultralow Offset Voltage: 10 μV
• Ultralow Drift: ±0.1 μV/°C
• High Open-Loop Gain: 134 dB
• High Common-Mode Rejection: 140 dB
• High Power Supply Rejection: 130 dB
• Low Bias Current: 1-nA maximum
• Wide Supply Range: ±2 V to ±18 V
• Low Quiescent Current: 800 μA/amplifier
• Single, Dual, and Quad Versions
• Replaces OP-07, OP-77, and OP-177
