8MHz,High Voltage,High Precision,Low Noise,Rail-to-Rail Output Operational Amplifier.
SGM8249-4XS14G
SGM8249-4XS14G.pdf
SGM8249-4XS14G.pdfFEATURES
• Low Offset Voltage: 2μV (TYP), 12μV (MAX)
• Rail-to-Rail Output Swing
• Support Single or Dual Power Supplies:
4.5V to 36V or ±2.25V to ±18V
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 140dB (TYP)
• Input Voltage Noise Density: 12nV/Hz at 1kHz
• Gain-Bandwidth Product: 8MHz
• Low Supply Current: 3.2mA (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-14 and TSSOP-14 Packages

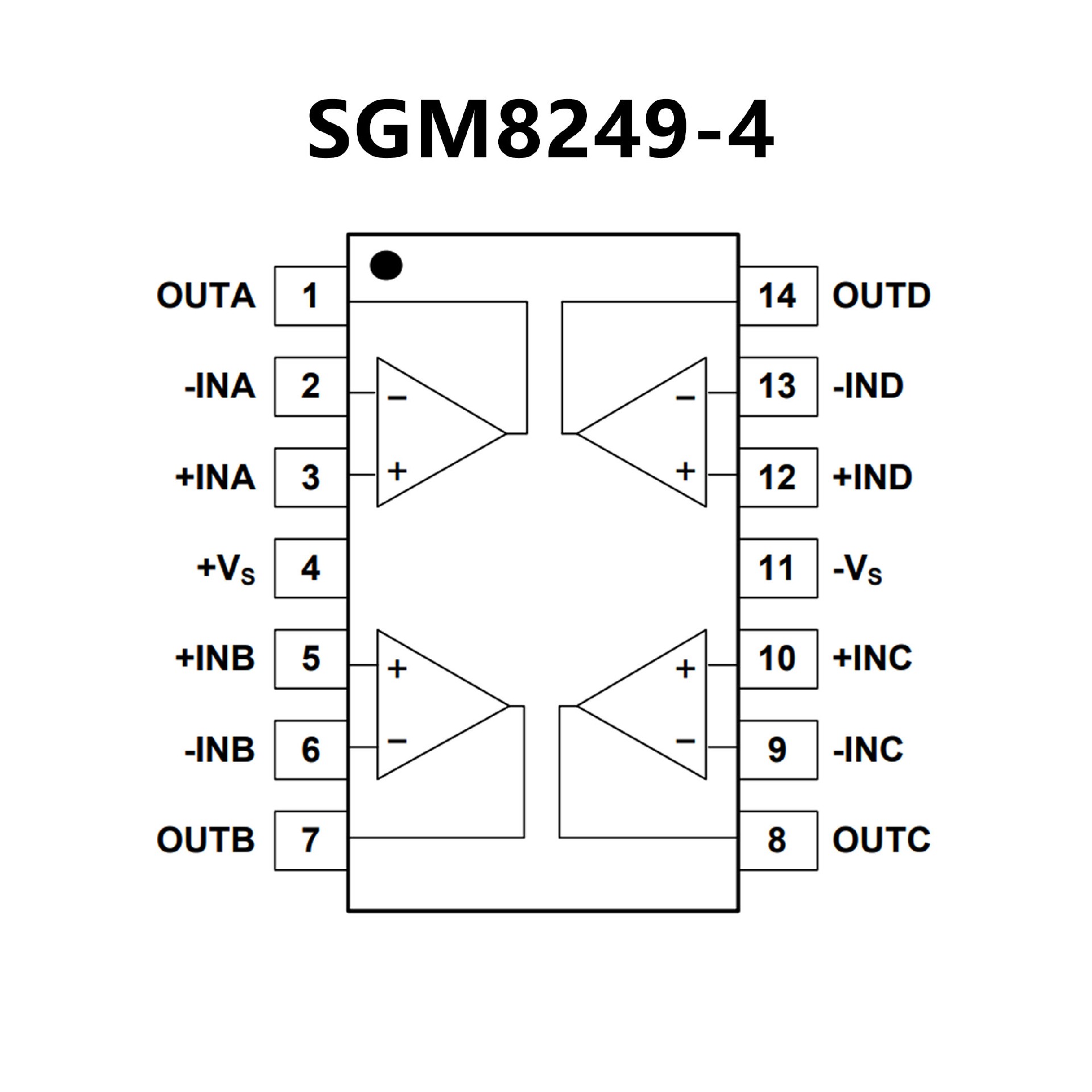

PIN CONFIGUTION
优势替代
FEATURES
• Low Offset Voltage: ±5 µV
• Low Offset Voltage Drift: ±0.2 µV/°C
• Low Noise: 5.5 nV/√Hz at 1 kHz
• High Common-Mode Rejection: 140 dB
• Low Bias Current: ±5 pA
• Rail-to-Rail Input and Output
• Wide Bandwidth: 10 MHz GBW
• High Slew Rate: 20 V/µs
• Low Quiescent Current: 1 mA per Amplifier
• Wide Supply: ±2.25 V to ±18 V, +4.5 V to +36 V
• EMI/RFI Filtered Inputs
• Differential Input Voltage Range to Supply Rail
• High Capacitive Load Drive Capability: 1 nF
• Industry Standard Packages:
Single in SOIC-8, SOT-5, and VSSOP-8
Dual in SOIC-8 and VSSOP-8
Quad in SOIC-14 and TSSOP-14

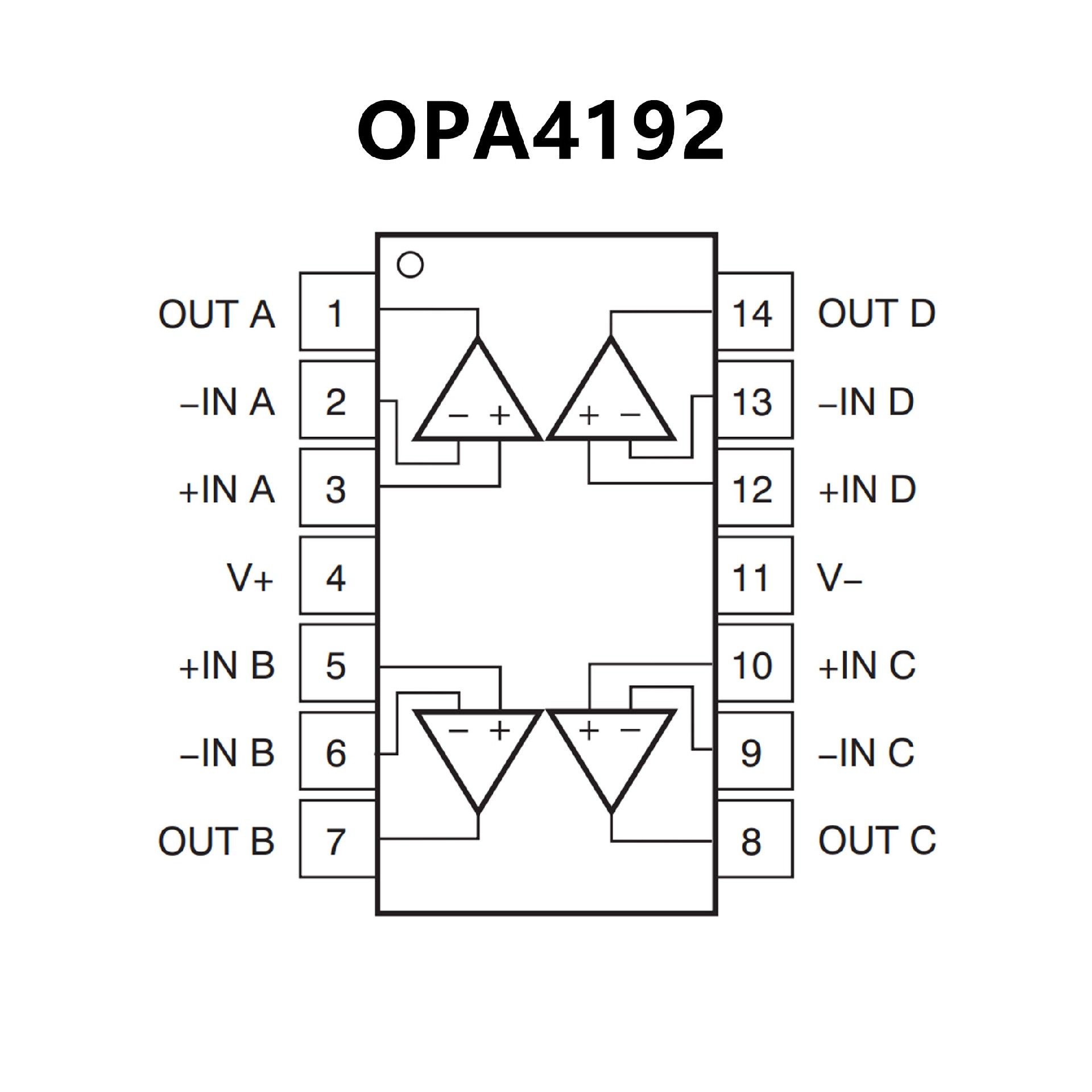

PIN CONFIGUTION
