SGM8255A-2.pdf• Low Offset Voltage: 25μV (MAX)
• Rail-to-Rail Output Swing
• 4.5V to 36V Single Supply Operation
• Open-Loop Voltage Gain: 150dB (TYP)
• PSRR: 150dB (TYP)
• CMRR: 135dB (TYP)
• 0.1Hz to 10Hz Noise: 0.2μVP-P
• Input Voltage Noise Density: 12nV/Hz at 1kHz
• Gain-Bandwidth Product: 8.5MHz
• Low Supply Current: 0.85mA/Amplifier (TYP)
• Overload Recovery Time: 0.7μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

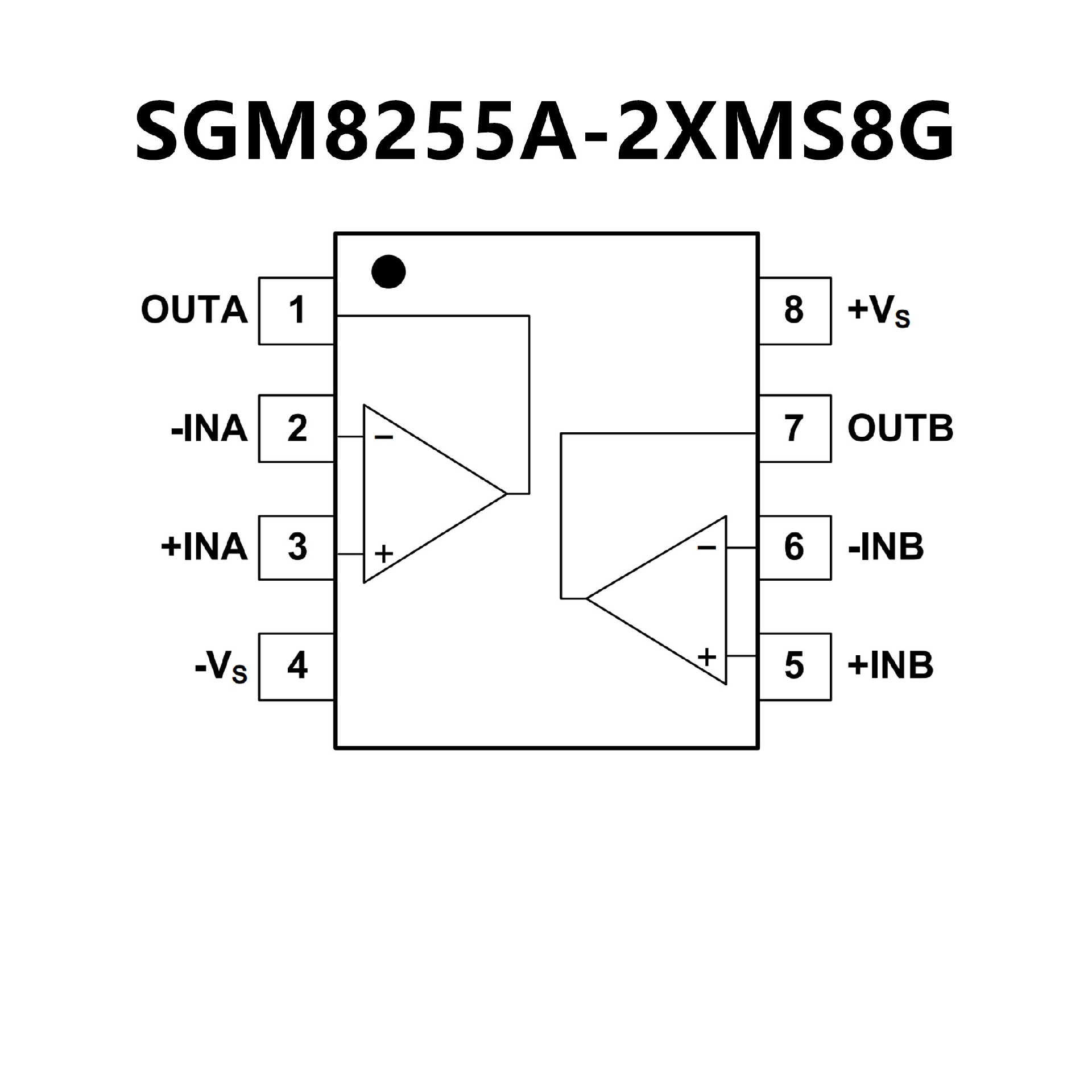

SGM8255A-1 Available in Green SOT-23-5,
SOIC-8 and MSOP-8 Packages
SGM8255A-2 Available in Green SOIC-8 and
MSOP-8 Packages
• Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
• 0.1-Hz to 10-Hz Noise: 130 nVPP
• Low Quiescent Current: 2.5 mA/Ch (Maximum)
• Low Offset Voltage: 150 μV (Maximum)
• Gain Bandwidth Product: 18 MHz
• Slew Rate: 6.4 V/μs
• Wide Supply Range:
±2.25 V to ±18 V, 4.5 V to 36 V
• Rail-to-Rail Output
• Short-Circuit Current: ±65 mA

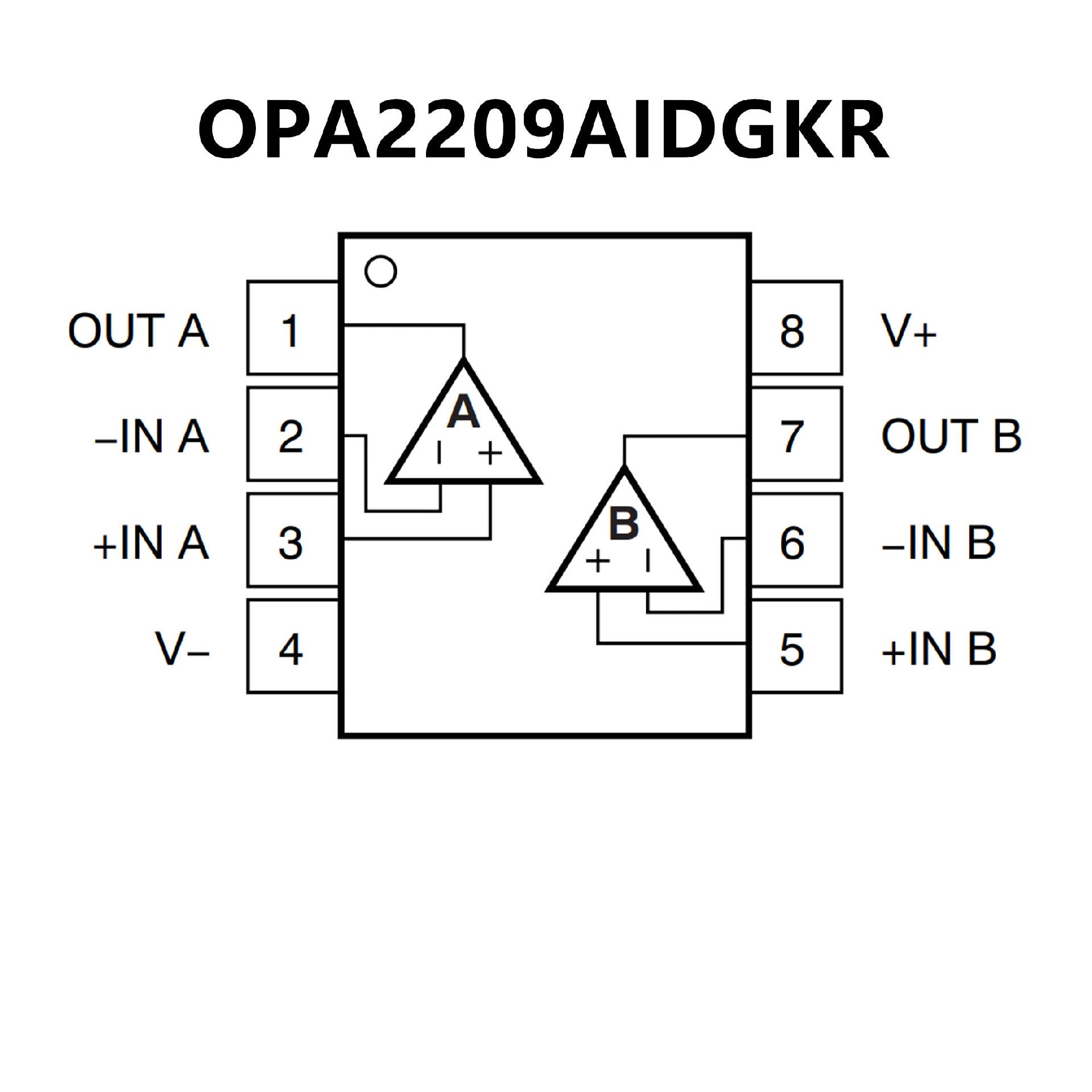

• Available in 5-Pin SOT-23, 8-Pin MSOP,
8-Pin SOIC, and 14-Pin TSSOP Packages
