Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier,SGM8270-2XS8G Replace TL3472IDR.
SGM8270-2XS8G
SGM8270-2XS8G.pdf
SGM8270-2XS8G.pdfFEATURES
• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 2.8mV (MAX)
• Low Noise: 15nV/ Hz at 1kHz
• Gain-Bandwidth Product: 2.5MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Available in Green SOIC-8 and MSOP-8 Packages

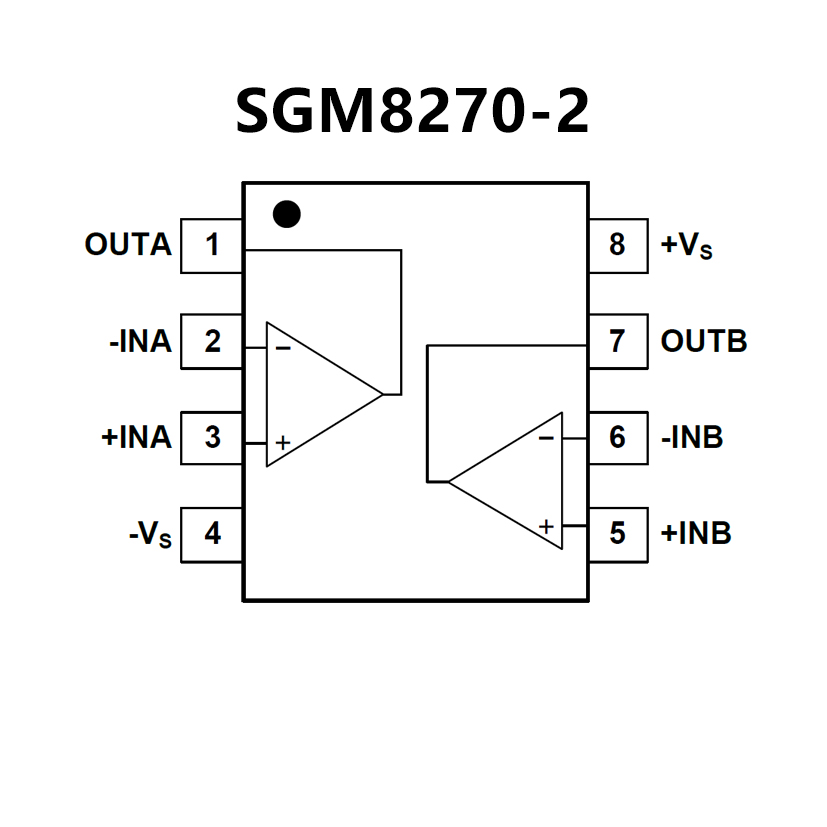

PIN CONFIGUTION
优势替代
FEATURES
• Wide Gain-Bandwidth Product . . . 4 MHz
• High Slew Rate . . . 13 V/μs
• Fast Settling Time . . . 1.1 μs to 0.1%
• Wide-Range Single-Supply
Operation . . . 4 V to 36 V
• Wide Input Common-Mode Range Includes
Ground (VCC−)
• Low Total Harmonic Distortion . . . 0.02%
• Large-Capacitance Drive
Capability . . . 10,000 pF
• Output Short-Circuit Protection

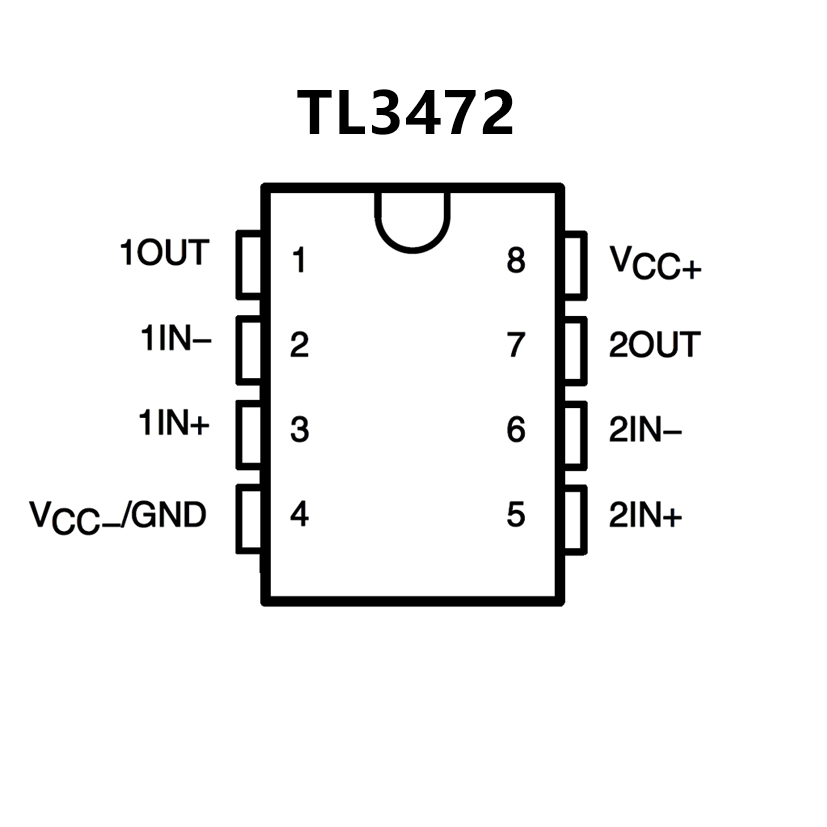

PIN CONFIGUTION
