Low Noise, Precision, High Voltage,Rail-to-Rail I/O Operational Amplifier, SGM8270 P2P TL084AIDT.
SGM8270-4
SGM8270-4.pdf
SGM8270-4.pdfFEATURES
• Wide Input Common Mode and
DifferentialVoltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1.2mV (MAX)
• Low Noise: 15nV/Hz at 1kHz
• Gain-Bandwidth Product: 2.2MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating
Temperature Range
• Available in Green SOIC-14
and TSSOP-14 Packages
PIN CONFIGUTION
优势替代
FEATURES
• Wide common-mode (up to VCC
+) and differential voltage range
• Low input bias and offset current
• Output short-circuit protection
• High input impedance JFET input stage
• Internal frequency compensation
• Latch up free operation
• High slew rate: 16 V/μs (typical)

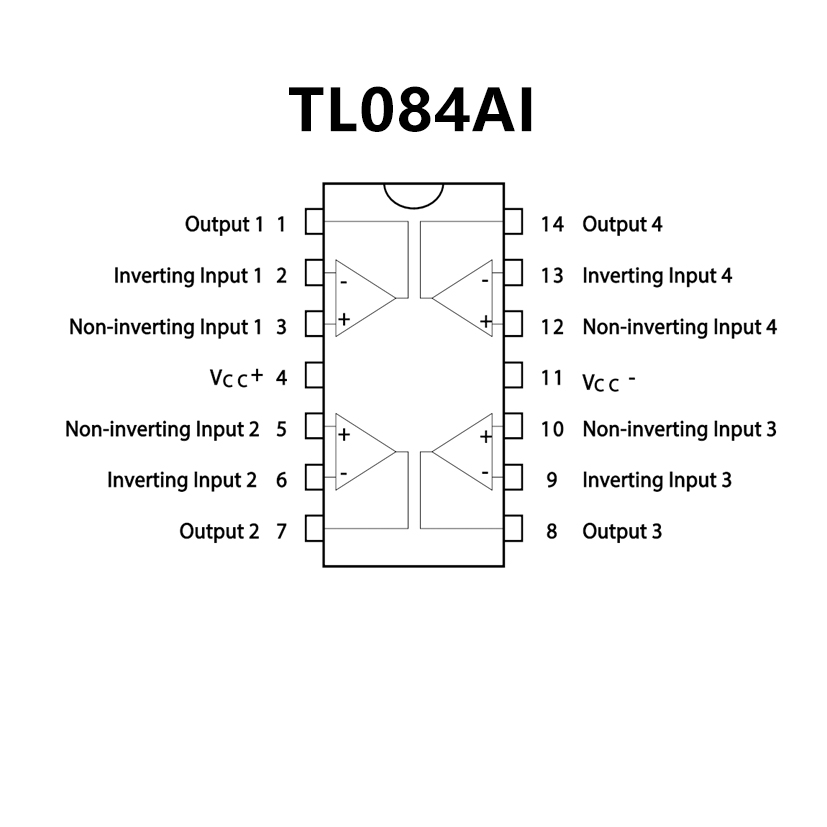

PIN CONFIGUTION
