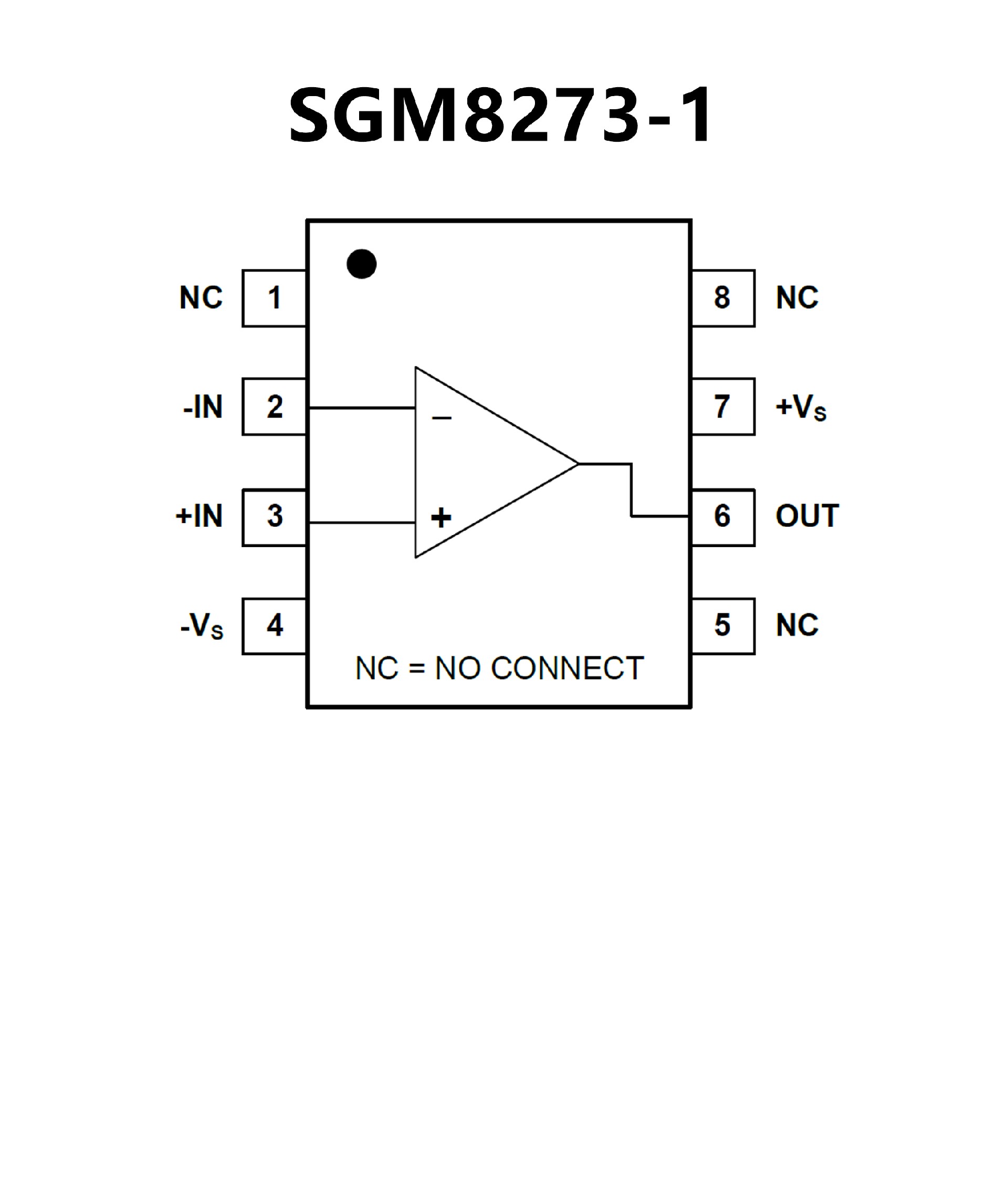

SGM8273-1.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/ Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

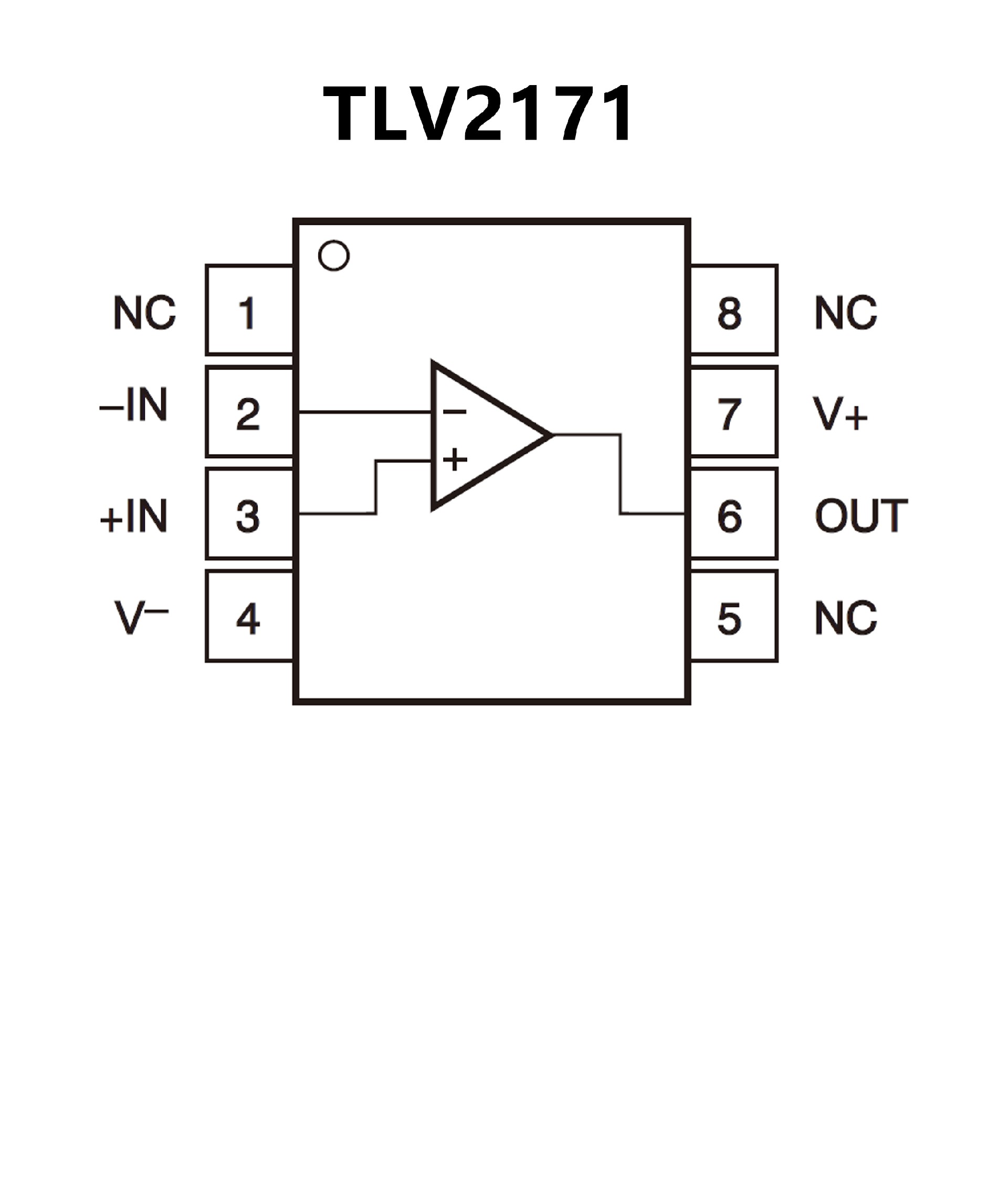

• Supply Range: 2.7 V to 36 V, ±1.35 V to ±18 V
• Low Noise: 16 nV/√Hz
• Low Offset Drift: ±1 μV/°C (typical)
• EMI-Hardened with RFI-Filtered Inputs
• Input Range Includes the Negative Supply
• Unity-Gain Stable: 200-pF Capacitive Load
• Rail-to-Rail Output
• Gain Bandwidth: 3 MHz
• Low Quiescent Current: 525 μA per Amplifier
• High Common-Mode Rejection: 105 dB (typical)
• Low Bias Current: 10 pA
