SGM8273-1AXN5G.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:

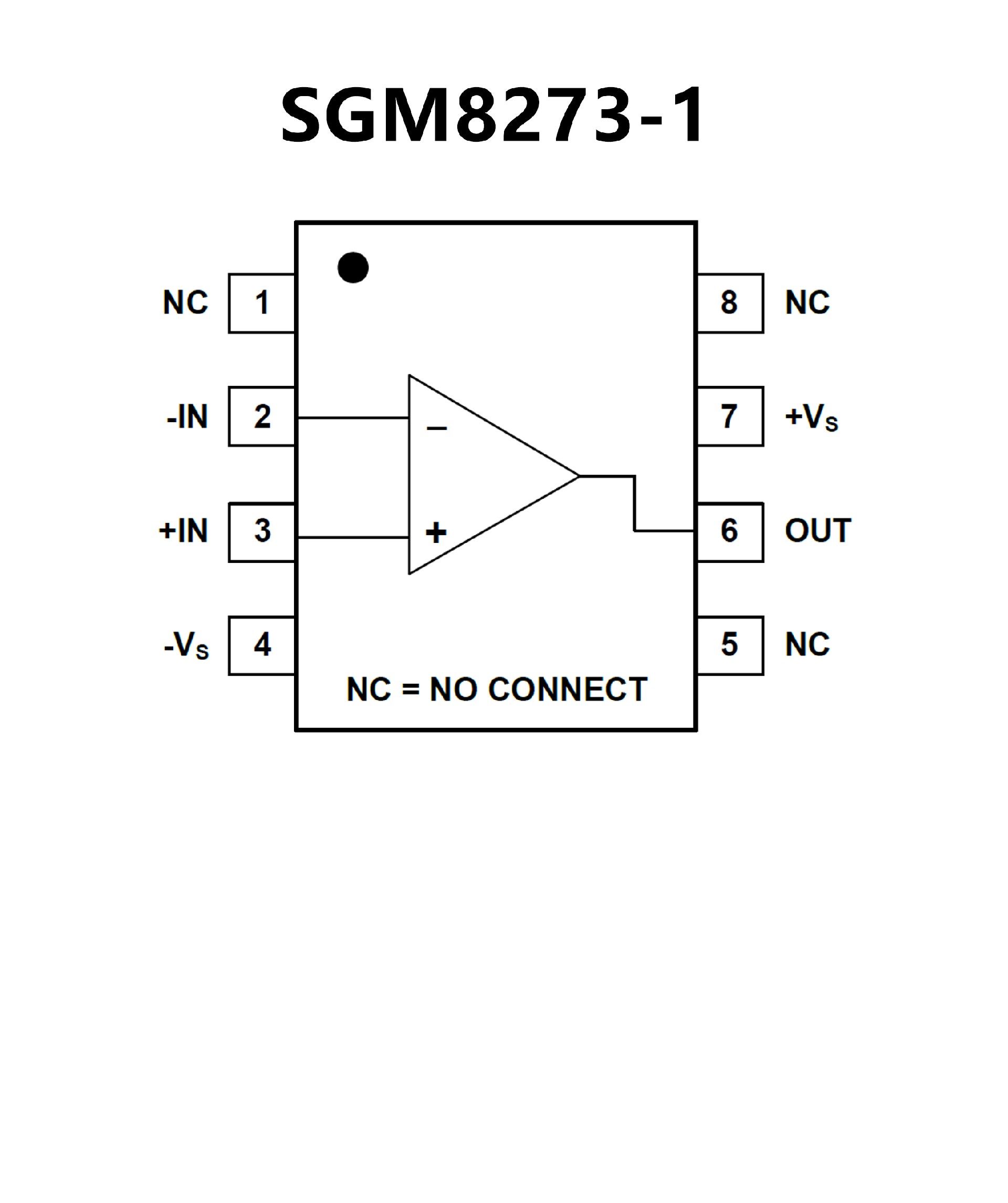

SGM8273-1 Available in Green
SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a
Green SOIC-8 Package
SGM8273-4 Available in a
Green SOIC-14 Package
• Rail-to-Rail Input and Output
• Wide Bandwidth: 3 MHz
• High Slew Rate: 2.4 V/μs
• Supply Voltage Range: 2.7 V to 16 V
• Supply Current: 550 μA/Channel
• Low-Power Shutdown Mode
IDD(SHDN): 25 μA/Channel
• Input Noise Voltage: 39 nV/√Hz
• Input Bias Current: 1 pA
• Specified Temperature Range:
−40°C to +125°C (Industrial Grade)
• Ultra-Small Packaging:
5- or 6-Pin SOT-23 (TLV2370, TLV2371)
8- or 10-Pin MSOP (TLV2372, TLV2373)
