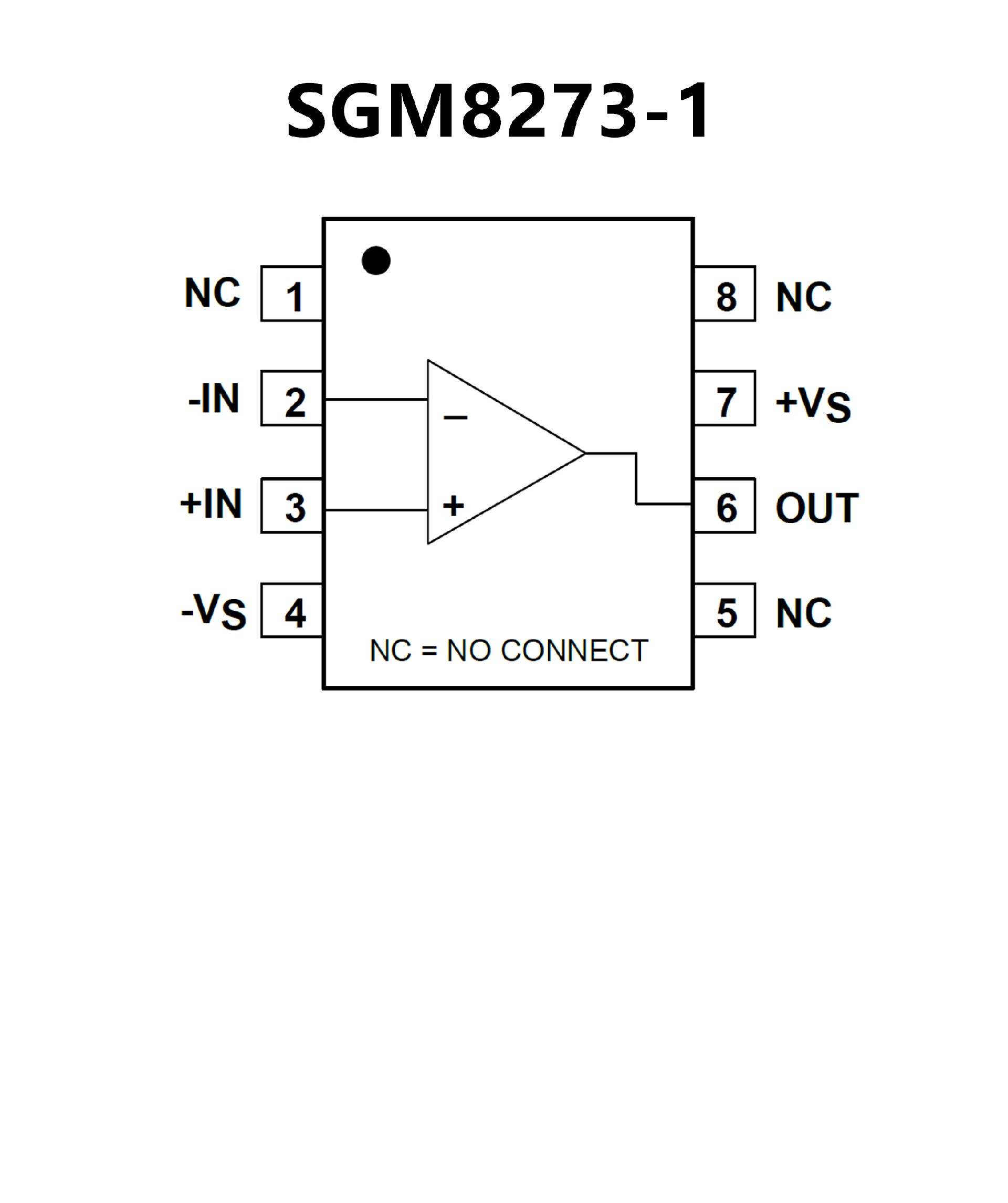

SGM8273-1AXN5G.pdf• Wide Input Common Mode and Differential
Voltage Ranges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 1mV (MAX)
• Low Noise: 9nV/Hz at 1kHz
• Gain-Bandwidth Product: 4MHz
• High Slew Rate: 6V/μs
• Small Packaging:
SGM8273-1 Available in Green SOT-23-5, SOIC-8
and MSOP-8 Packages
SGM8273-2 Available in a Green SOIC-8 Package
SGM8273-4 Available in a Green SOIC-14 Package

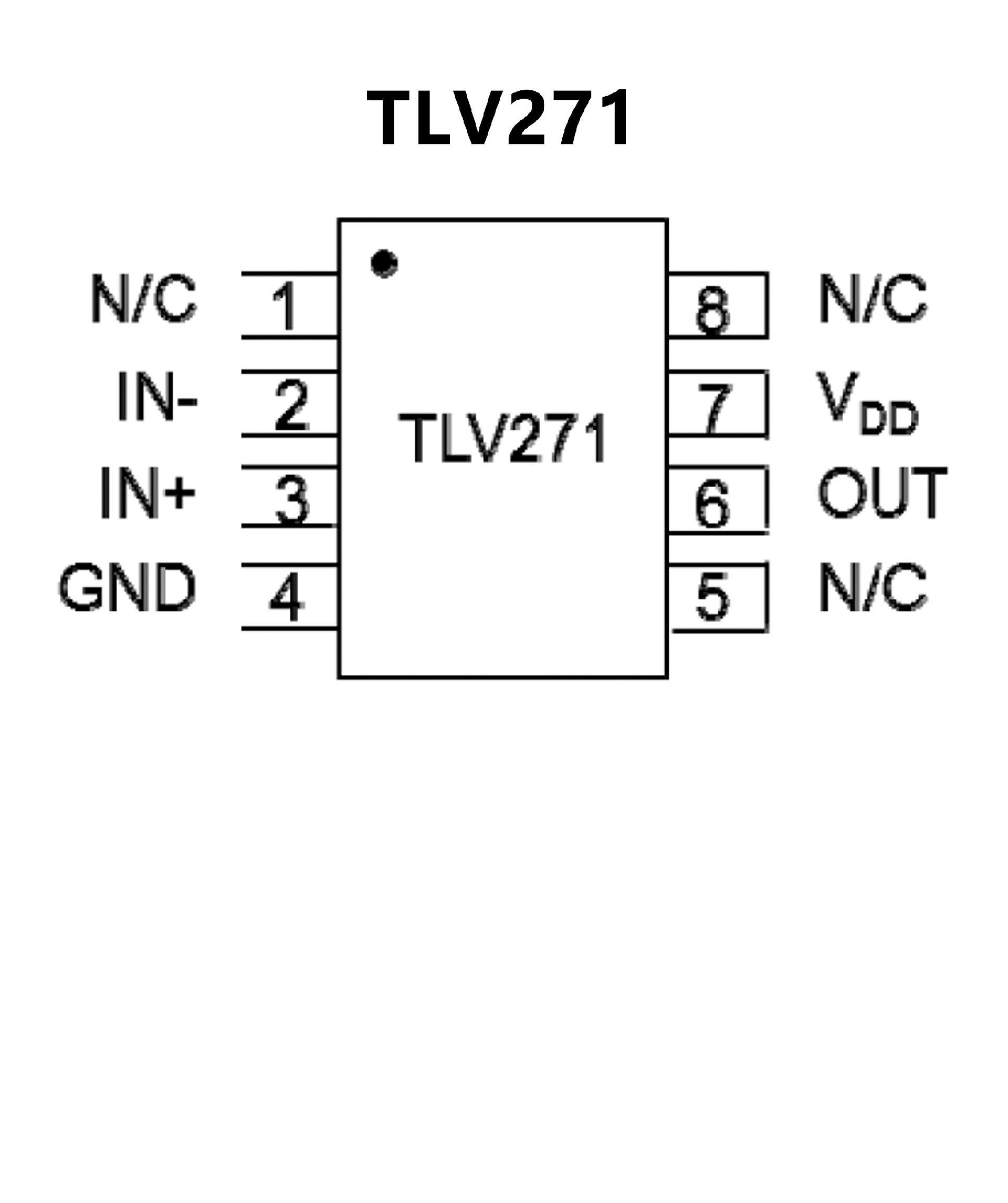

• High performance alternative to TLC27x series
• Rail to rail output
• Wide bandwidth: 2MHz
• High slew rate: 2.0 V/μs
• Wide range of supply voltages: 2.7V to 16V
• Low supply current: 550μA per channel
• Low input noise voltage: 35nV/√Hz
• Low input bias current: 1pA
• Specified temperature ranges:
0°C to +70°C: commercial grade
-40°C to +125°C: industrial grade
• Totally Lead-Free & Fully RoHS
Compliant (Notes 1 & 2)
• Halogen and Antimony Free.
“Green” Device (Note 3)
