SGM8276-1.pdf• Wide Input Common Mode and Differential VoltageRanges
• Low Input Bias and Offset Current
• Output Short-Circuit Protection
• Rail-to-Rail Input and Output
• High Input Impedance
• Low Offset Voltage: 0.3mV (TYP), 1.5mV (MAX)
• Low Noise: 10nV/Hz at 1kHz
• Gain-Bandwidth Product: 10MHz
• High Slew Rate: 8V/μs
• -40℃ to +125℃ Operating Temperature Range
• Small Packaging:

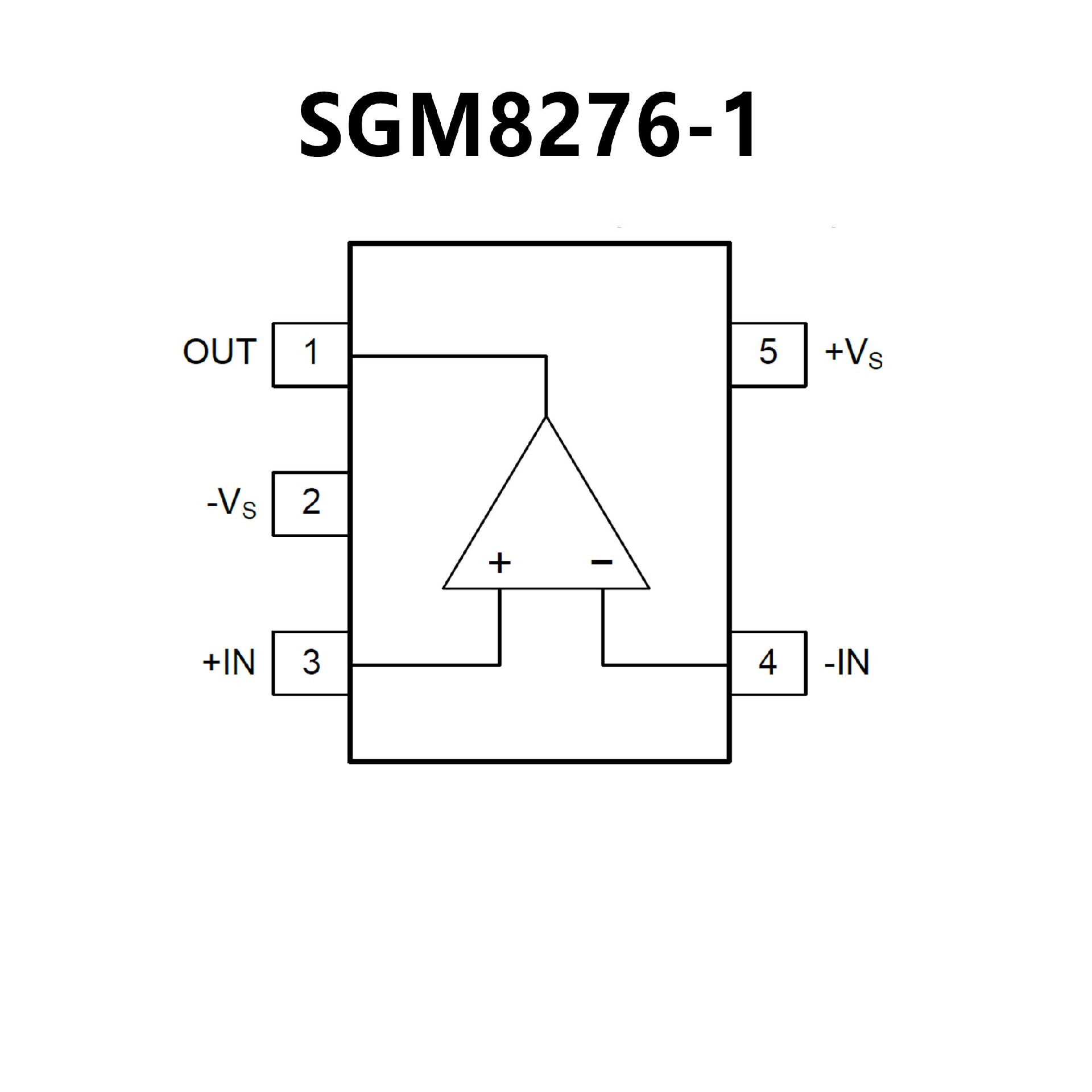

SGM8276-1 Available in a Green SOT-23-5 Package
SGM8276-2 Available in a Green SOIC-8 Package
SGM8276-4 Available in a Green SOIC-14 Package
• 电源范围:+2.7V至+36V，土1.35V至±18V
• 低噪声:14 nV/Hz
• 低偏移漂移:0.3uVI°C(典型值)
• 已过滤的射频干扰(RFI)输入
• 输入范围包括负电源
• 输入范围运行至正电源轨至轨输出
• 增益带宽:3MHz
• 低静态电流:每个放大器475uA高共模抑制:120dB（典型值)
• 低输入偏压电流:8pA
• 行业标准封装:
-8引脚小外形尺寸集成电路(SOIC)封装
- 8引脚微型小外形尺寸(MSOP)封装
-14引脚薄型小外形尺寸(TSSOP)
• 封装微型封装:
-sOT553封装内为单通道
- vssOP-8封装内为双通道
