• Low Noise: 4.5nV/Hz

• Rail-to-Rail Output

• Very Low Offset Voltage: 250μV (MAX)

• Low Bias Current: ±1nA (TYP)

• High Gain-Bandwidth Product: 9MHz

• High Slew Rate: 8V/μs

• High Open-Loop Gain: 130dB at VS = ±15V

• High PSRR: 145dB

• Settling Time to 0.1% with 1V Step: 1μs

• Overload Recovery Time: 10μs

• Operating Voltage Range:

  3.6V to 36V or ±1.8V to ±18V

• Input Common Mode Voltage Range:

  (-VS) + 1.5V to (+VS) - 2V

• Low Supply Current:

  1.5mA/Amplifier (TYP)

• -40℃ to +125℃ Operating Temperature Range

• Small Packaging:

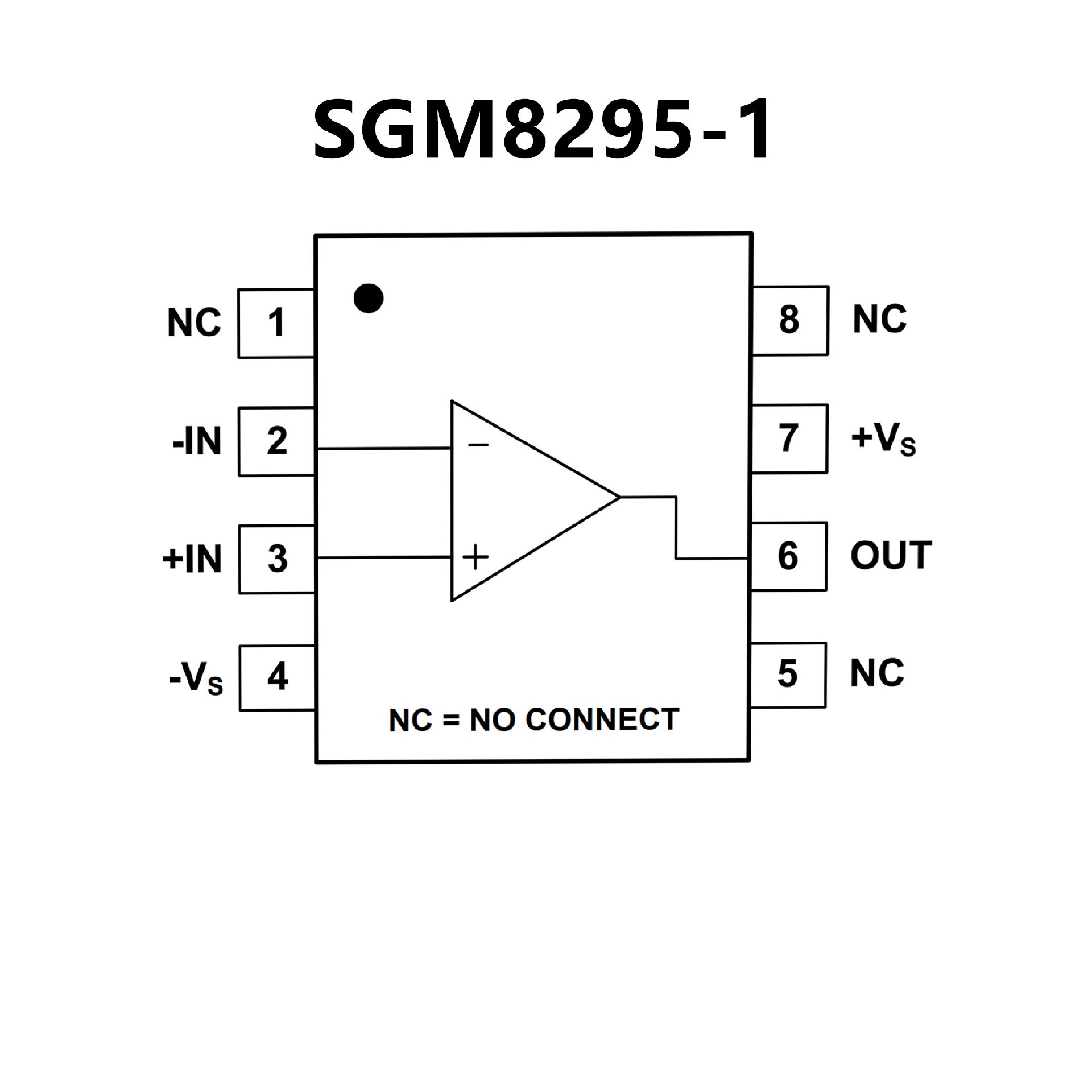

  SGM8295-1 Available in Green SOT-23-5 and

  SOIC-8 Packages

  SGM8295-2 Available in Green SOIC-8 and

  MSOP-8 Packages

  SGM8295-4 Available in a Green SOIC-14 Package
