Micro Power Operational Amplifier, Replace LP2902
SGM8522
SGM8522.pdf
SGM8522.pdfFEATURES
• Low Cost
• Rail-to-Rail Input and Output
0.8mV Typical VOS
• Unity Gain Stable
• Gain Bandwidth Product: 150kHz
• Very Low Input Bias Currents : 0.5pA
• Operates on 2.1V to 5.5V Supplies
• Input Voltage Range = -0.1V to +5.6V with VS = 5.5V
• Low Supply Current: 4.7μA/Amplifier
• Small Packaging
SGM8522 Available in SOIC-8 and MSOP-8

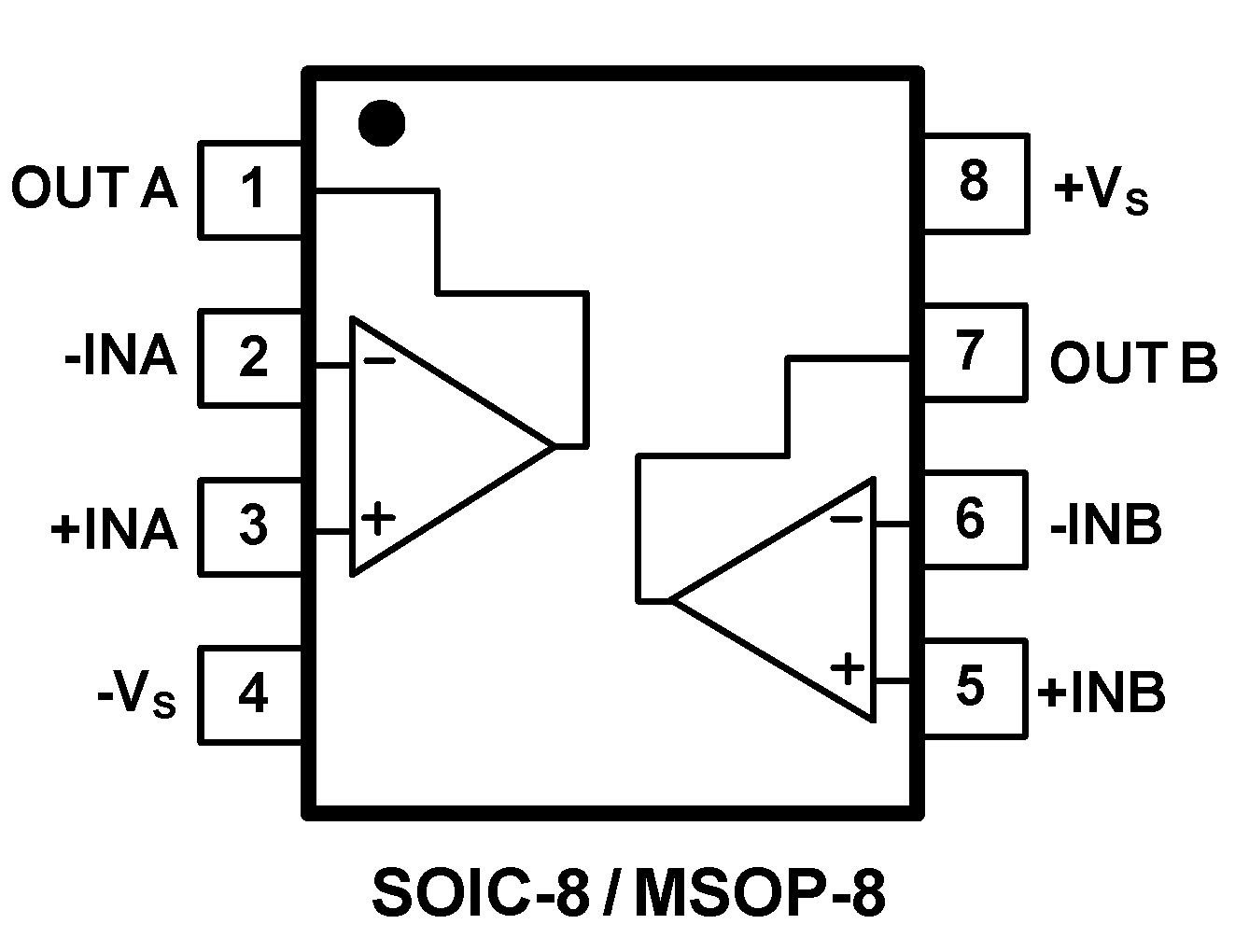

PIN CONFIGUTION
优势替代
FEATURES
• Low Supply Current . . . 85mA Typ
• Low Offset Voltage . . . 2mV Typ
• Low Input Bias Current . . . 2nA Typ
• Input Common Mode to GND
• Wide Supply Voltage . . . 3V < VCC < 32V

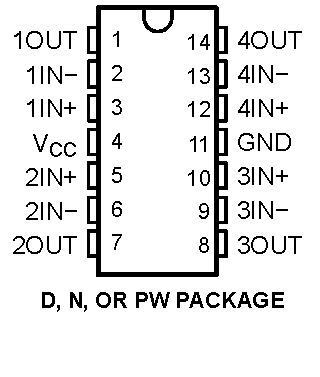

PIN CONFIGUTION
