Micro Power Operational Amplifier, Replace OPA313
SGM8535
SGM8535.pdf
SGM8535.pdfFEATURES
• Rail-to-Rail Output
• Low Input Offset Voltage: 0.6mV (TYP)
• Unity Gain Stable
• Gain Bandwidth Product: 1.5MHz
• Supply Voltage Range: 1.8V to 5.5V
• Low Supply Current
80μA/Amplifier (TYP)
• Small Packaging: SGM8535 Available in SOT-23-5,
SC70-5, SOIC-8 and MSOP-8

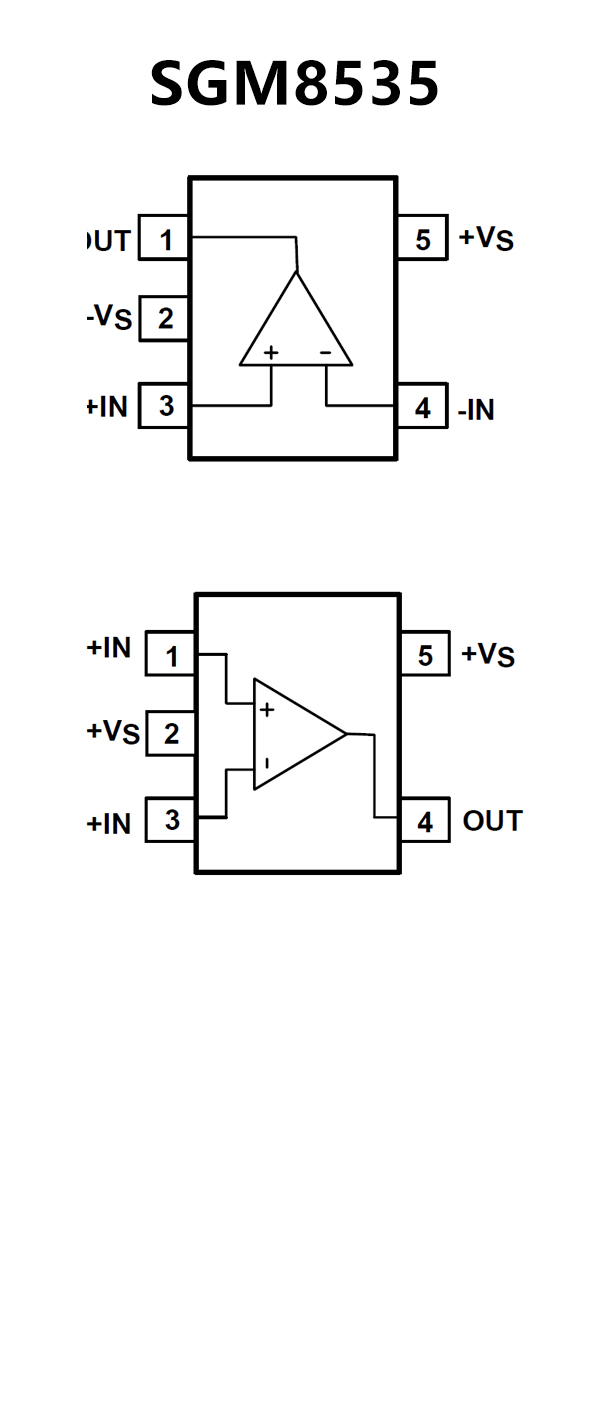

PIN CONFIGUTION
优势替代
FEATURES
• Low IQ: 50 μA/ch
• Wide Supply Range: 1.8 V to 5.5 V
• Low Noise: 25 nV/√Hz at 1 kHz
• Gain Bandwidth: 1 MHz
• Low Input Bias Current: 0.2 pA
• Low Offset Voltage: 0.5 mV
• Unity-Gain Stable
• Internal RF/EMI Filter
• Extended Temperature Range: –40°C to +125°C

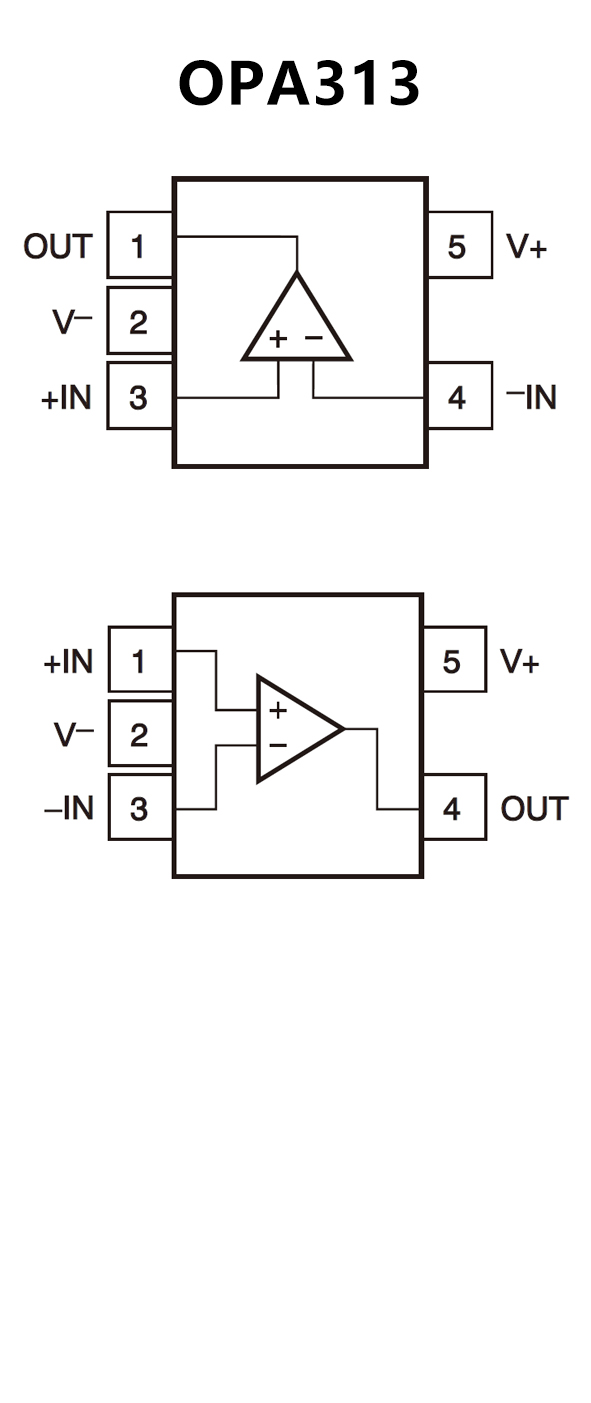

PIN CONFIGUTION
