15MHz, High Output Drive, High Precision,Low Noise Operational Amplifier, SGM8557-2 P2P OPA2335.
SGM8557-2
SGM8557-2.pdf
SGM8557-2.pdfFEATURES
• Output Drive Capability: 235mA
• Low Input Offset Voltage: 5μV (MAX)
• Low Input Offset Voltage Drift: 20nV/℃ (TYP)
• Low Noise: 30nV/√Hz at 1kHz
• Gain-Bandwidth Product: 15MHz
• High Slew Rate: 7V/μs
• High Open-Loop Gain (RL = 2kΩ): 135dB
• Power Supply Rejection Ratio: 121dB
• Over-Temperature Protection
• No Phase Reversal for Overdriven Inputs
• Rail-to-Rail Input and Output
• Supply Voltage Range: 2.7V to 5.5V
• Quiescent Current: 2.4mA (TYP)
• -40℃ to +125℃ Operating Temperature Range
• Available in a Green MSOP-8 Package

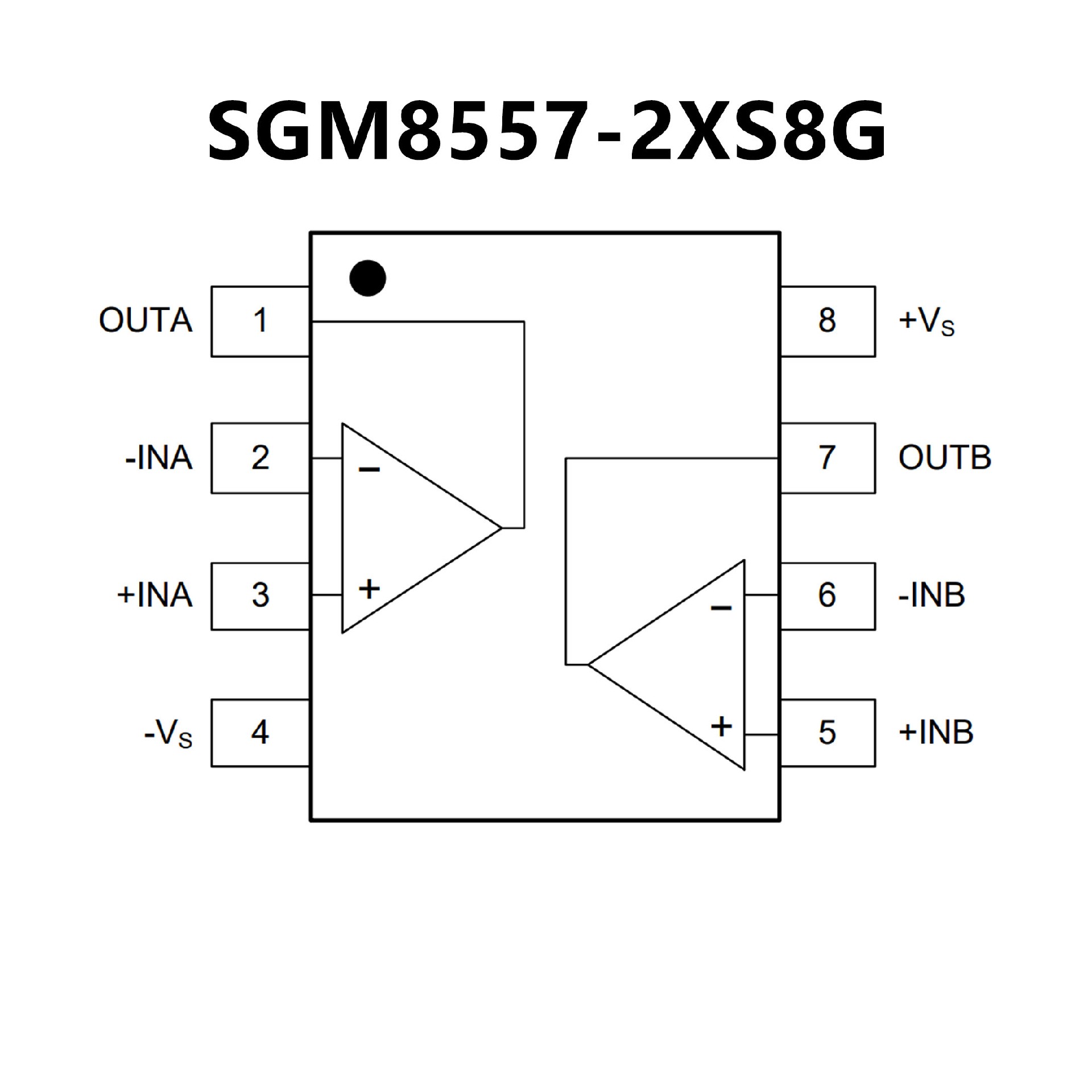

PIN CONFIGUTION
优势替代
FEATURES
• LOW OFFSET VOLTAGE: 5μV (max)
• ZERO DRIFT: 0.05μV/°C (max)
• QUIESCENT CURRENT: 285μA
• SINGLE-SUPPLY OPERATION
• SINGLE AND DUAL VERSIONS
• SHUTDOWN
• MicroSIZE PACKAGES

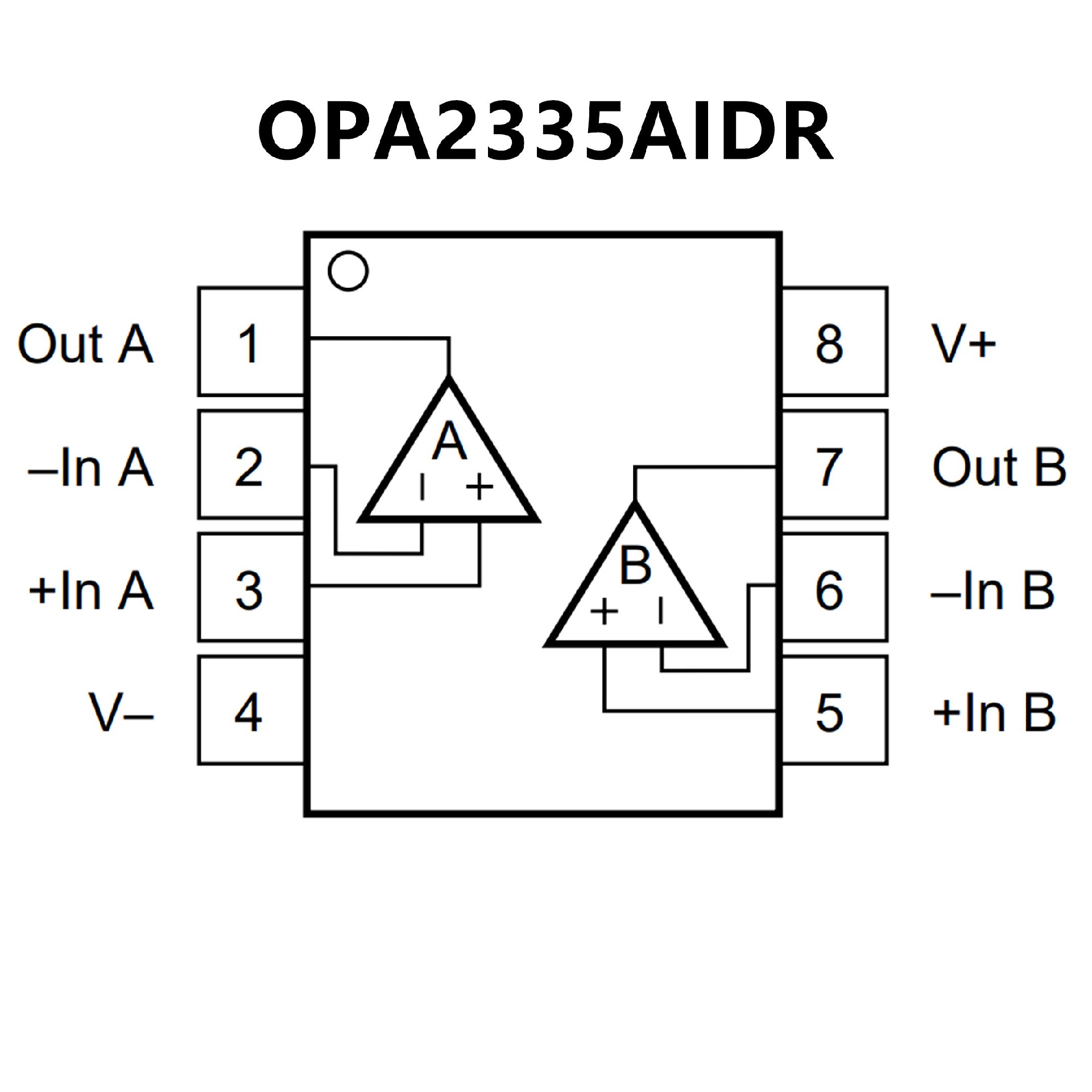

PIN CONFIGUTION
